Ignition Coil: Testing and Inspection

IGNITION COIL

The ignition power transistor functions to control the ignition timing by controlling the ignition coil primary current through signals from the ECU and the ignition coil is of the type of ignition order of (#1/#4), (#21#5), (#3/#6) and is controlled by the power TR built in the ECM.

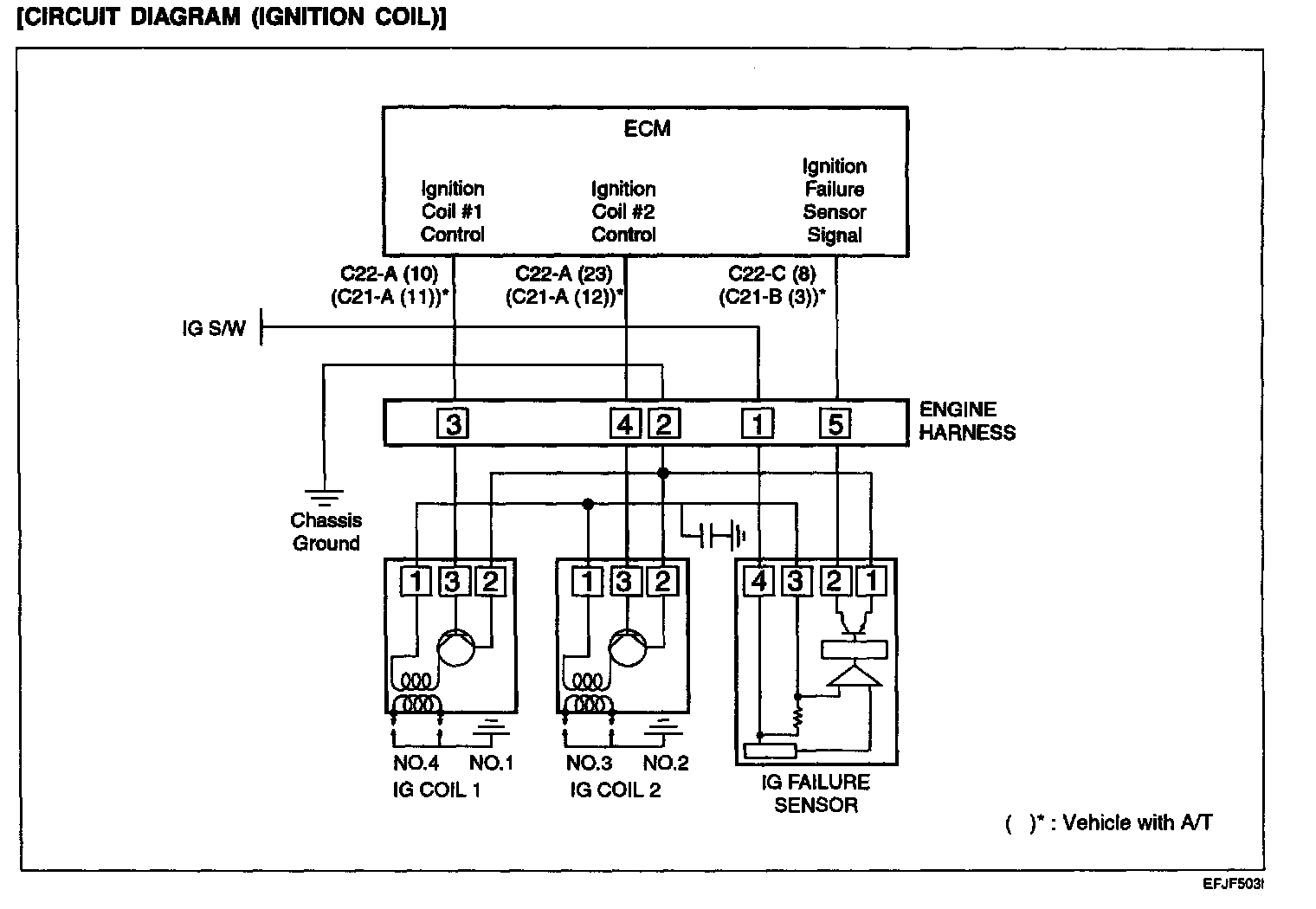

Circuit Diagram (Ignition Coil):

CIRCUIT DIAGRAM (IGNITION COIL)

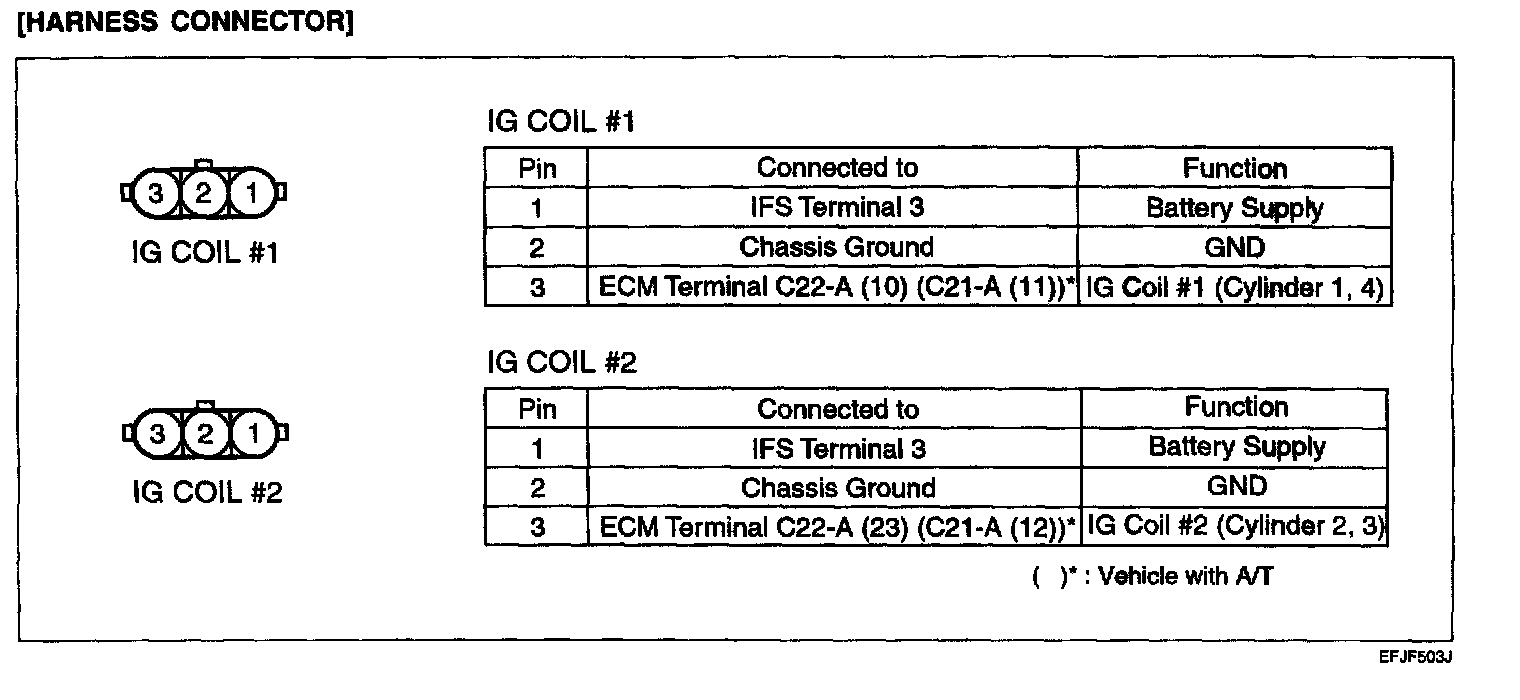

Harness Connector:

HARNESS CONNECTOR
