Immobilizer Control System: Components

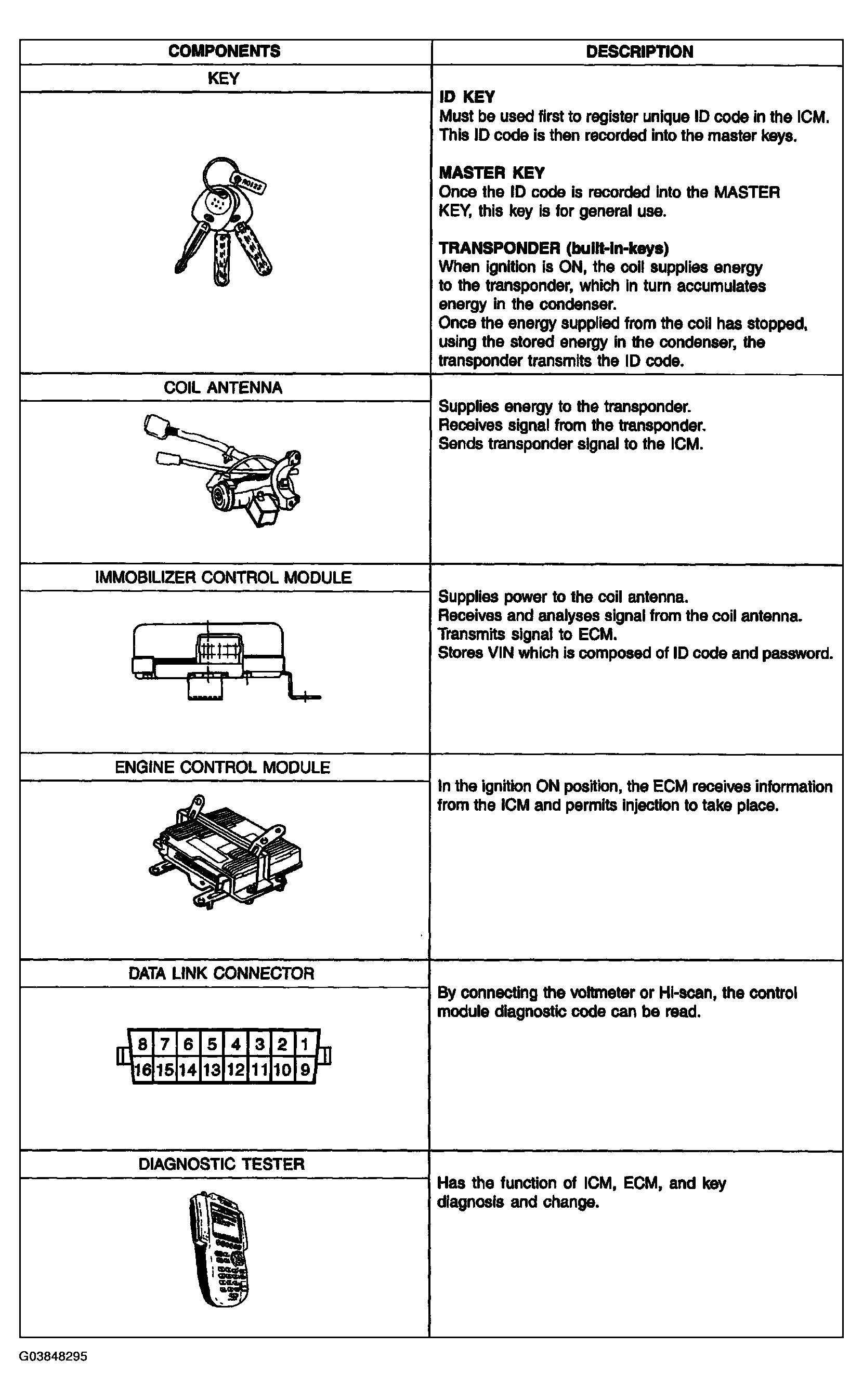

Fig 1: Identifying Immobilizer Control System Components
G03848295Courtesy of HYUNDAI MOTOR CO.
