Steering/Suspension - Alignment Specifications

Group: CHASSIS

Number: 04-50-013

Date: DECEMBER, 2004

Model: ALL 2005 MODELS

Subject
WHEEL ALIGNMENT SPECIFICATIONS

DESCRIPTION:

The table lists the 2005 model year vehicle wheel alignment specifications.

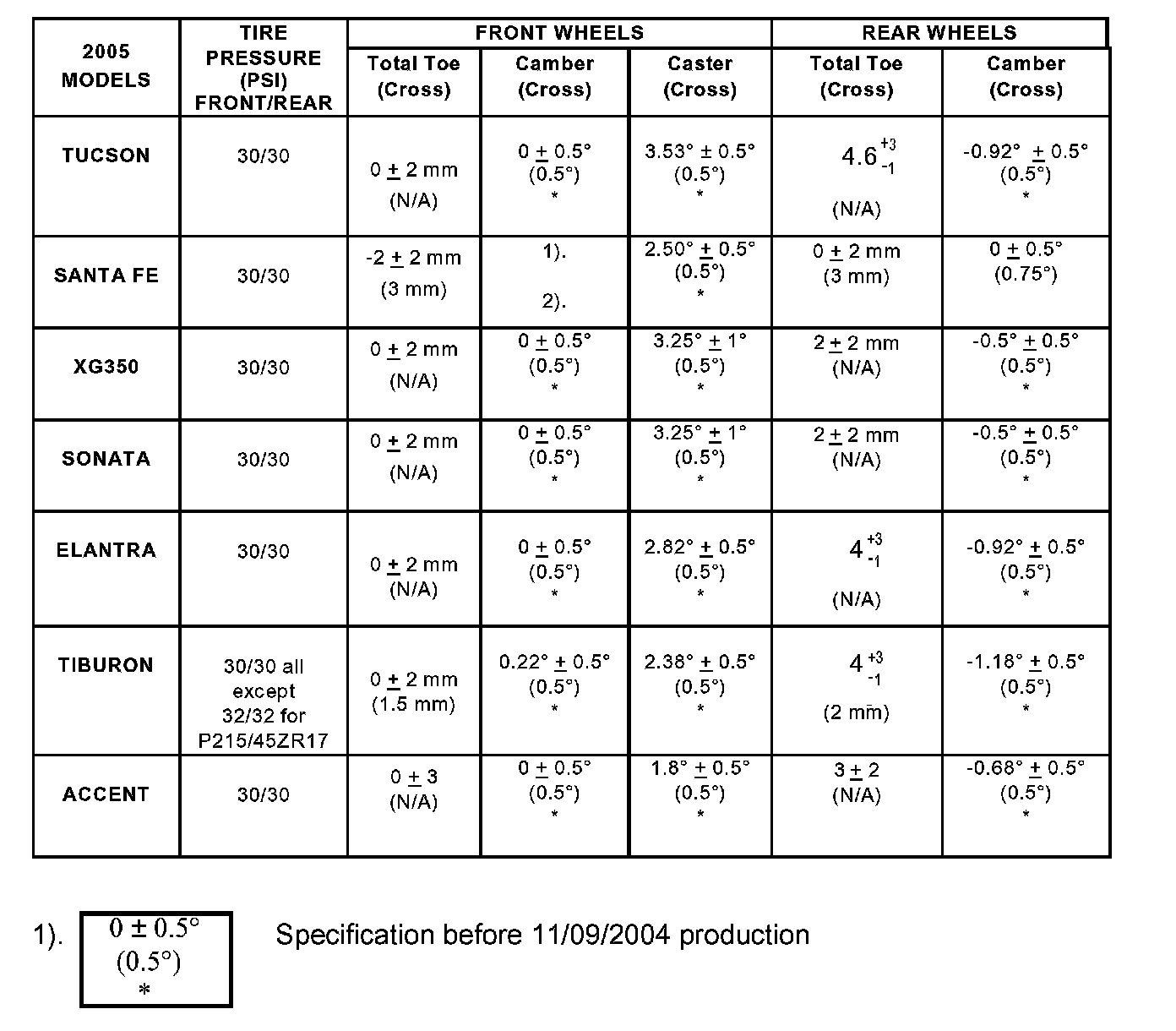

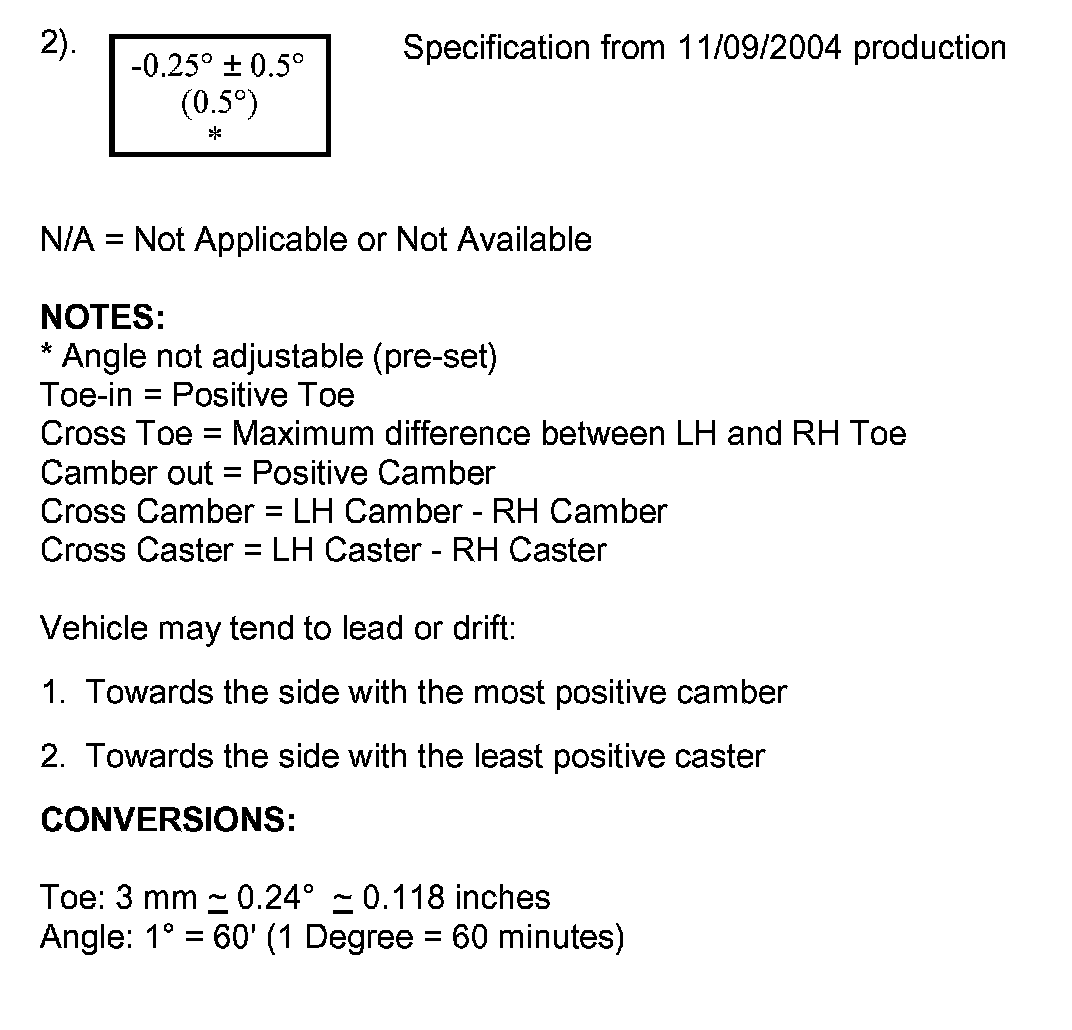

2005 MODEL YEAR ALIGNMENT SPECIFICATIONS CHART:
