Circuit Diagrams

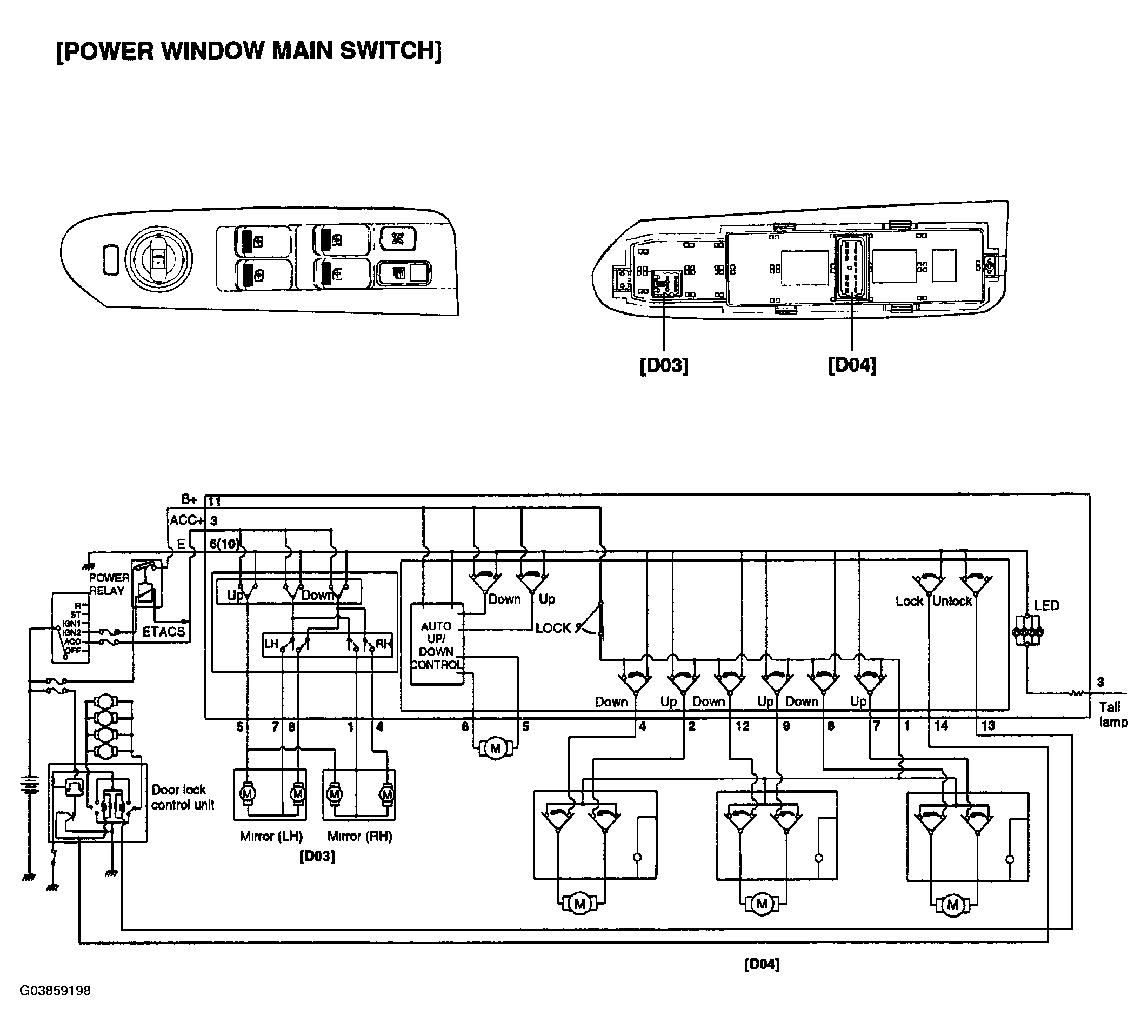

Fig 1: Power Window Main Switch - Circuit Diagram
G03859198Courtesy of HYUNDAI MOTOR CO.

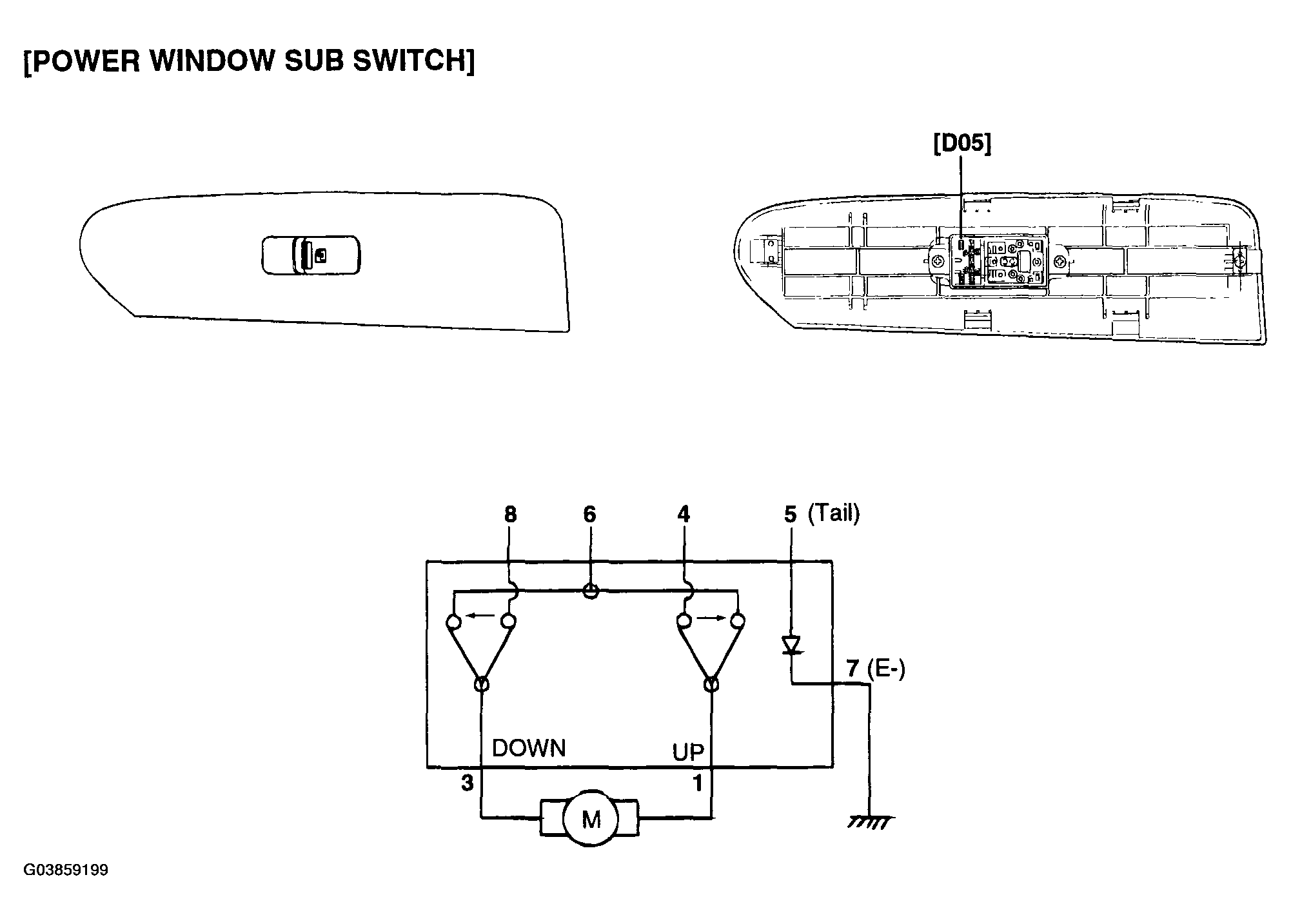

Fig 2: Power Window Sub-Switch - Circuit Diagram
G03859199Courtesy of HYUNDAI MOTOR CO.
