Charging System: Generator: Components: DOHC

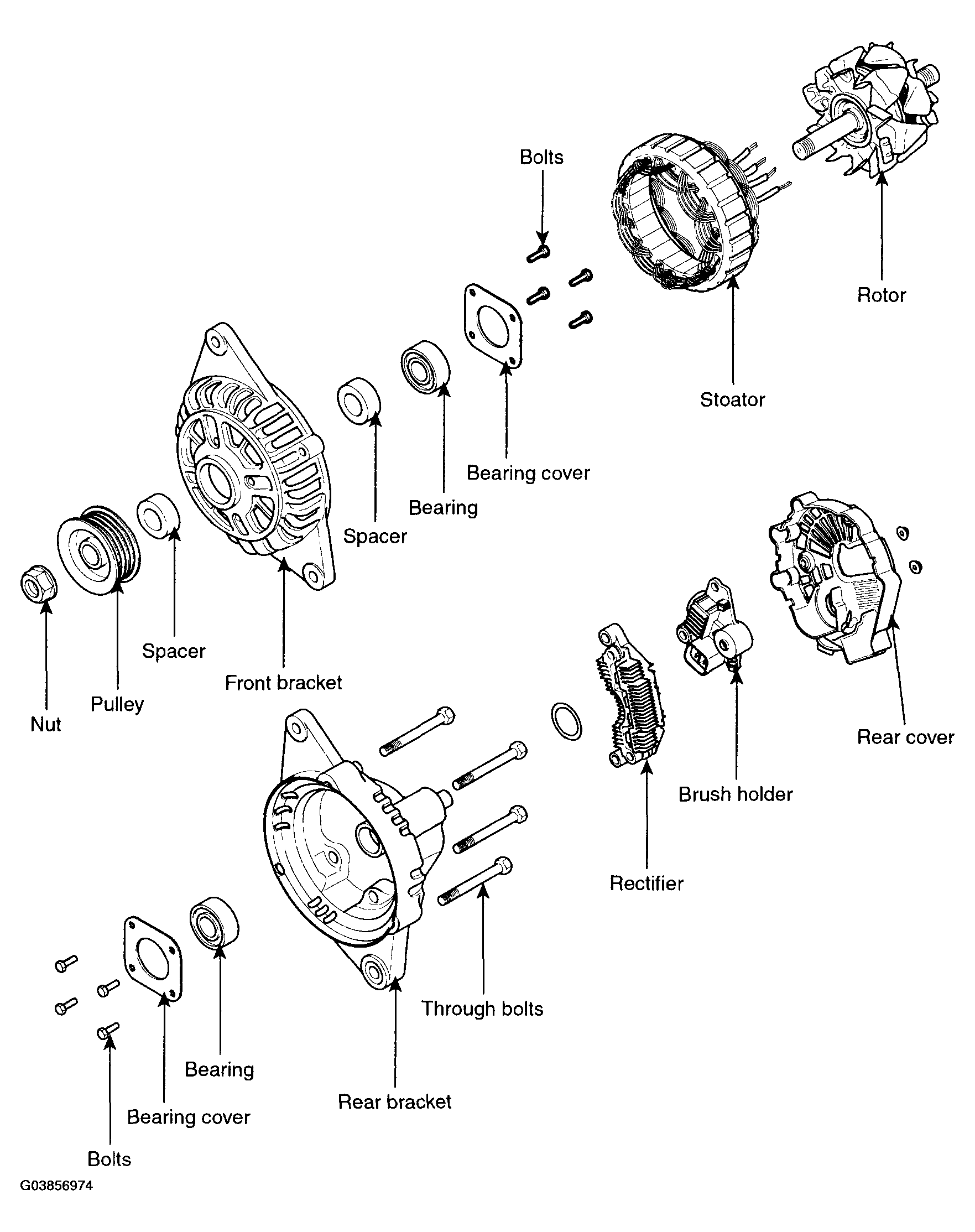

Fig 1: Identifying Generator Components (DOHC Engine)
G03856974Courtesy of HYUNDAI MOTOR CO.
