Charging System: Generator: Replacement

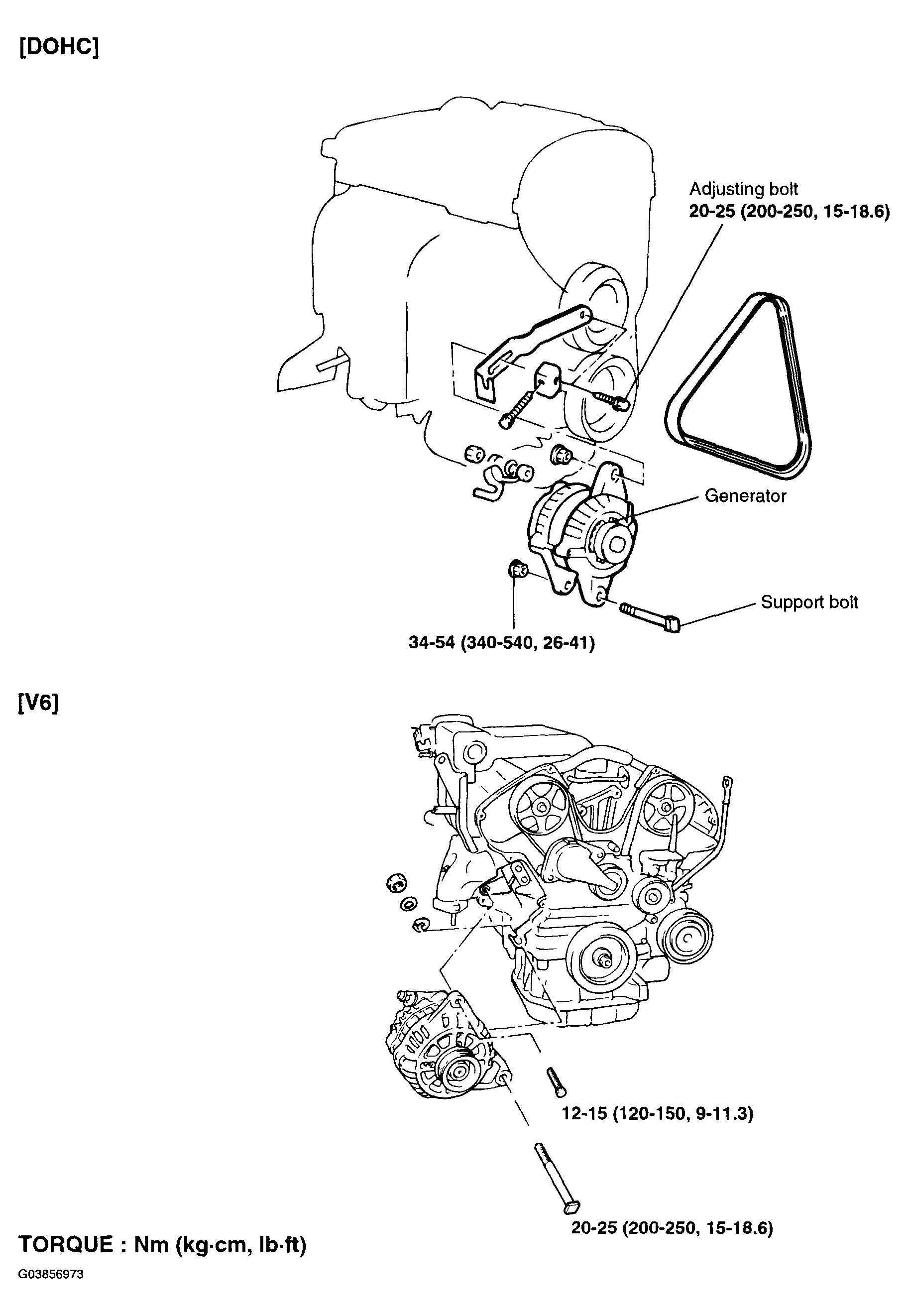

Fig 1: Replacing Generator (DOHC And V6 Engines)
G03856973Courtesy of HYUNDAI MOTOR CO.
