Starting System: Starter: Components

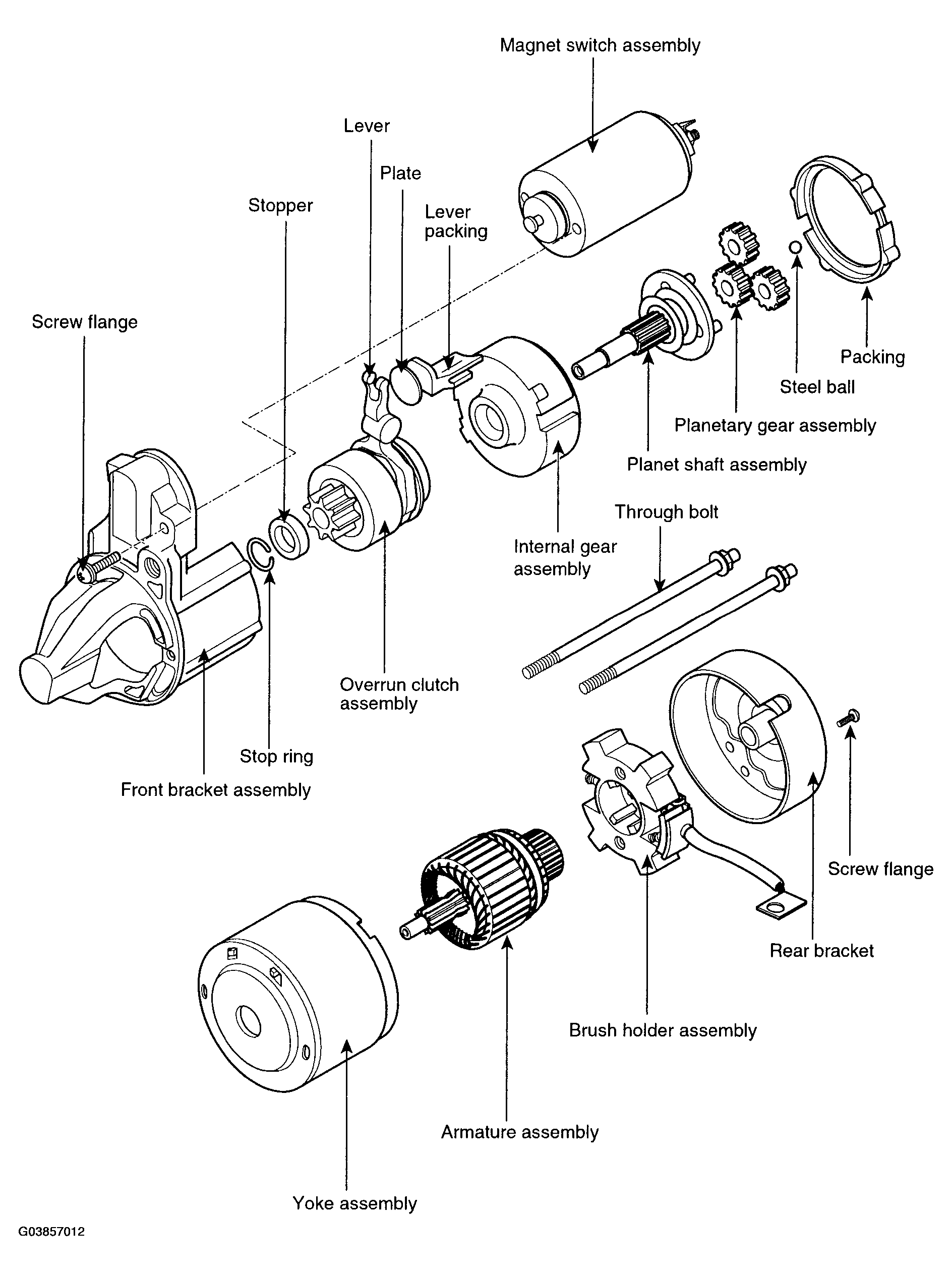

Fig 1: Identifying Starter Components
G03857012Courtesy of HYUNDAI MOTOR CO.
