Crankcase Emission Control System: Components

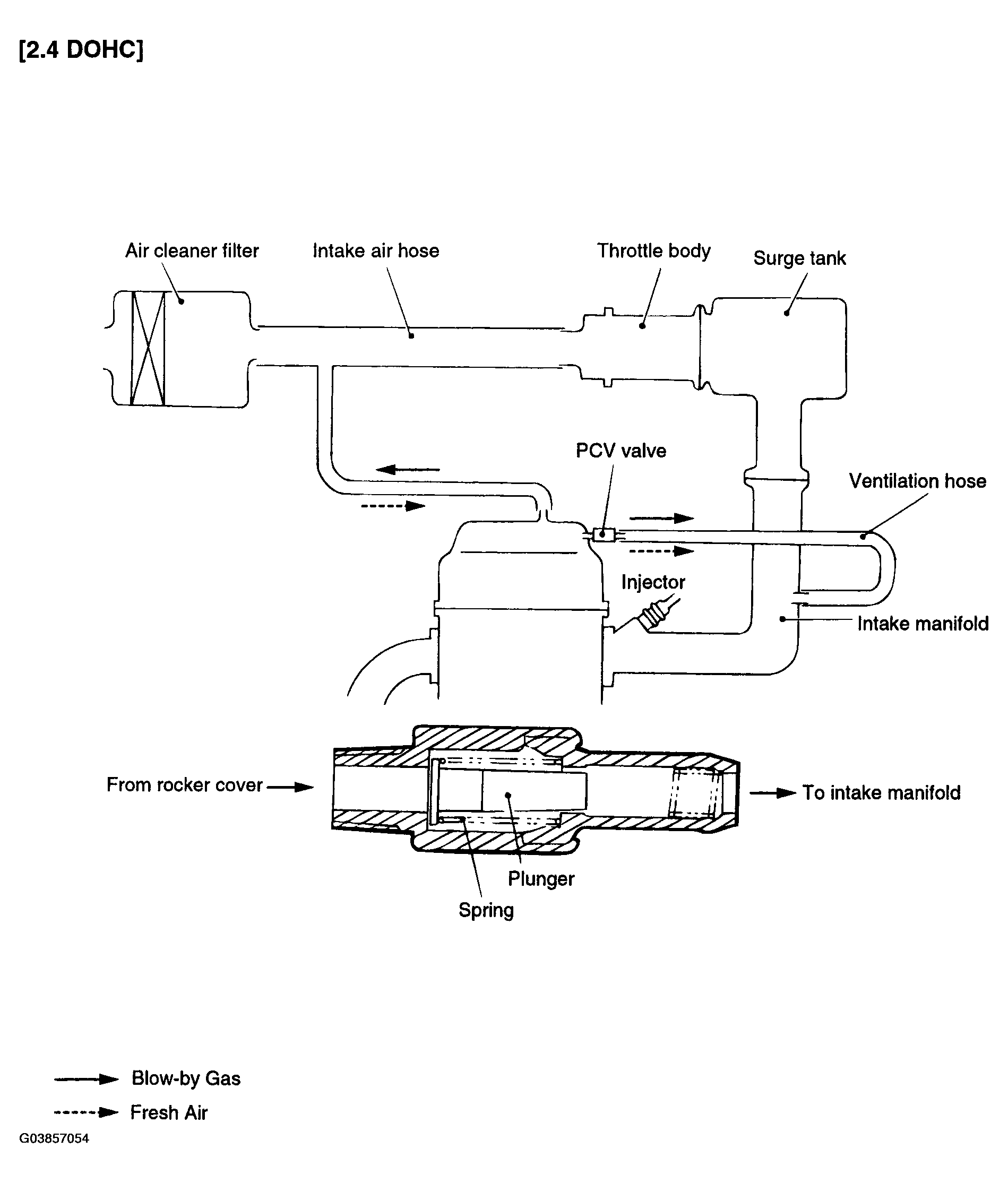

Fig 1: Identifying Crankcase Emission Control System Components (2.4L DOHC)
G03857054Courtesy of HYUNDAI MOTOR CO.

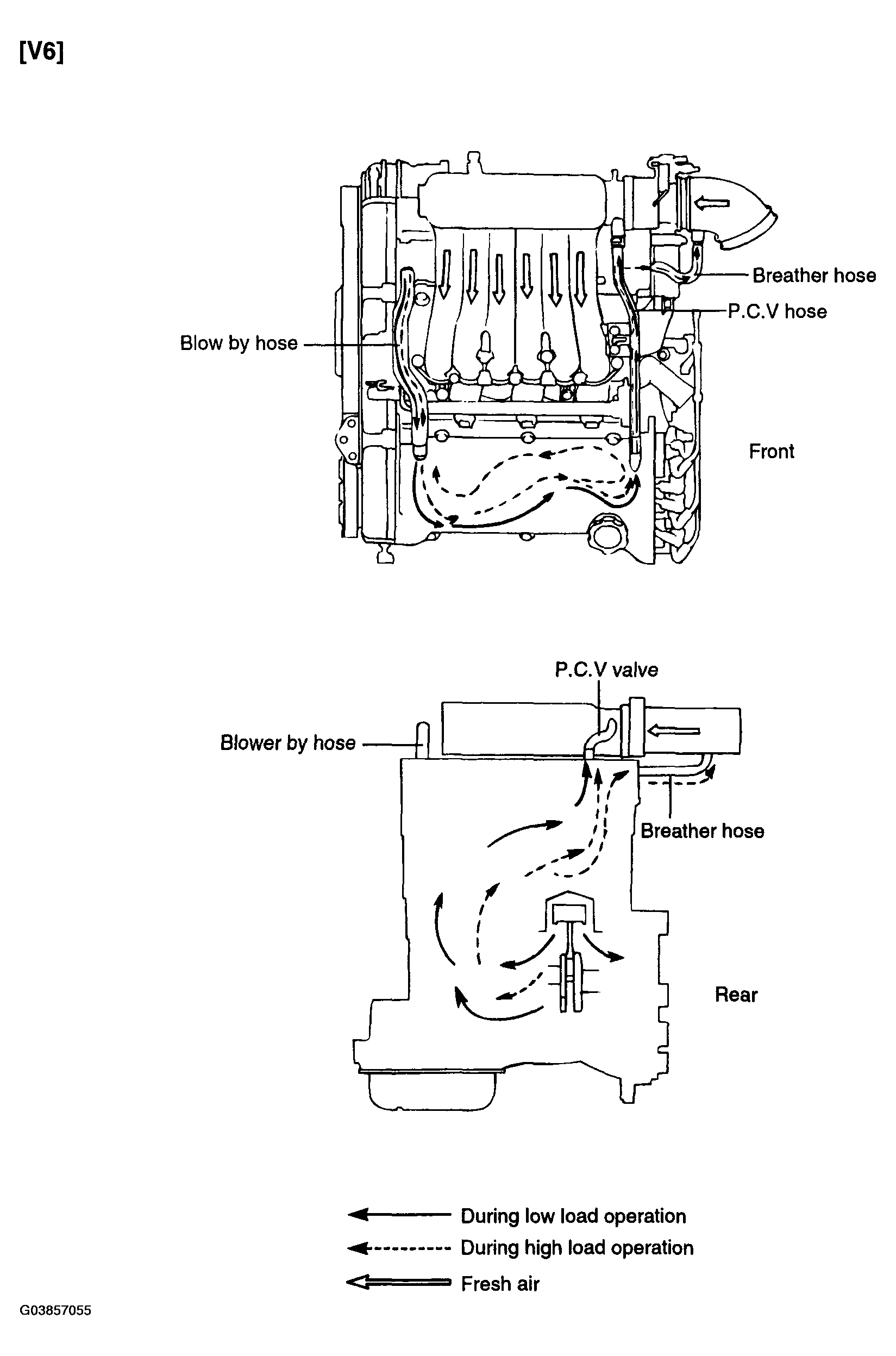

Fig 1: Identifying Crankcase Emission Control System Components (V6)
G03857055Courtesy of HYUNDAI MOTOR CO.
