Alarm Module, (Vehicle Antitheft)

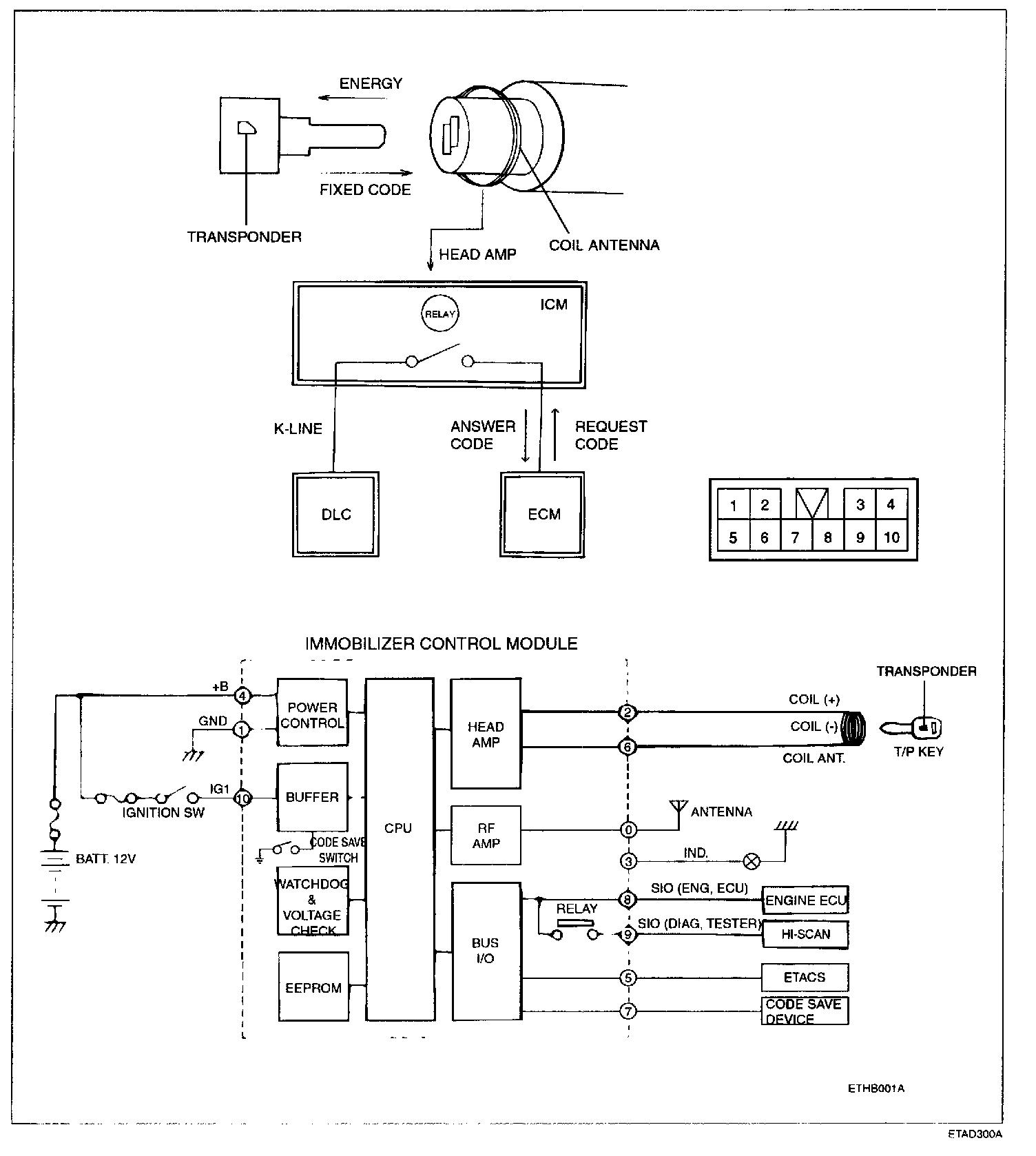

Immobilizer Control Module - System Block Diagram:



Pin Connection:
