ETACS Module Input Signal Test - 1

ETACS MODULE INPUT SIGNAL TEST

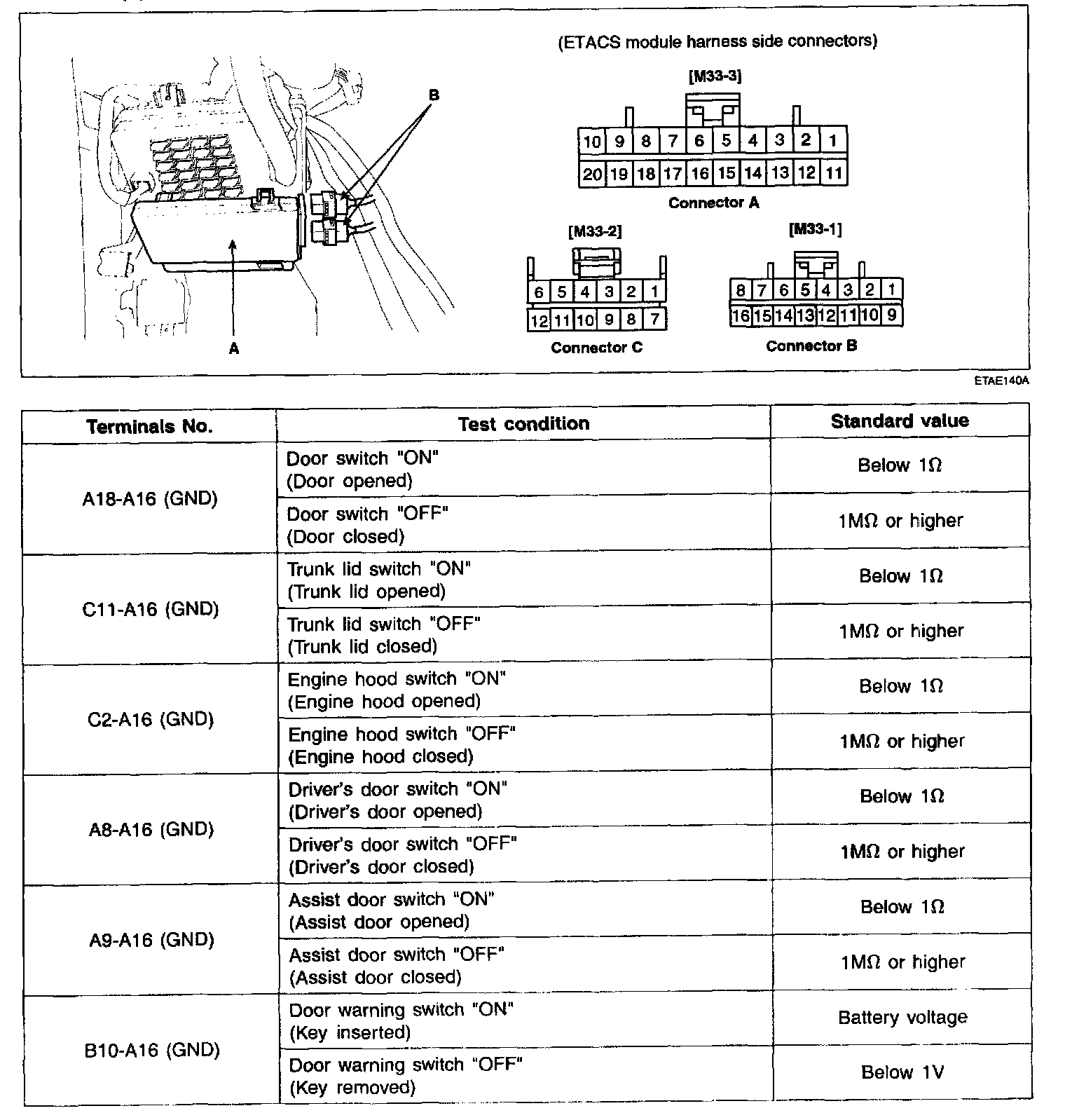

1. Disconnect the wire connectors(B) from the ETACS module(A).

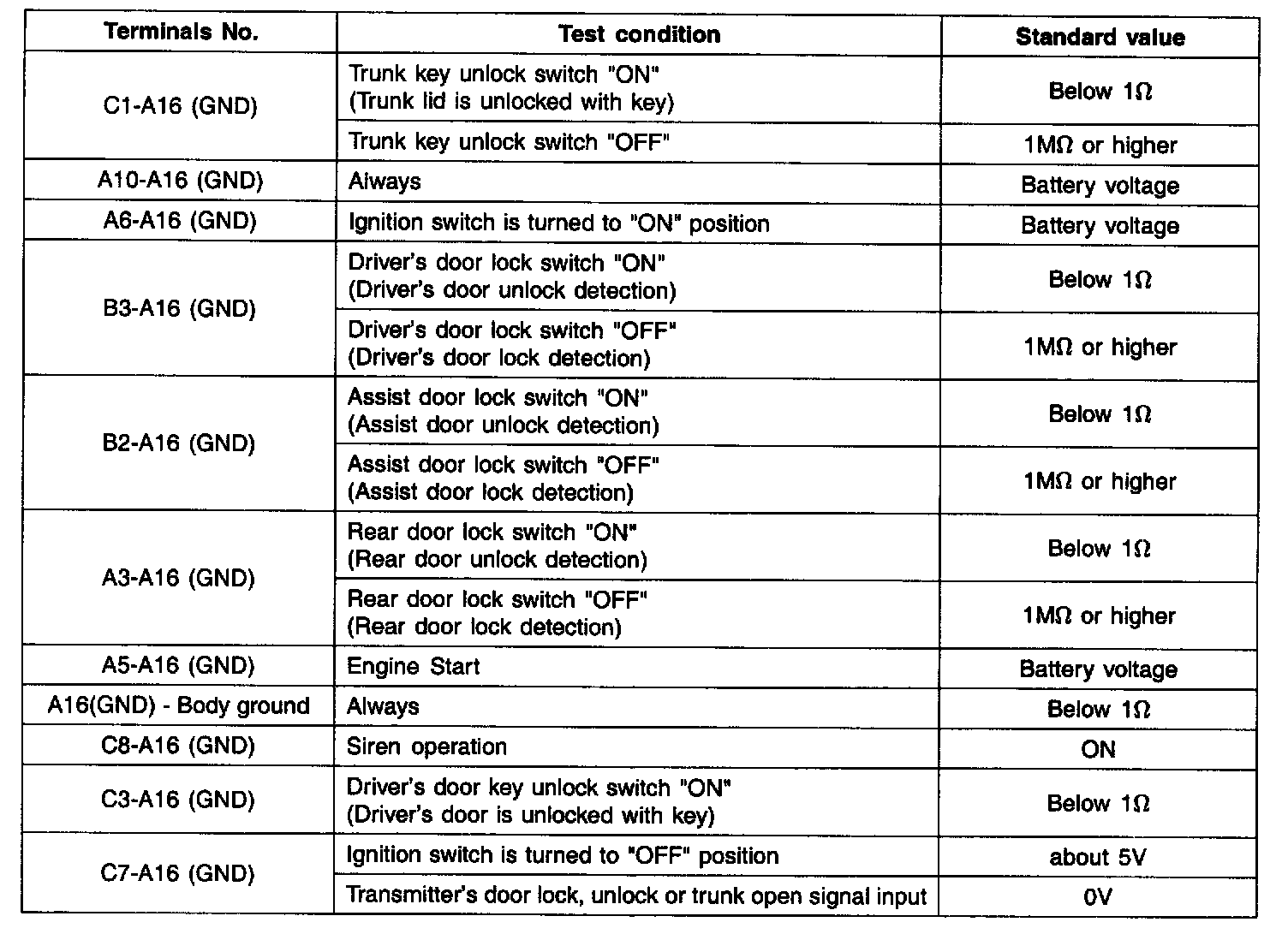

2. Inspect the connectors(B) on wire harness side as shown in the below.
