Front Seat: Components

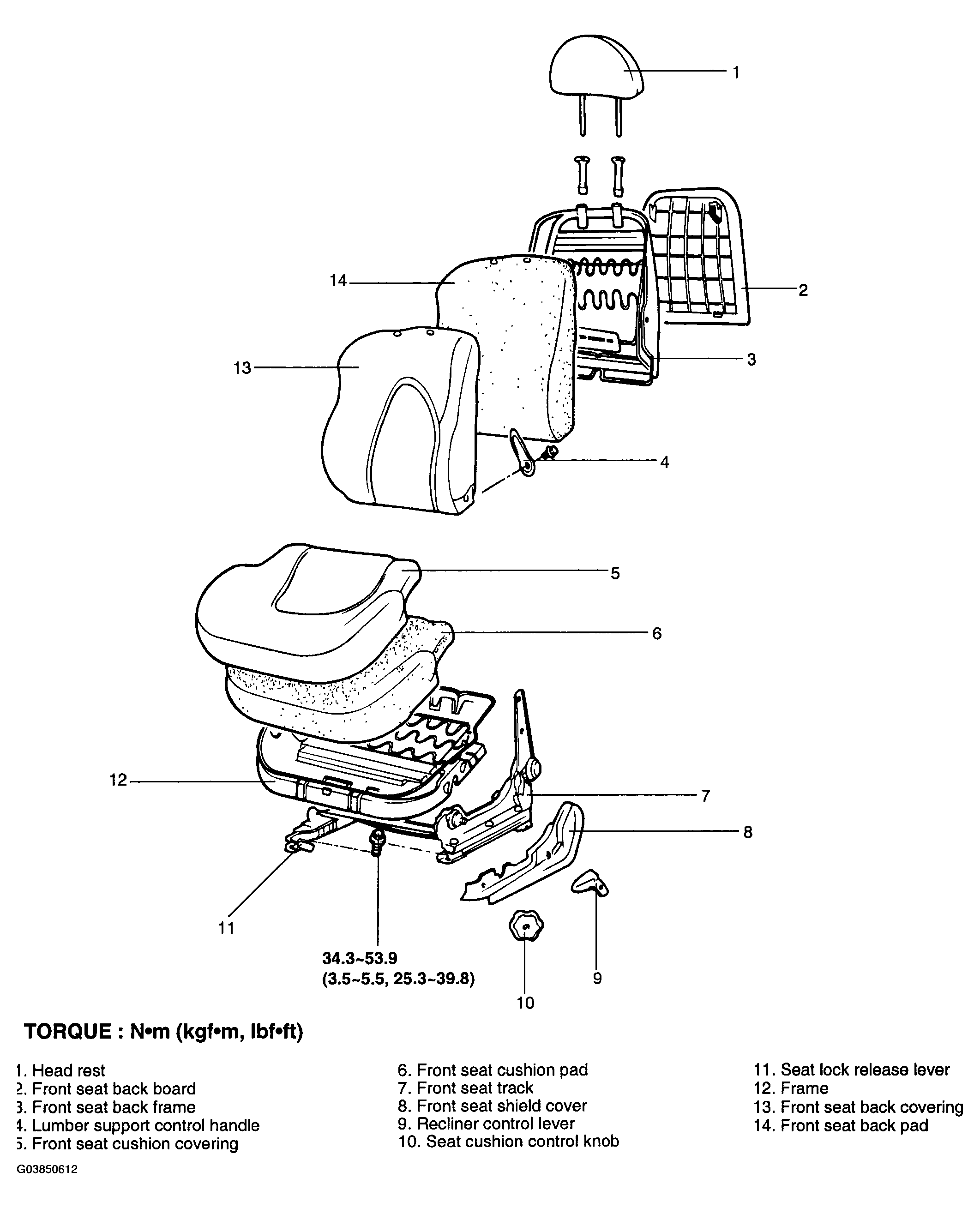

Fig 1: Front Seat Replacement Components With Torque Specifications

G03850612

Courtesy of HYUNDAI MOTOR CO.
