Anti-Lock Braking System Wheel Speed Sensor: Components

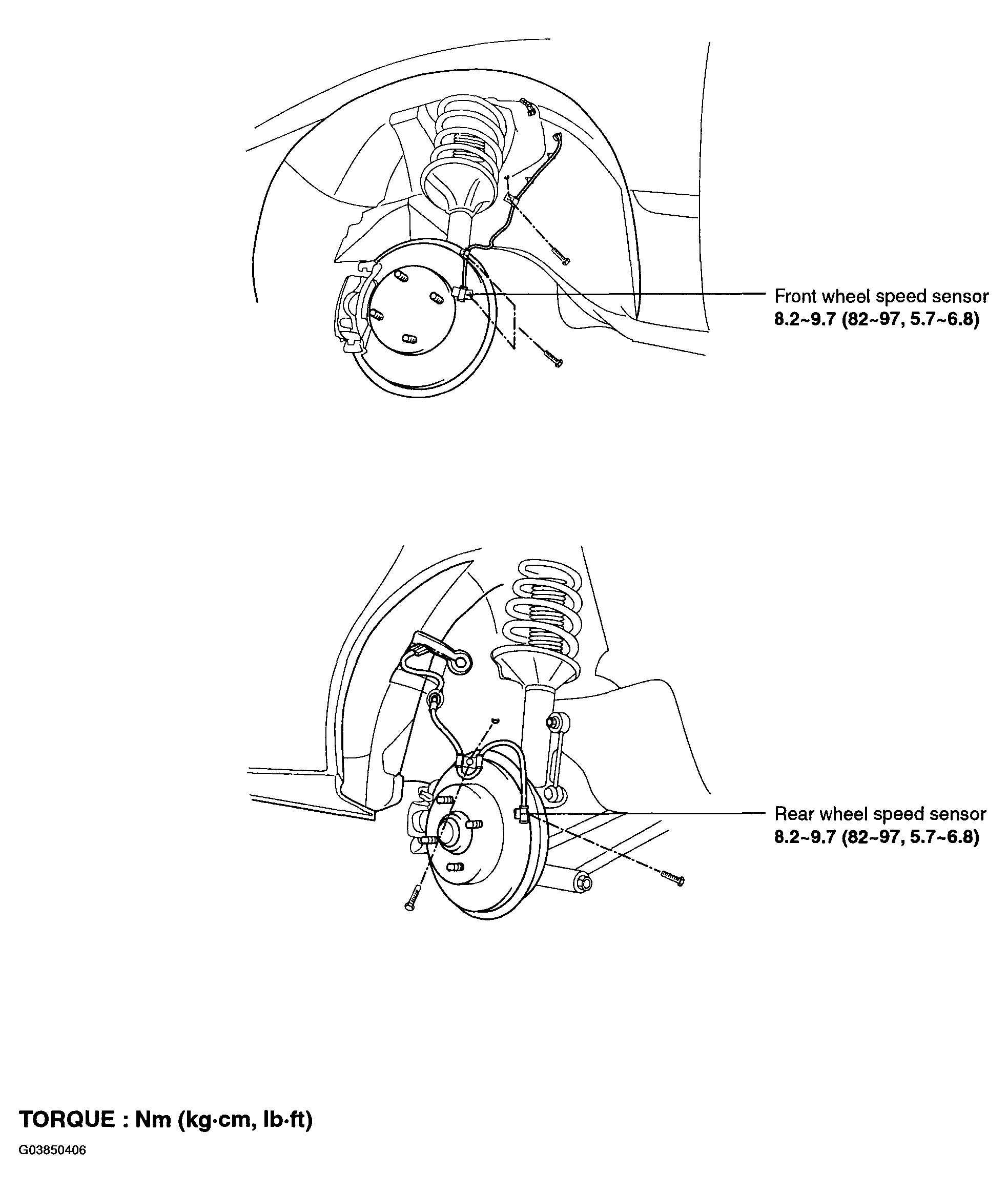

Fig 1: Anti-Lock Braking System Wheel Speed Sensor Component With Torque Specs.
G03850406Courtesy of HYUNDAI MOTOR CO.
