Master Cylinder Pressure Sensor
>>
Output Characteristic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Output Characteristic

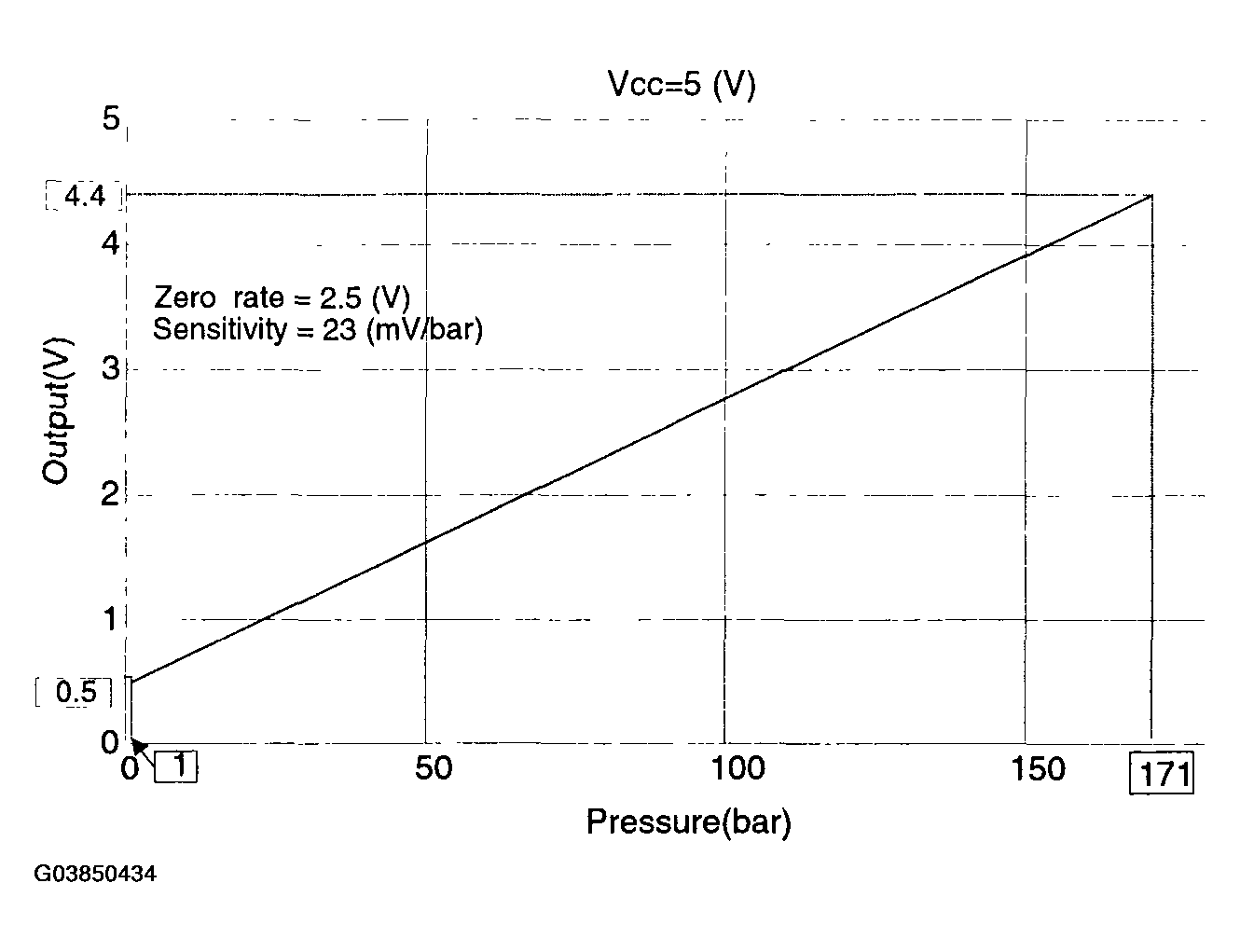

Fig 1: Identifying Output Characteristic Graph
Courtesy of HYUNDAI MOTOR CO.
