Oil Pan, Engine

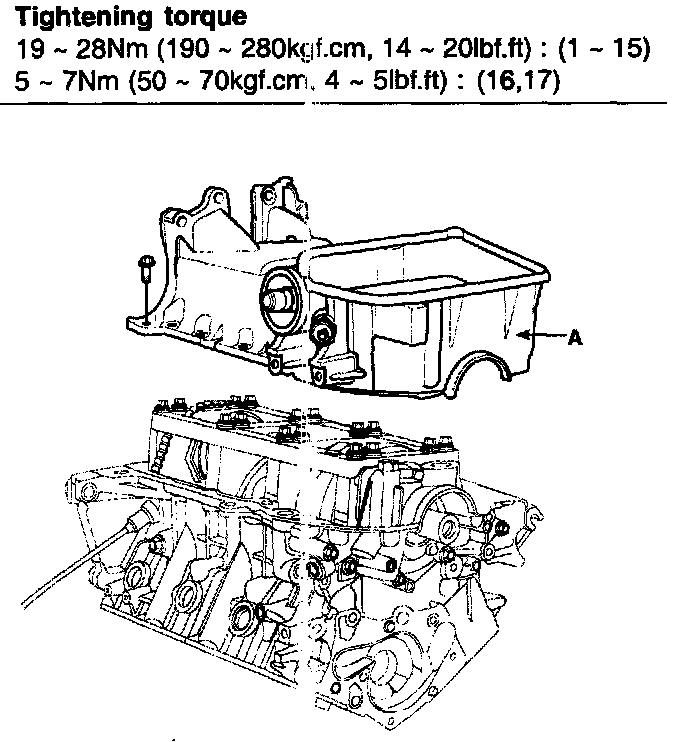

Install the oil pan (A) with the 17 bolts. Uniformly tighten the bolts in several passes.





Install the lower oil pan 1O bolts.
Uniformly tighten the bolts several passes
Tightening torque 10 - 12 Nm (100 - 120 kgf-cm, 7.3 - 8.8 ft. lbs.)
