Transfer Case: Installation

  1. Remove the filler plug (A).

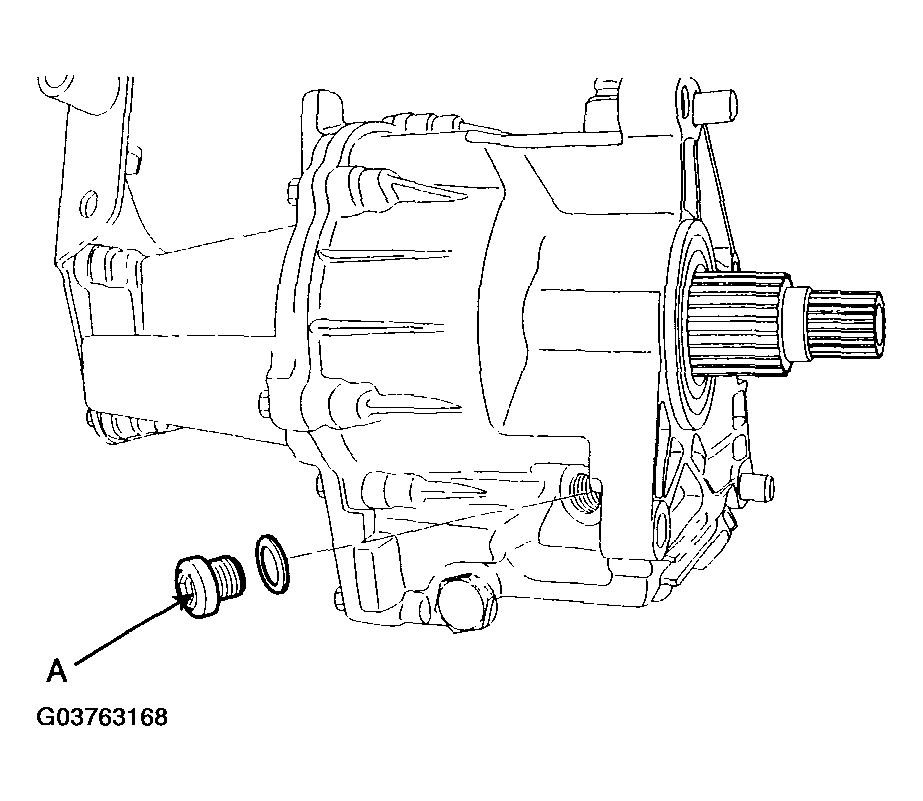

    Fig 1: Removing Filler Plug
    G03763168Courtesy of HYUNDAI MOTOR CO.
  2. Refill the specification to the specified quantity.

    Specification: SAE 80w/90

    Quantity: 0.8L

  3. Fix it in proper position with mounting bolts.
