N Position

Hydraulic pressure is applied to the LR brake (A) and the RED brake, so power is not transmitted from the input shaft to the UD clutch or OD clutch.

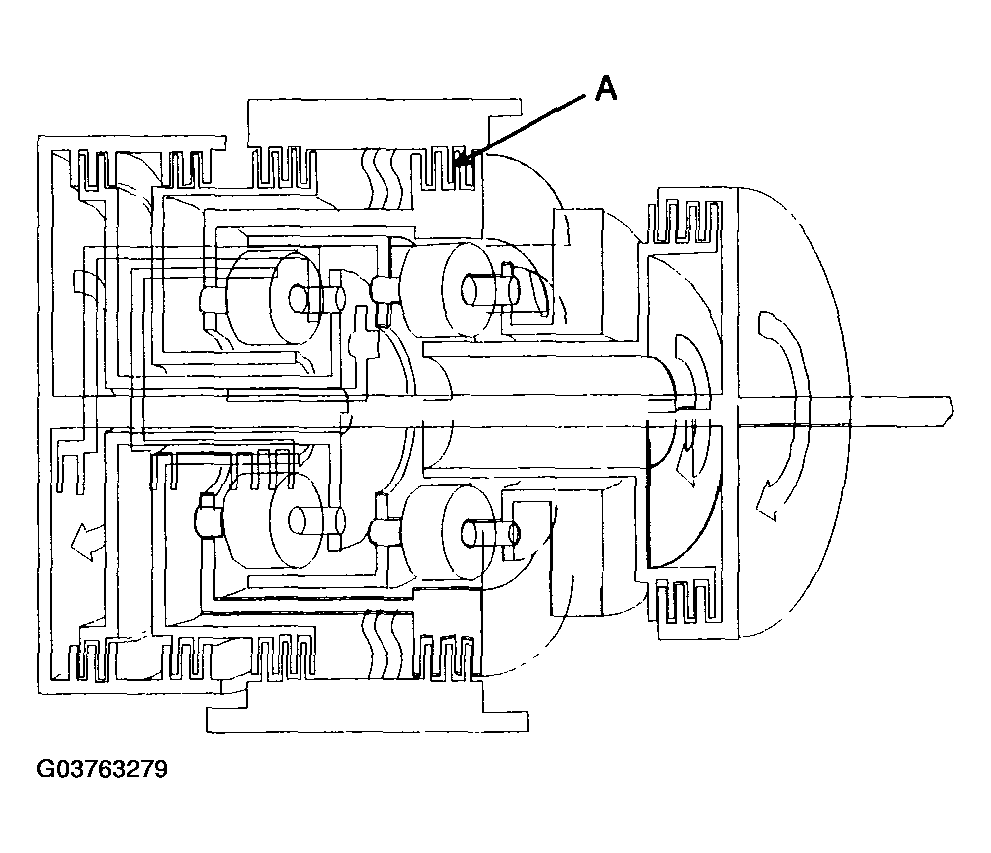

Fig 1: Locating LR Brake

Courtesy of HYUNDAI MOTOR CO.
