Evaporative Emission Control System: Components: Notes

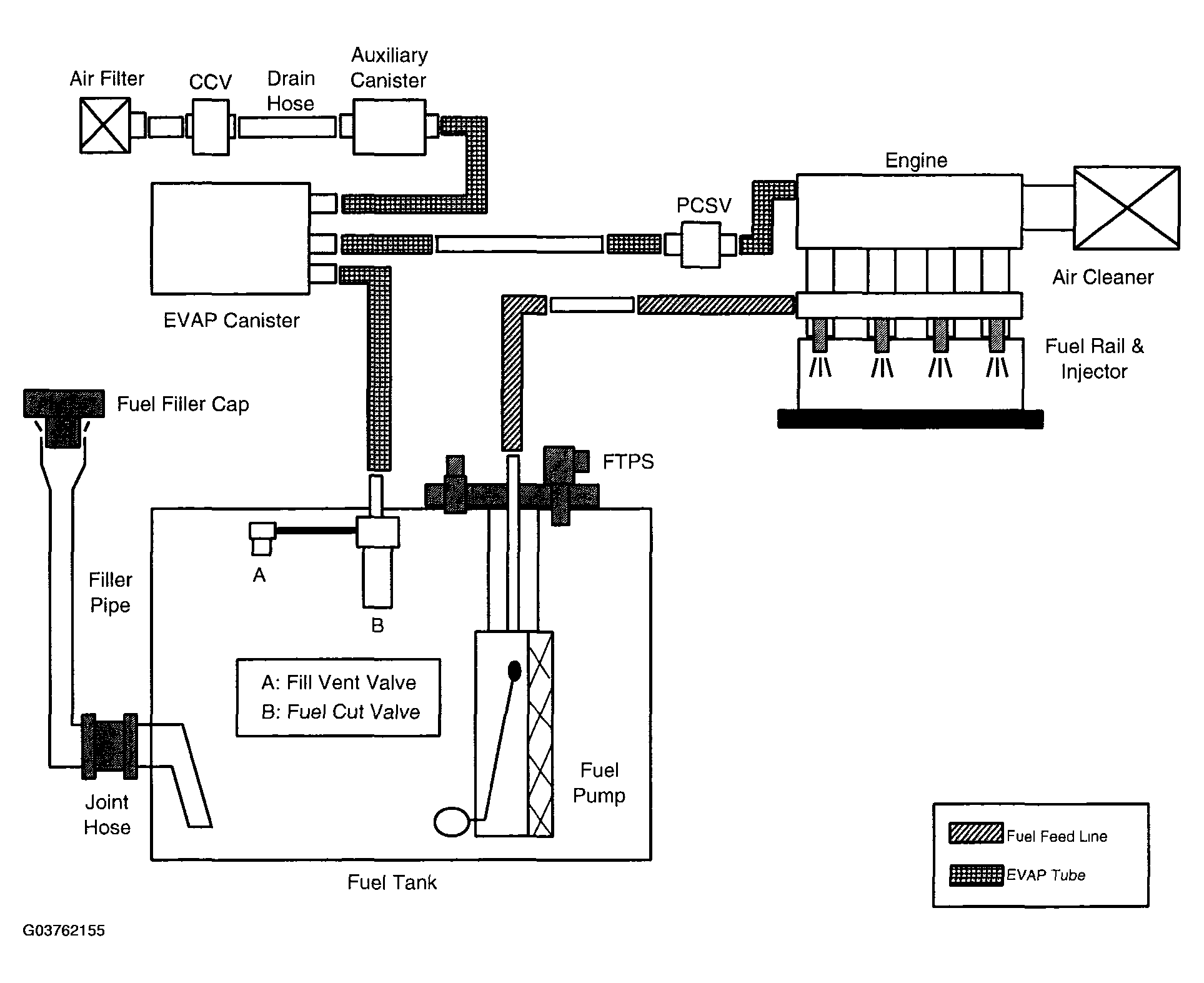

Fig 1: Identifying Evaporative Emission Control System Components
G03762155Courtesy of HYUNDAI MOTOR CO.
