Diagnosis Flow

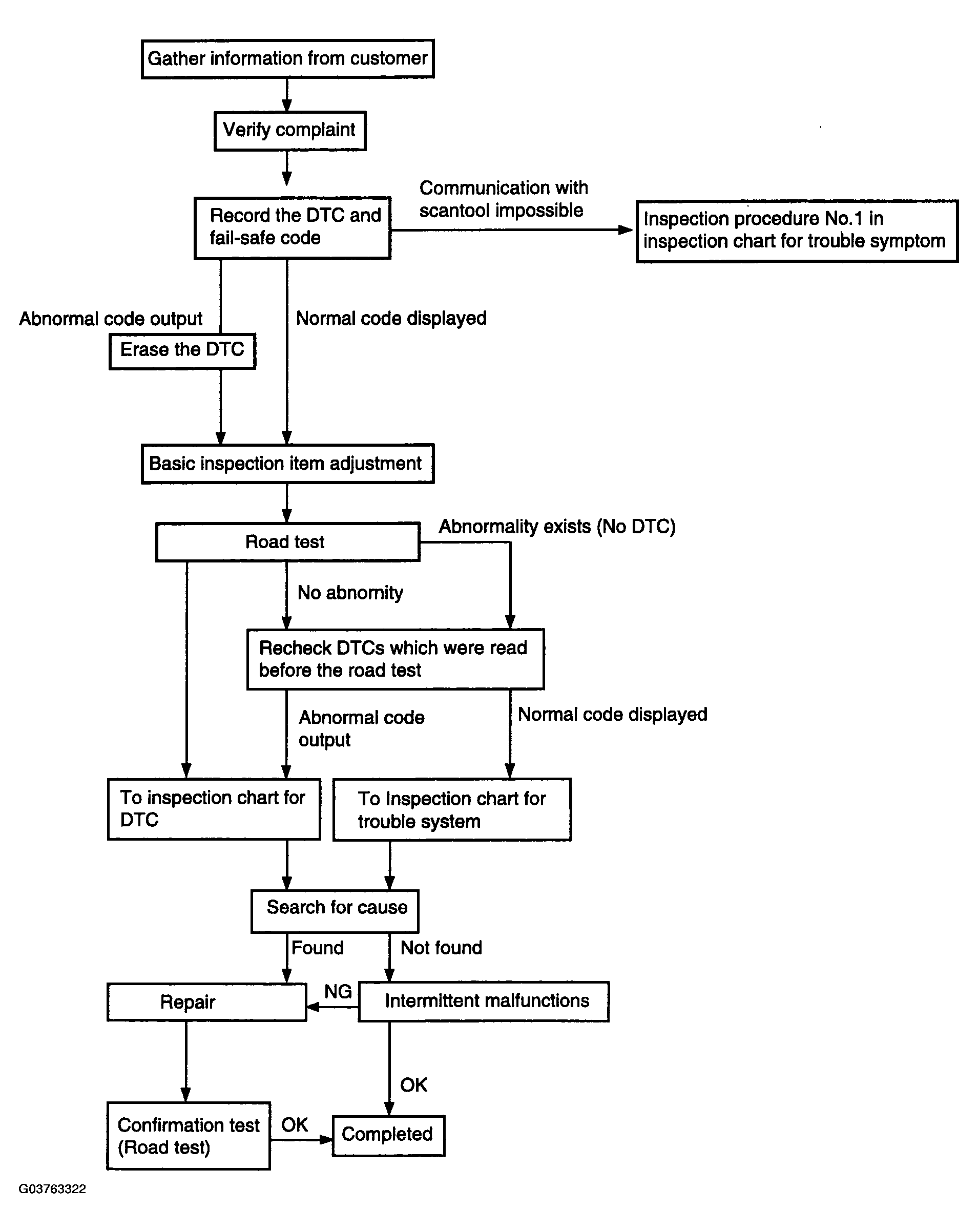

Fig 1: Troubleshooting Diagnosis Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
