Front Door Window Regulator: Service and Repair

DOOR MODULE REPLACEMENT

NOTE: Put on gloves to protect your hands.

1. Remove the front door trim.
2. Remove the glass.

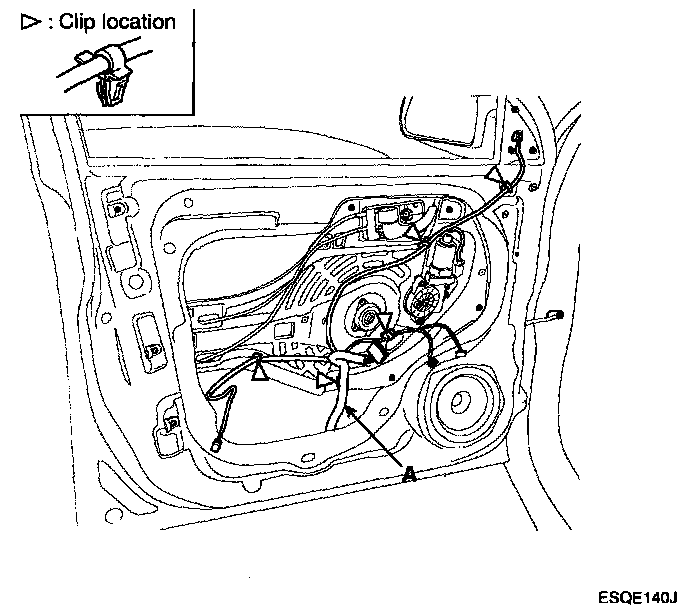

3. Disconnect the wiring harness (A).

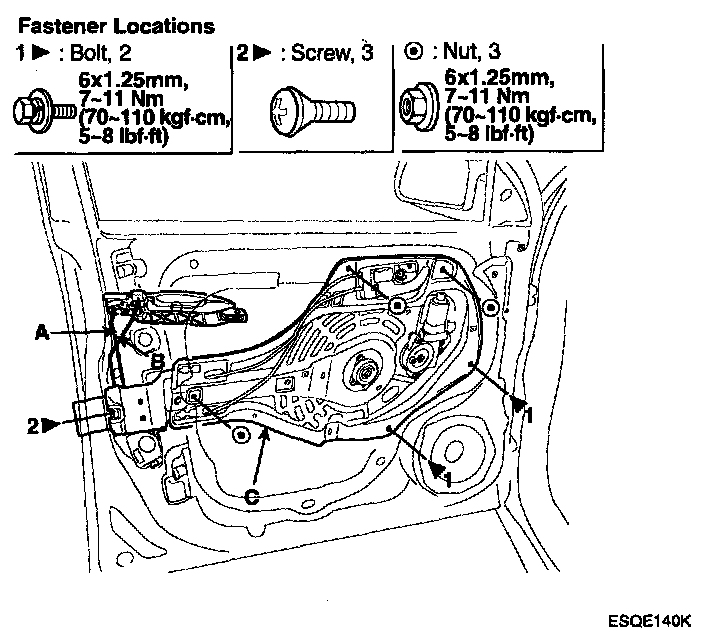

4. Disconnect the lock rod (A) and outside handle rod (B).
5. Remove the door module (C).






6. Installation is the reverse or removal.

NOTE:
- Make sure the connectors is plugged in properly and each cable is connected securely.
- Make sure the door locks and opens properly.
- Roll the glass and down to see if it moves freely without binding.
