Tightening Torque

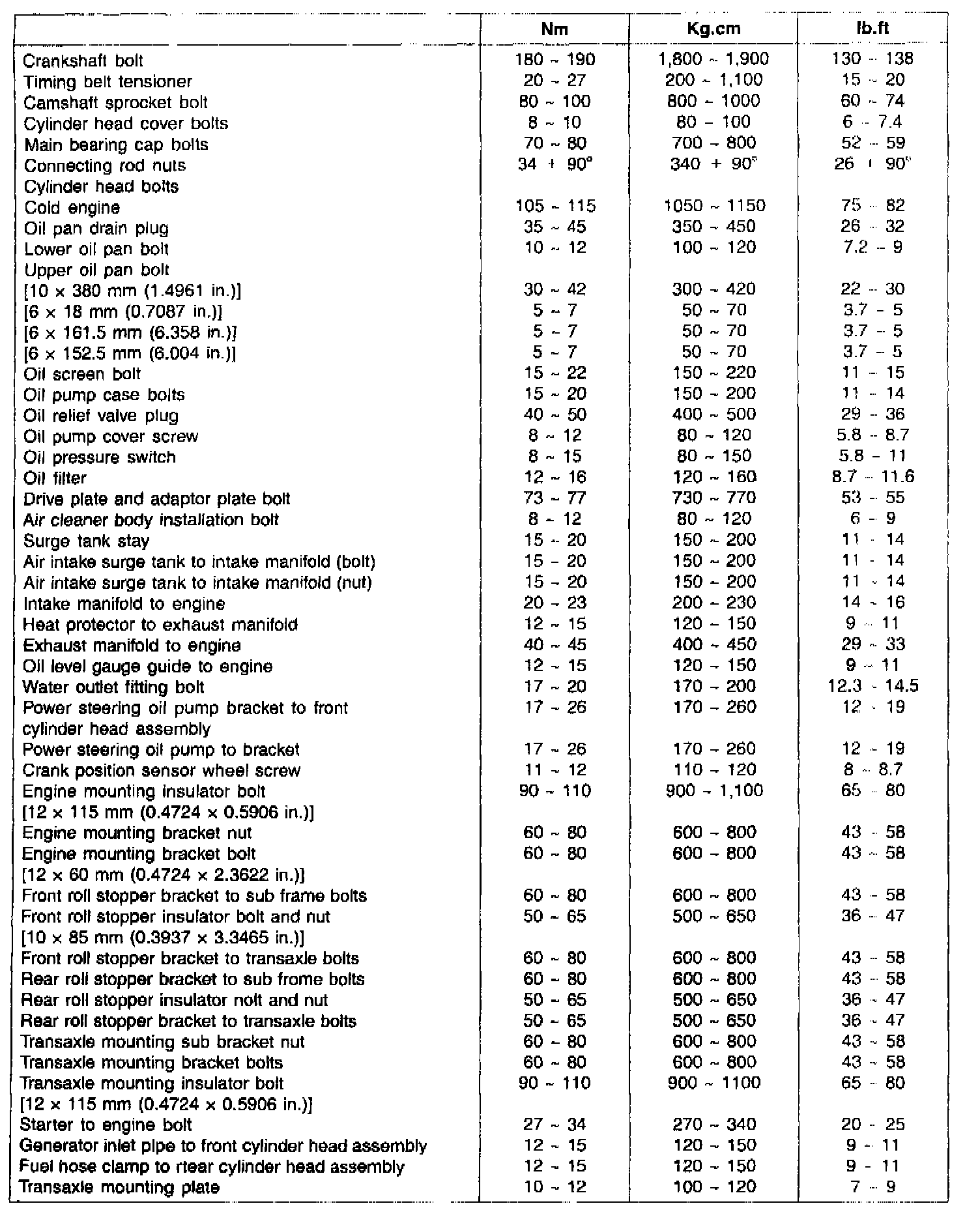

Tightening Torque Part 1:

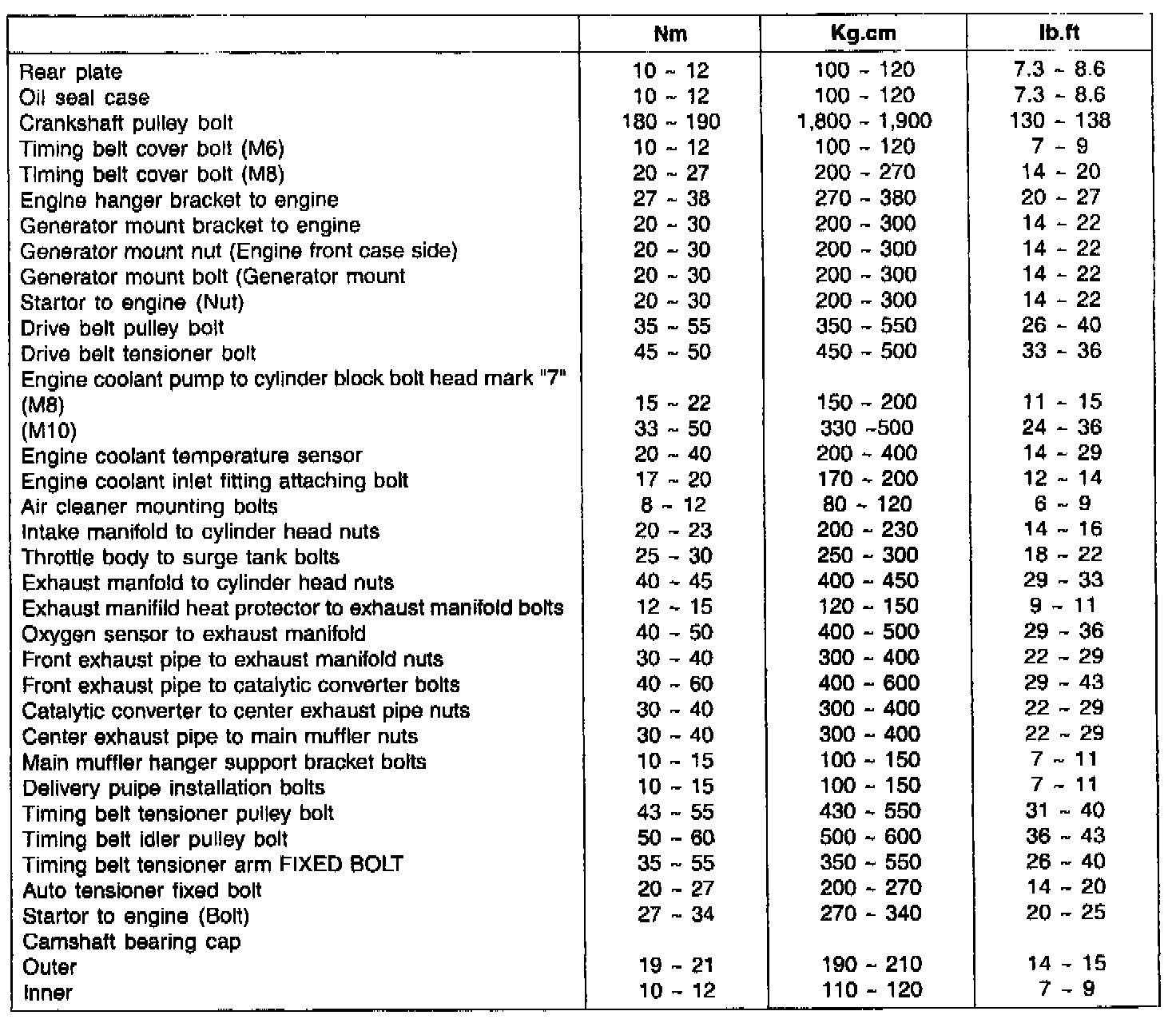

Tightening Torque Part 2:





Cylinder Head Tightening Sequence:





Intake Manifold:
