Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Module At right rear corner of engine compartment. See Figure .
ECM Left rear of engine compartment. See Figure .

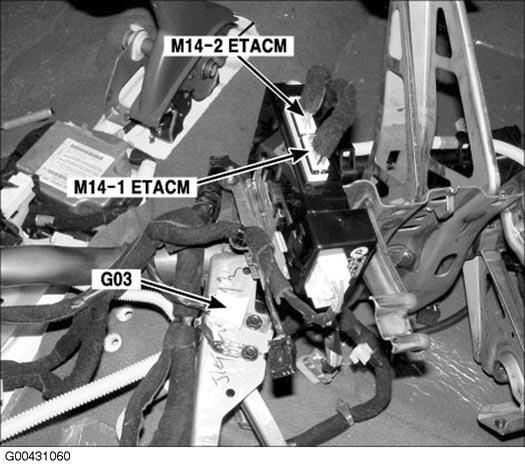

ETACM Behind left center of dash. See Figure .
Immobilizer Control Module Behind left side of dash. See Figure .
PCM Left rear of engine compartment. See Figure .
SRS Control Module Under center console. See Figure .
Tire Pressure Monitoring Module Behind center of dash. See Figure .
