Shift Lever: Removal

  1. Remove the shift lever knob (A).
    Fig 1: Identifying Shift Lever Knob
    G04880242Courtesy of HYUNDAI MOTOR CO.
  2. Remove the indicator assembly (A).

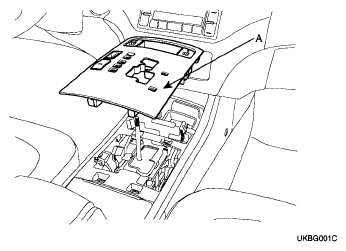

    Fig 2: Identifying Indicator Assembly
    G04880243Courtesy of HYUNDAI MOTOR CO.
  3. Remove the two bolts (A) in the console box.
    Fig 3: Identifying Console Box Bolts
    G04880244Courtesy of HYUNDAI MOTOR CO.
  4. Remove the two screws (A) mounting floor air duct.

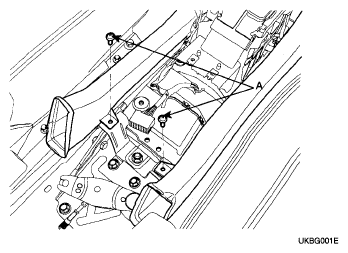

    Fig 4: Identifying Mounting Floor Air Duct Screws
    G04880245Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the interlock connector (A).

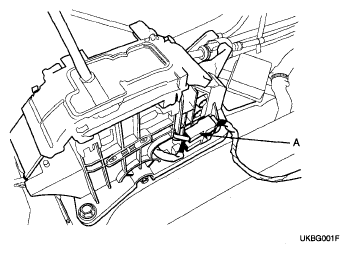

    Fig 5: Identifying Interlock Connector
    G04880246Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the control cable (A).

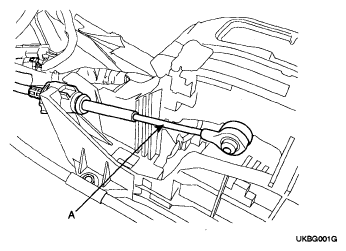

    Fig 6: Identifying Control Cable
    G04880247Courtesy of HYUNDAI MOTOR CO.
  7. Remove the shift lever assembly (A). (Bolt: 4EA)

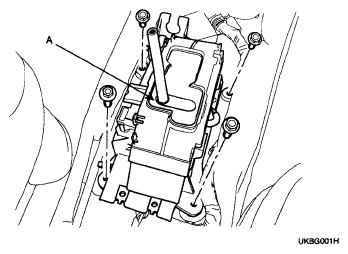

    Fig 7: Identifying Shift Lever Assembly
    G04880248Courtesy of HYUNDAI MOTOR CO.
