Monitor SCANTOOL Data

  1. Ignition "OFF"
  2. Connect Scantool and Engine "ON"
  3. Monitor "Fan PWM" parameter with scantool

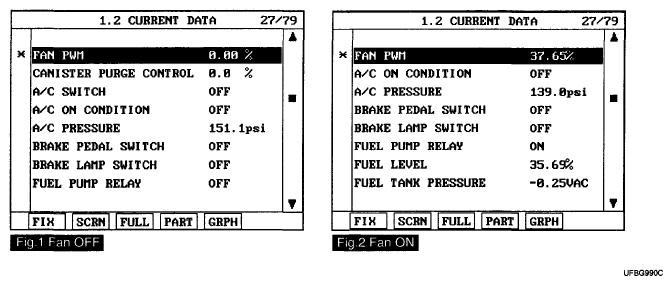

    Fig 1: Scan Tool Display - Current Data
    G04879899Courtesy of HYUNDAI MOTOR CO.
  4. Is the "Fan PWM" parameter displayed correctly ?

    YES

    • Fault is intermittent caused by poor contact in Sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
