Window Shade: Service and Repair

REAR CURTAIN ASSEMBLY REPLACEMENT

1. Remove the package tray trim.

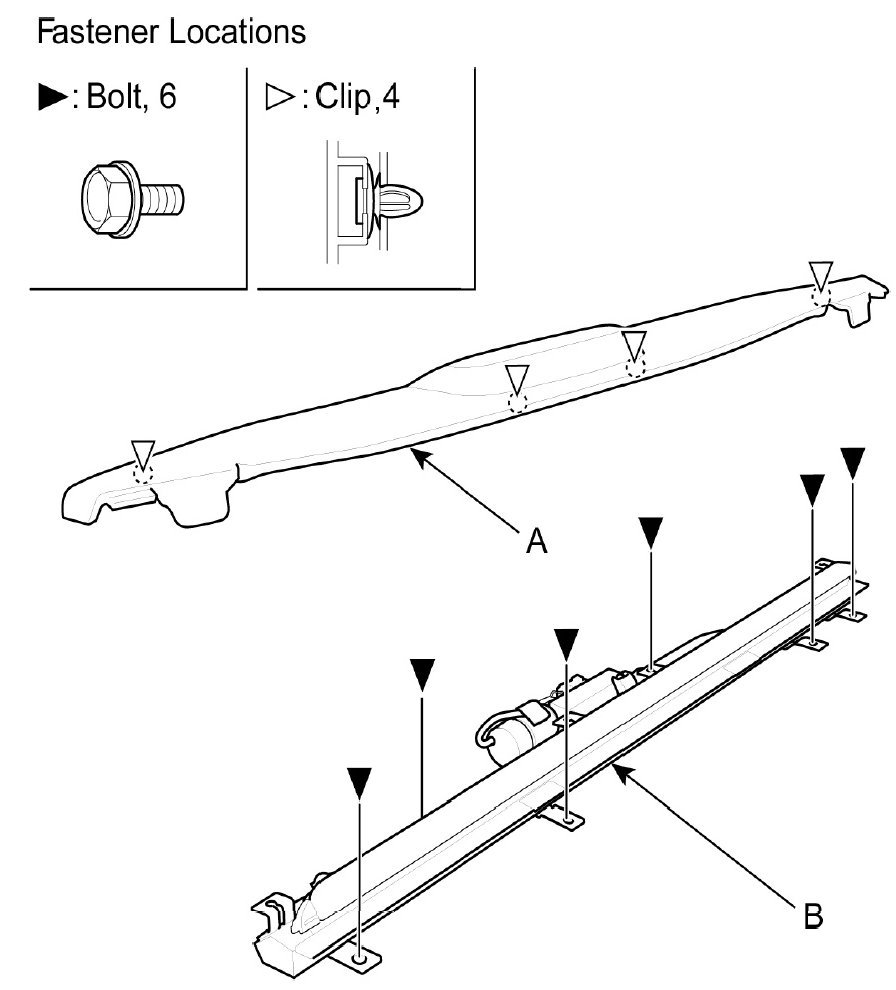

2. Remove the trim (A).
3. Loosening the rear curtain mounting bolts.
4. Remove the rear curtain assembly (B).






5. Installation is the reverse of removal.

NOTE: Replace any damage clips.
