Windshield Washer Switch: Service and Repair

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

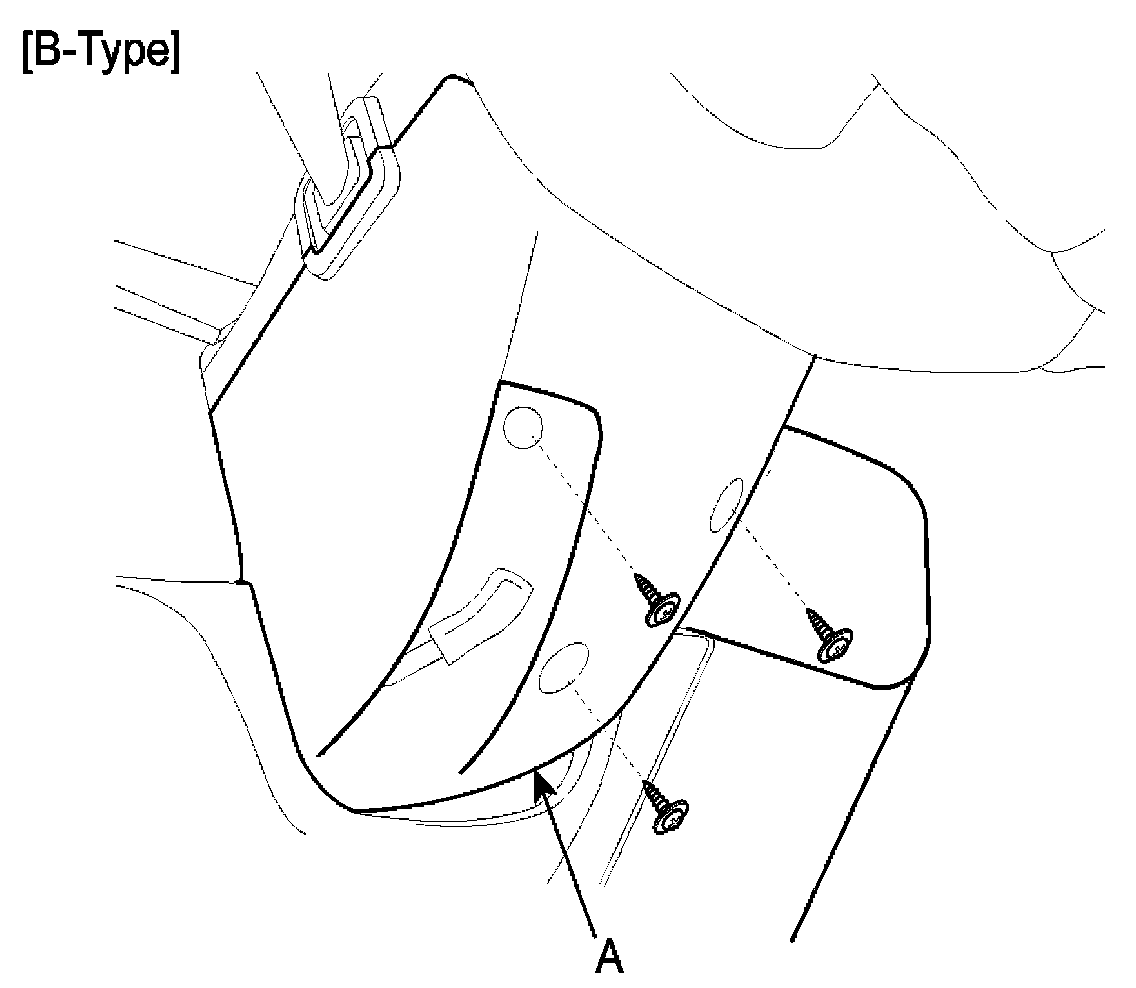

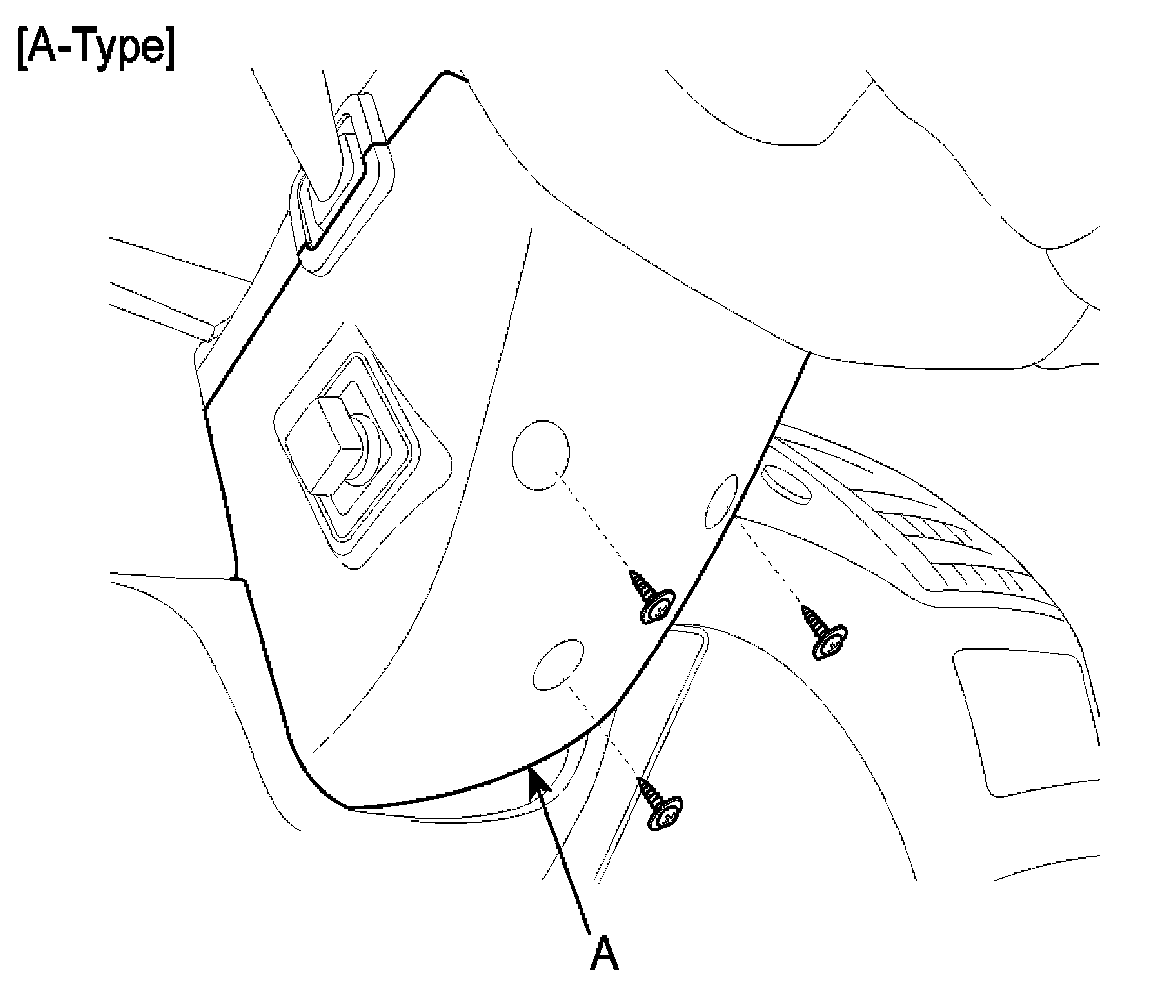

2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

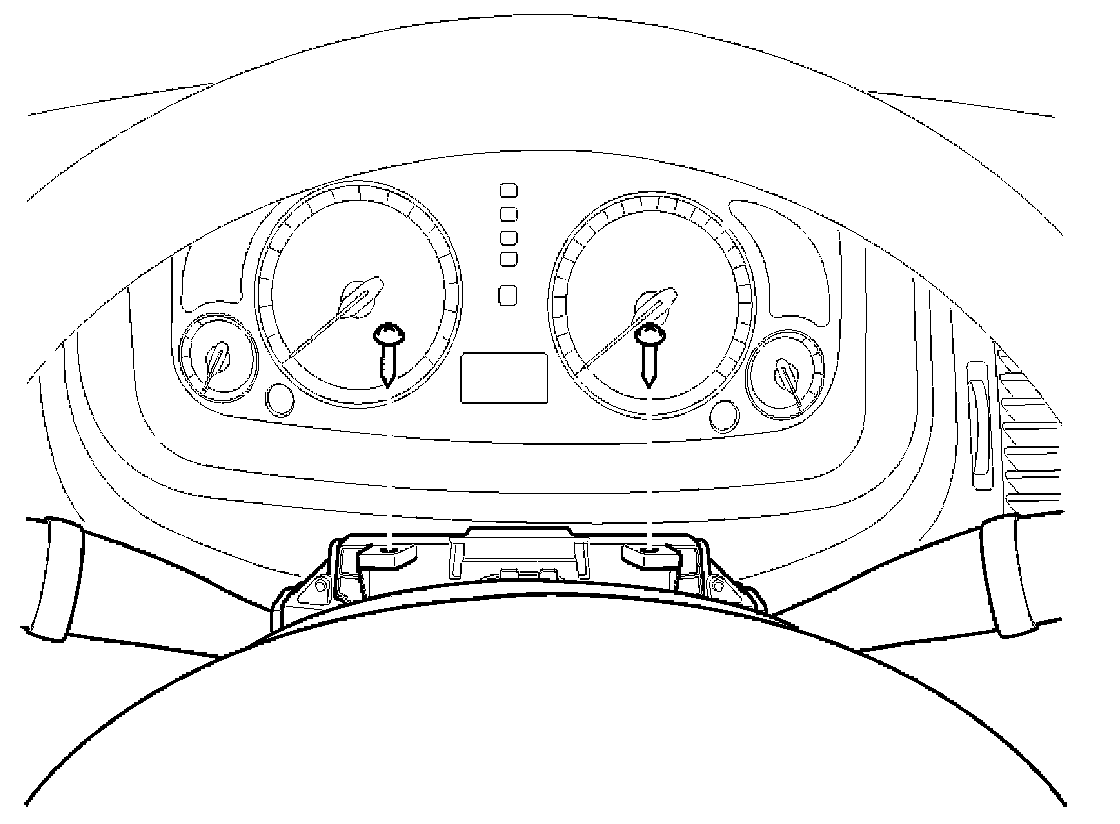

3. Remove the multi function switch after loosening 2 screws and disconnecting connector. (In case of multi function switch assembly replacement)

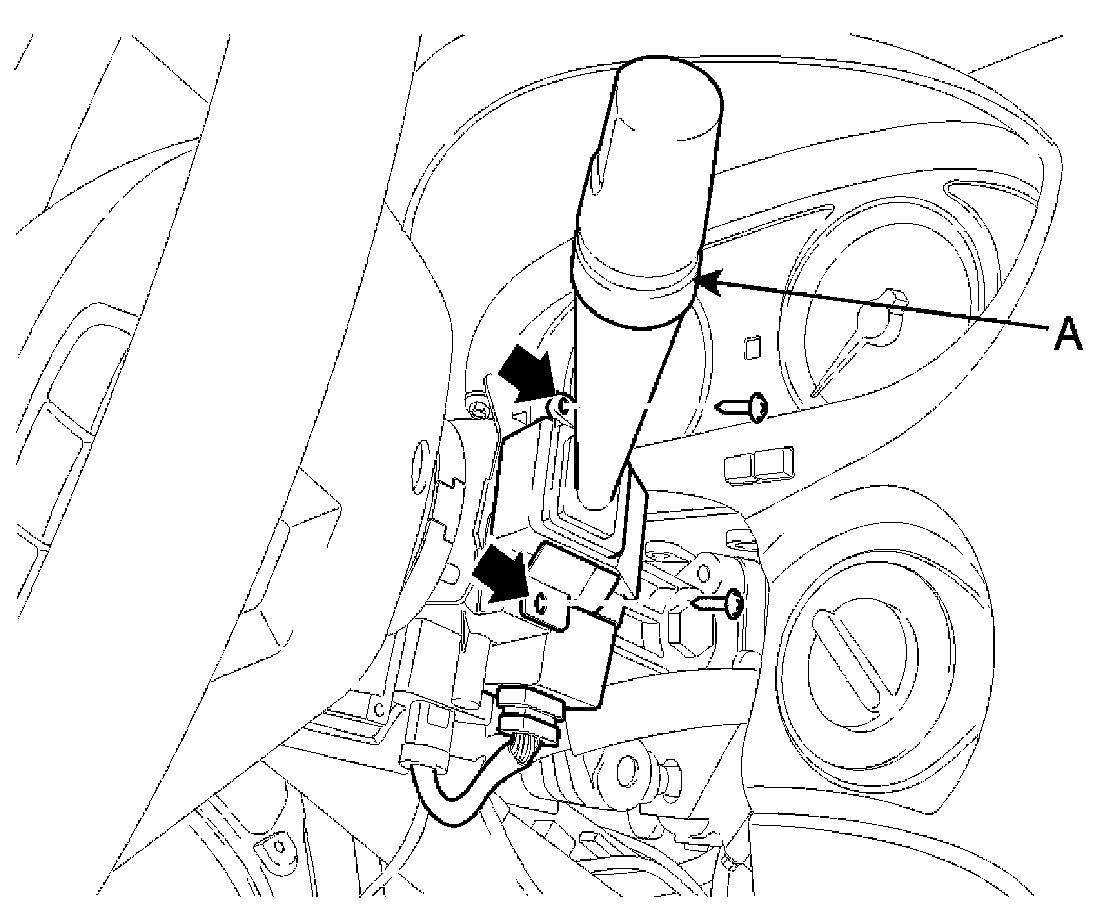

4. Remove the lighting switch (A) after loosening 2 screws.

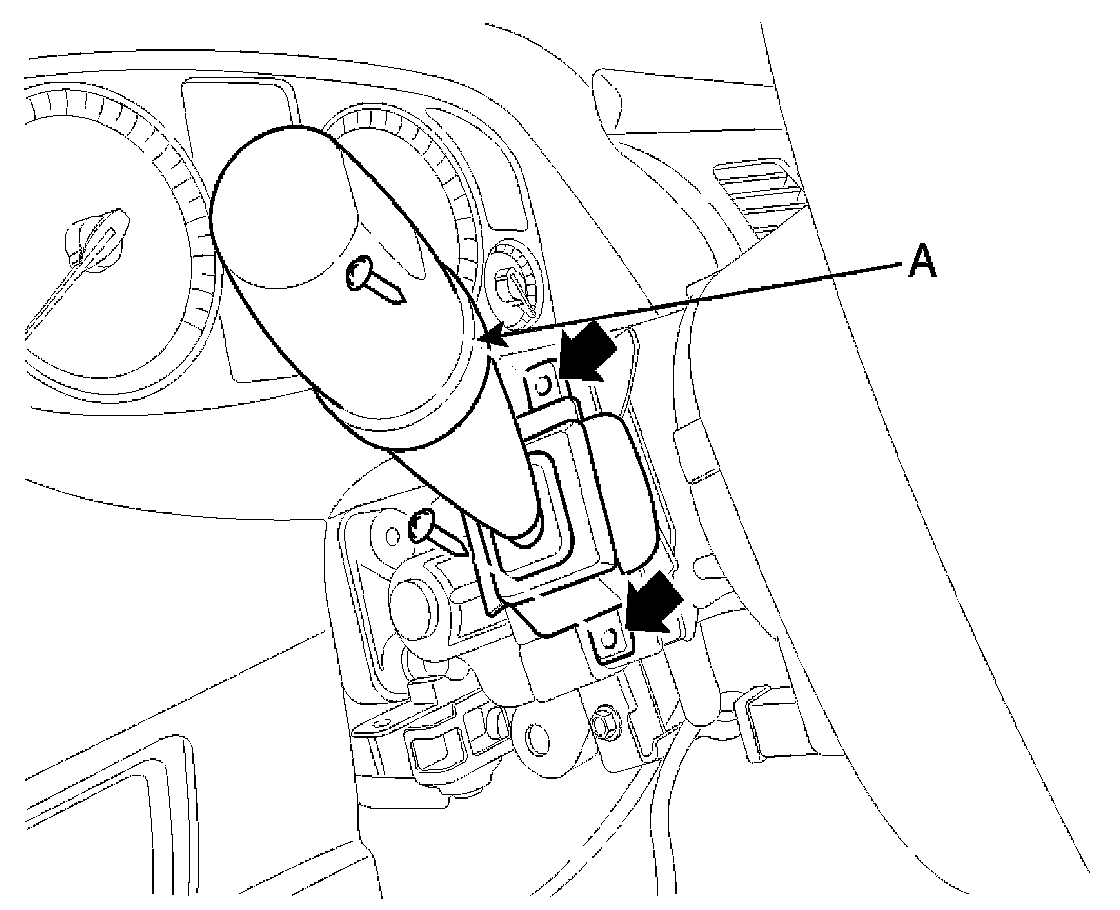

5. Remove the wiper switch (A) after disconnecting the connector and loosening 2 screws.
6. Installation is the reverse of removal.
