Inspect Ignition Switch

Remove the connector located under the steering column.
Check for continuity between terminals.
If there is no continuity, replace the ignition switch.

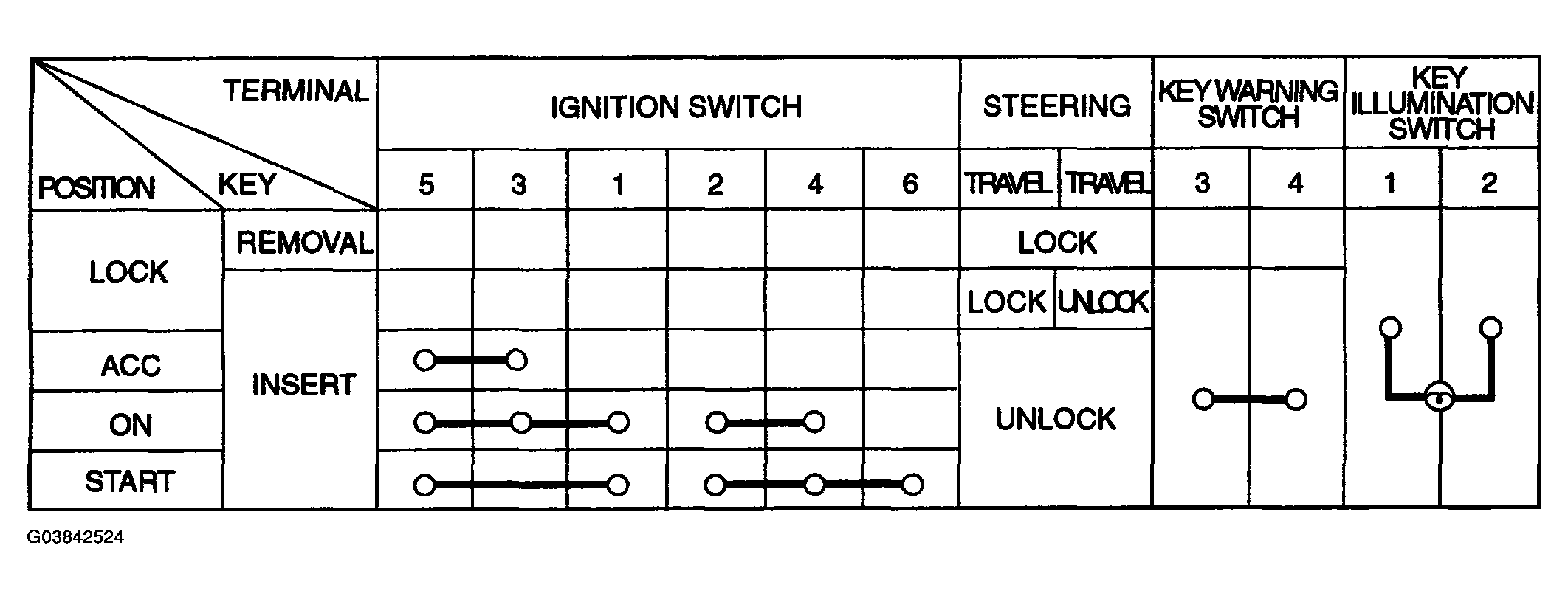

Fig 1: Ignition Switch Continuity Chart
Courtesy of HYUNDAI MOTOR CO.

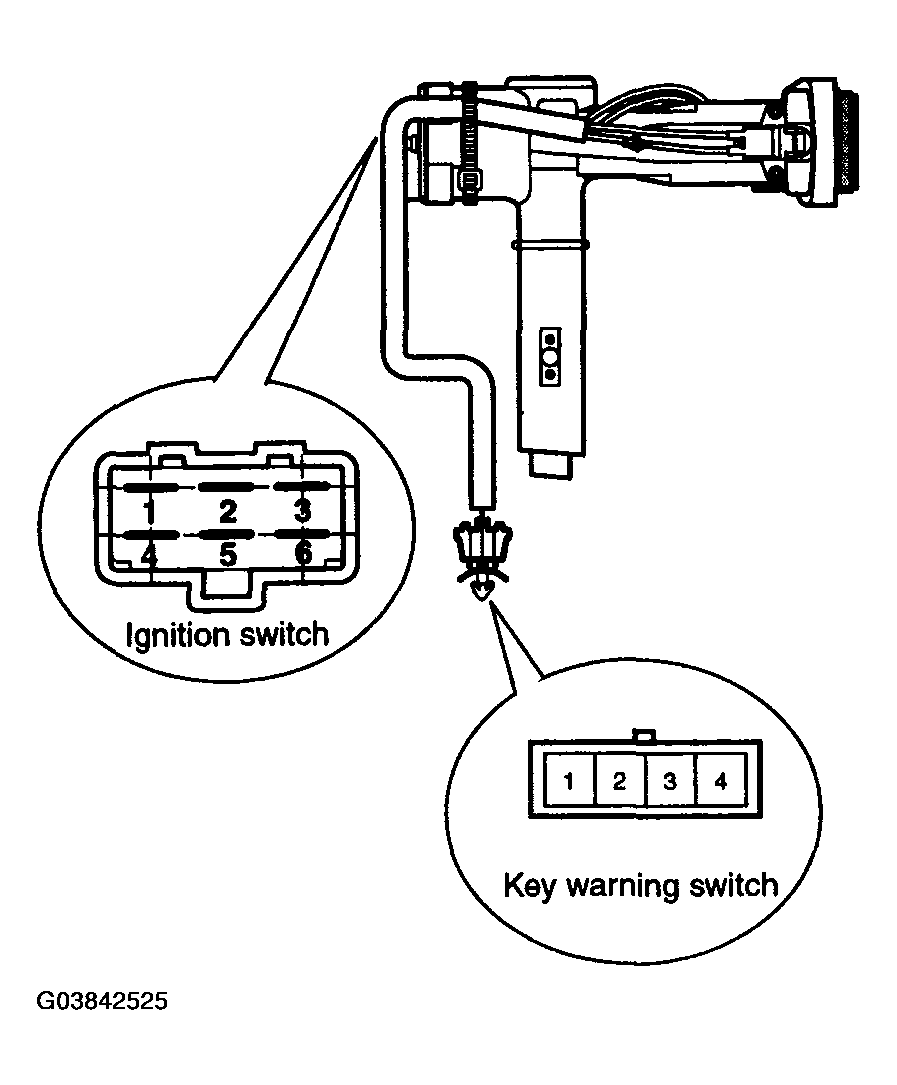

Fig 2: Identifying Ignition Switch & Key Warning Switch Connectors
Courtesy of HYUNDAI MOTOR CO.
