Anti-Lock Braking System Control Module: Removal

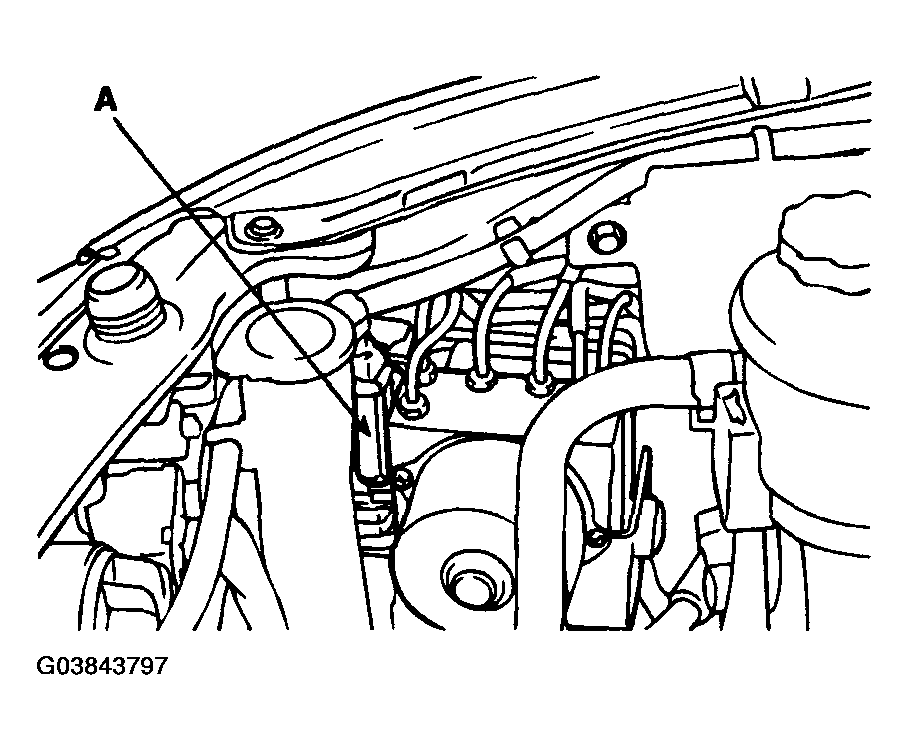

- Disconnect the double lock connector (A) from the HECU.
Courtesy of HYUNDAI MOTOR CO.

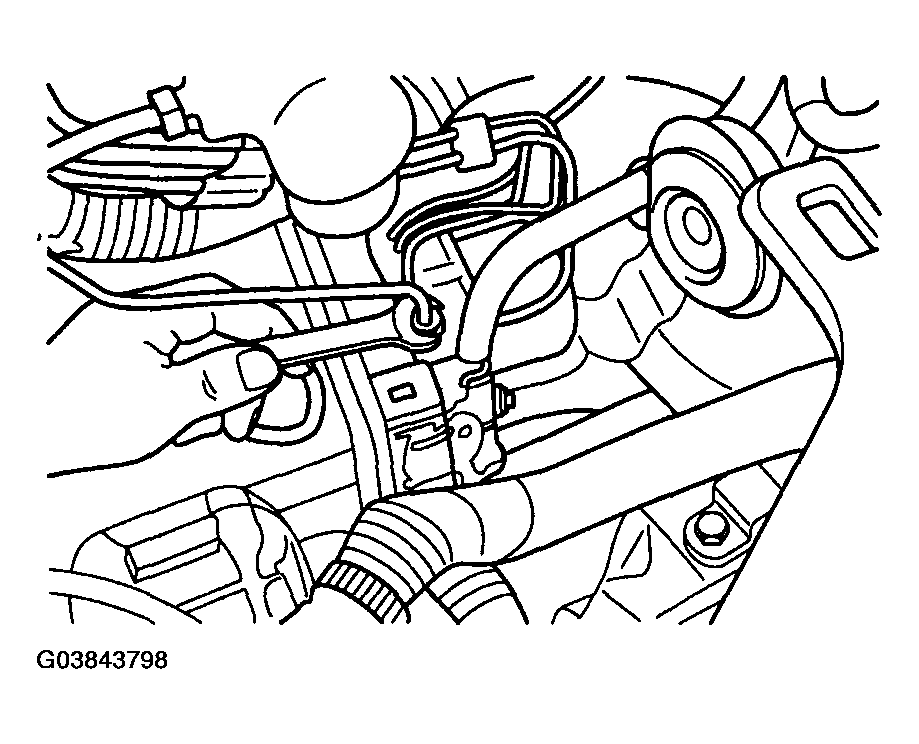

- Disconnect the brake tubes from the HECU.
Courtesy of HYUNDAI MOTOR CO.
NOTE:
- Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid gets on the paint, wash it off immediately with water.
- Take care not to damage or deform the brake lines during removal and installation.
- To prevent the brake fluid from flowing, plug and cover the hose ends and joints with a shop towel or equivalent material.
- Remove the HECU bracket mounting bolt and remove the HECU.
CAUTION:
- Never attempt to disassemble the HECU.
- The HECU must be transported and stored In an upright position and with the ports sealed. The HECU must not be drained.
Courtesy of HYUNDAI MOTOR CO.
