Hyundai
>>
2006
>>
Elantra Limited
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Power Window Switch
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

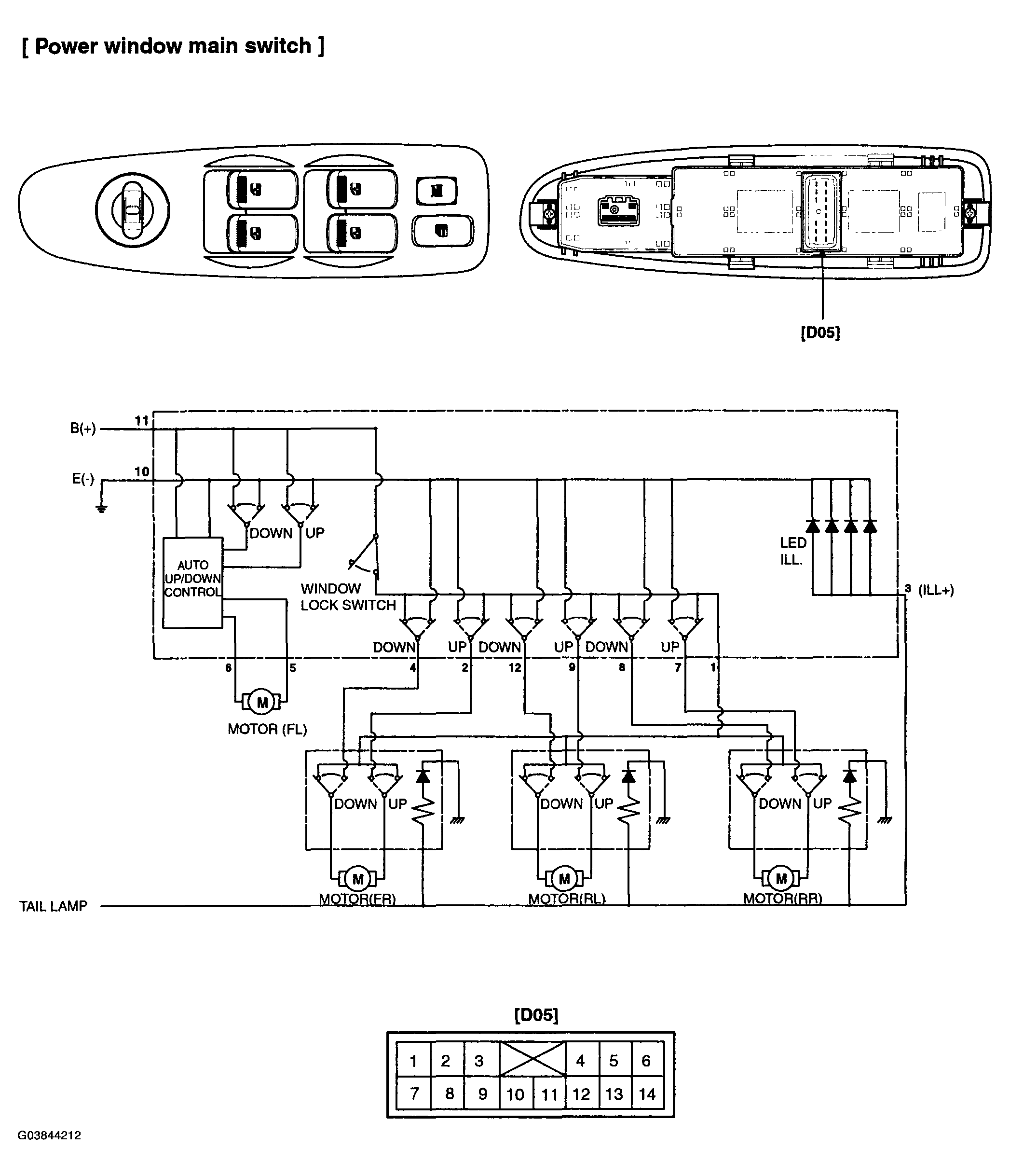

Fig 1: Circuit Diagram - Power Window Switch (Power Window Main Switch)
Courtesy of HYUNDAI MOTOR CO.

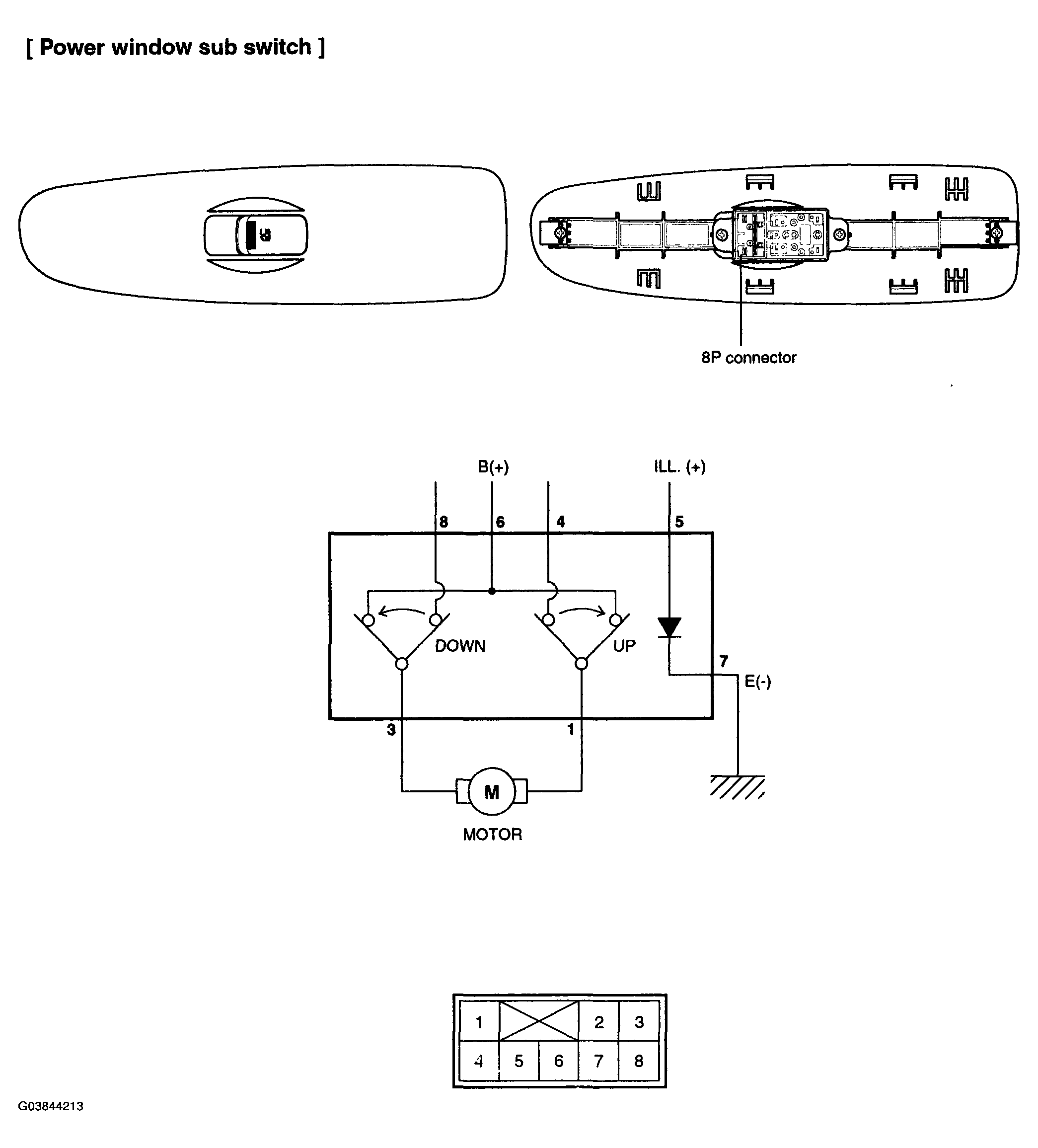

Fig 2: Circuit Diagram - Power Window Switch (Power Window Sub Switch)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
