Crankcase Emission Control System: Components

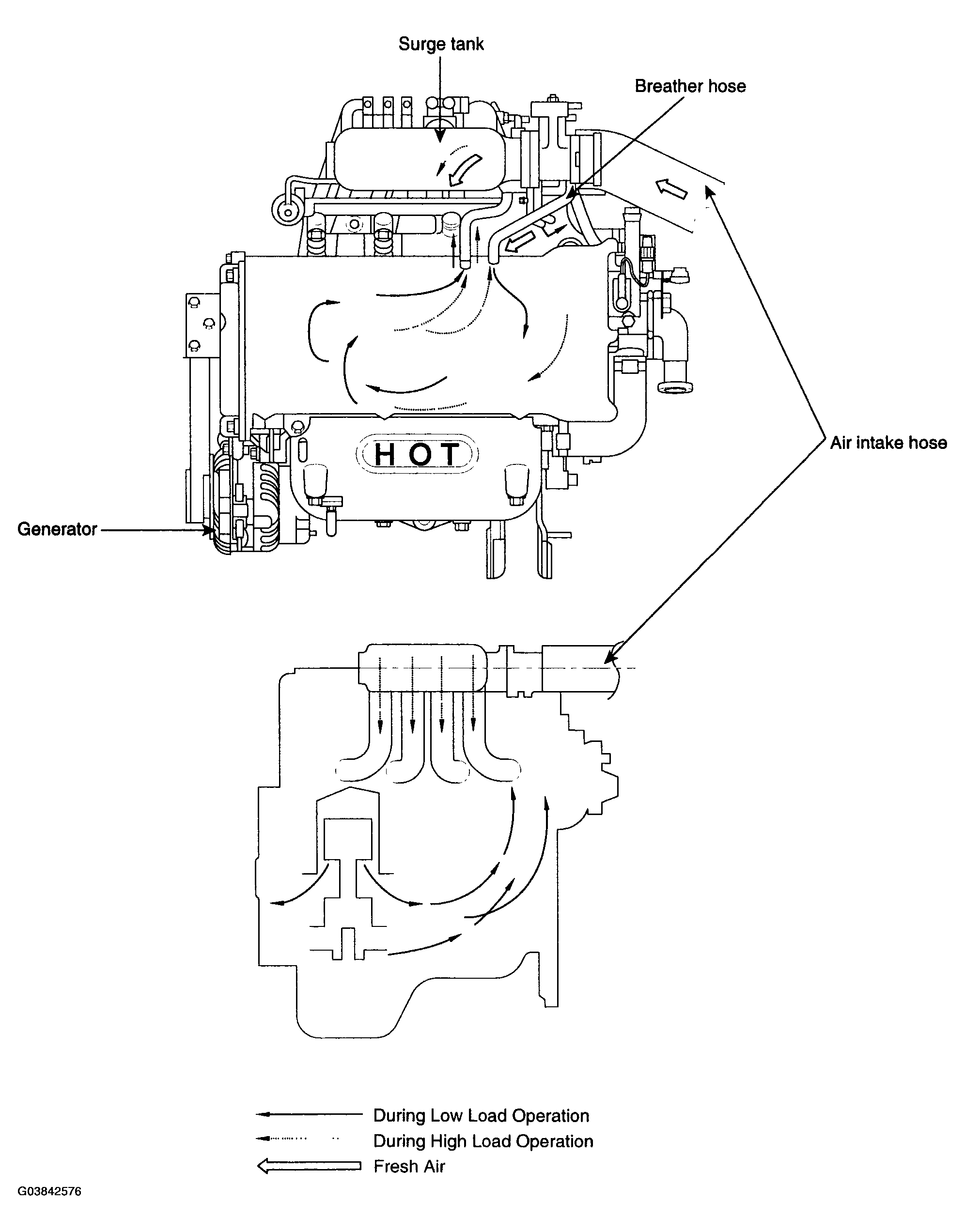

Fig 1: Identifying Crankcase Emission Control System Components
G03842576Courtesy of HYUNDAI MOTOR CO.
