Automatic Transaxle: Components

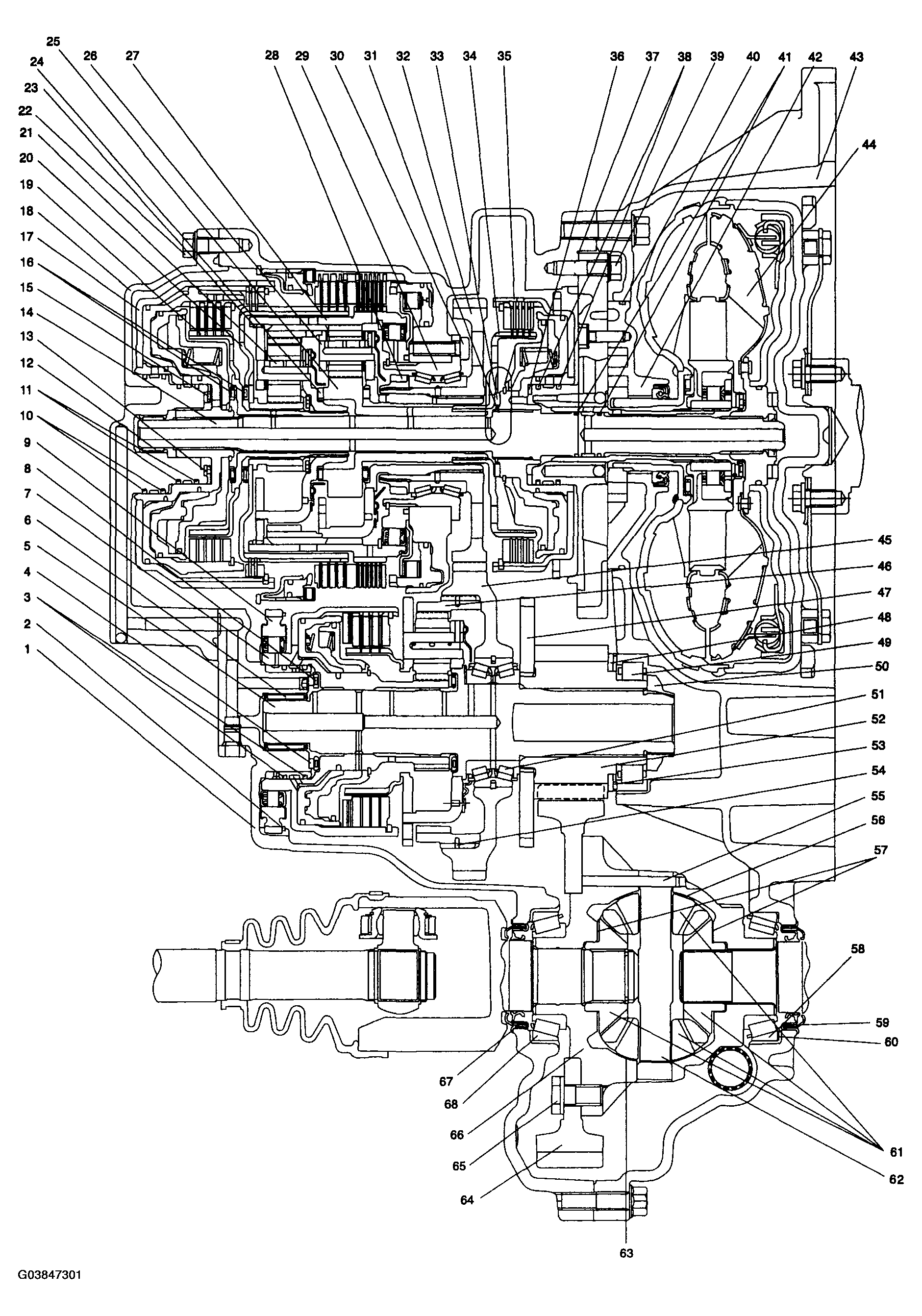

Fig 1: Identifying Automatic Transaxle Components
G03847301Courtesy of HYUNDAI MOTOR CO.

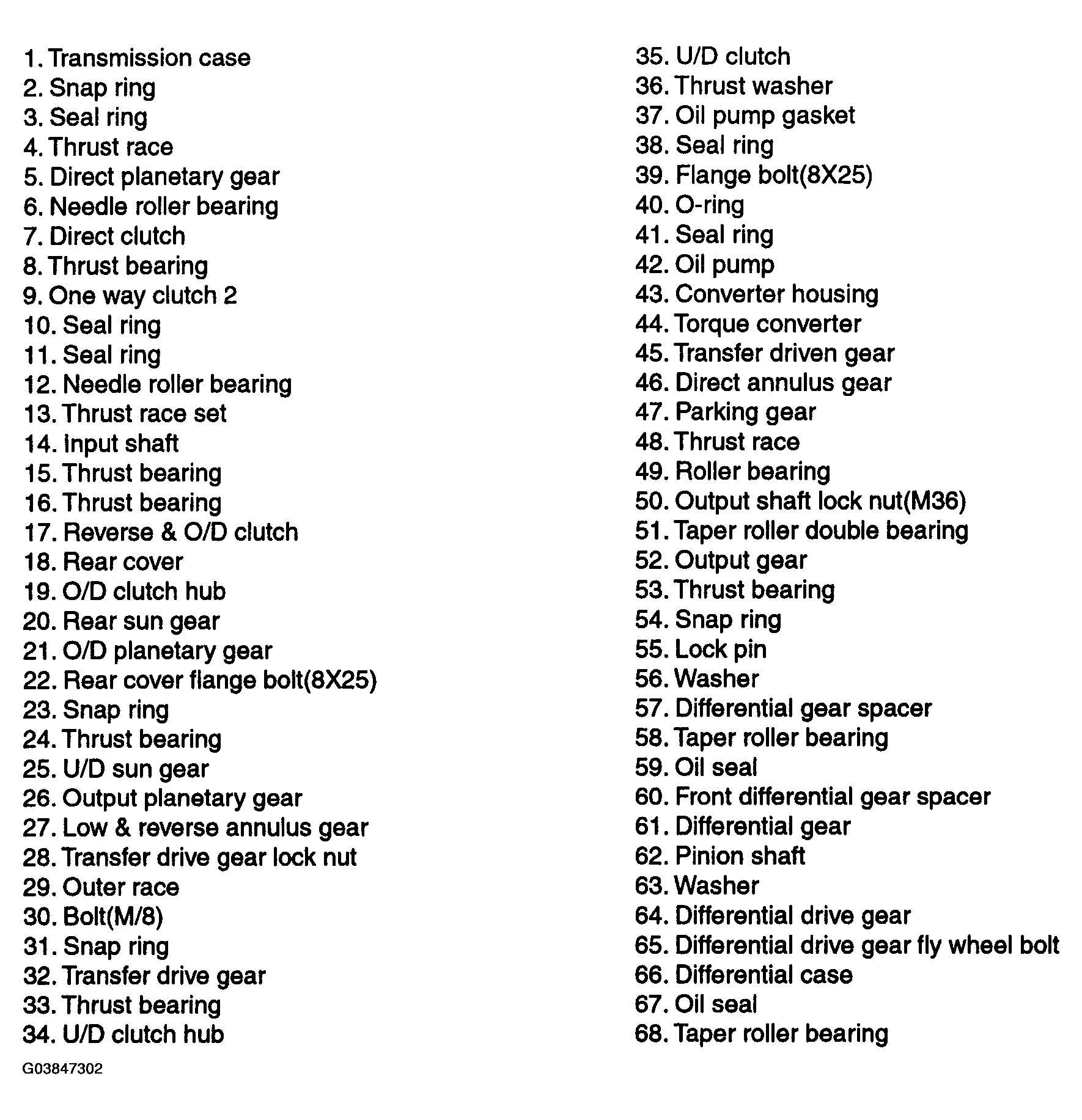

Fig 2: Identifying Item Description Of Automatic Transaxle Components
G03847302Courtesy of HYUNDAI MOTOR CO.
