Transaxle Range Switch Continuity Check

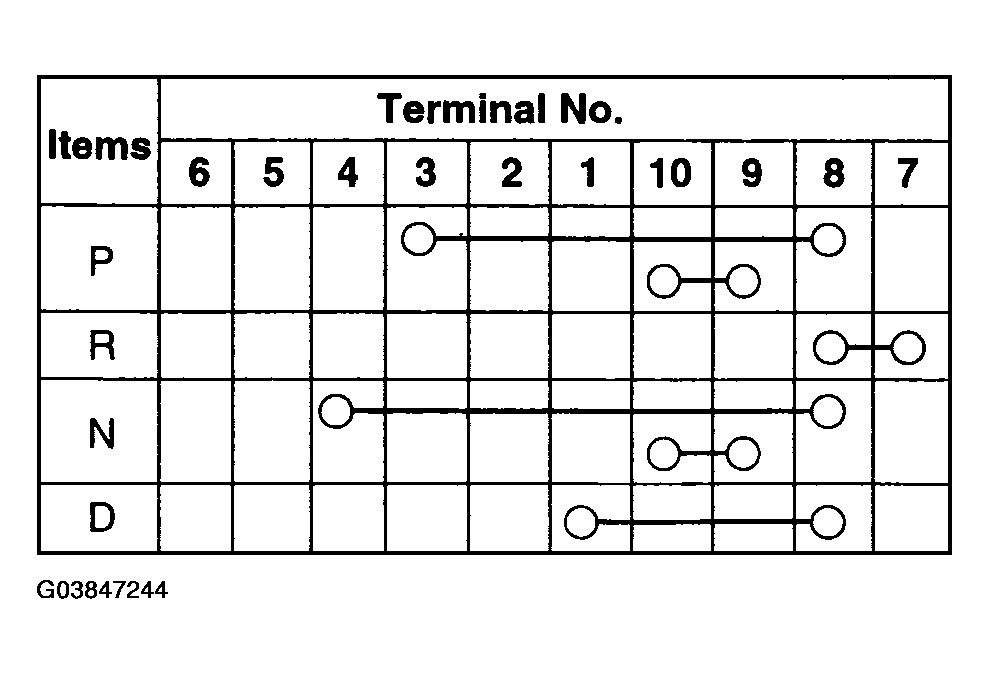

Fig 1: Transaxle Range Switch Continuity Check Chart
G03847244Courtesy of HYUNDAI MOTOR CO.

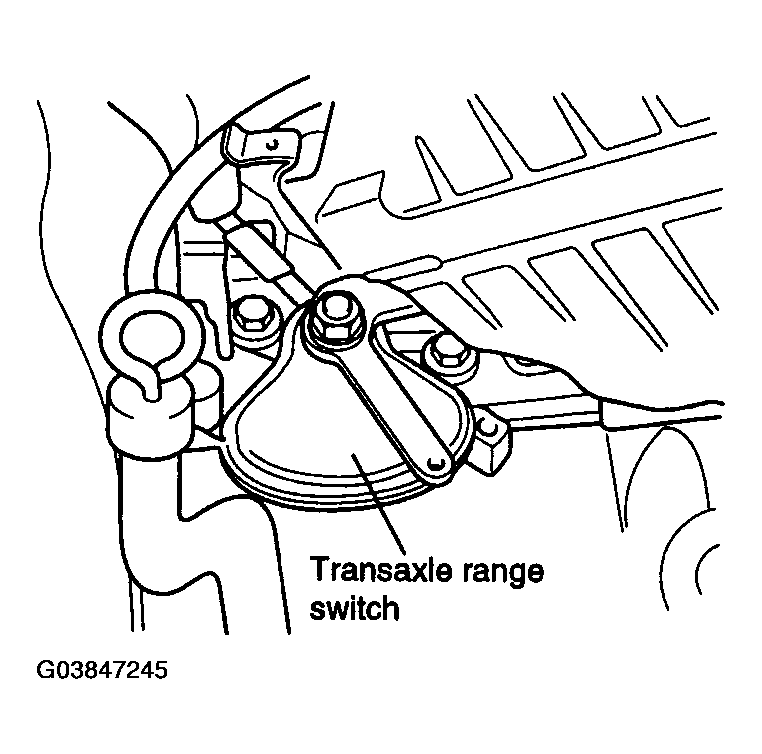

Fig 2: Identifying Transaxle Range Switch
G03847245Courtesy of HYUNDAI MOTOR CO.
