Power Window Relay: Locations

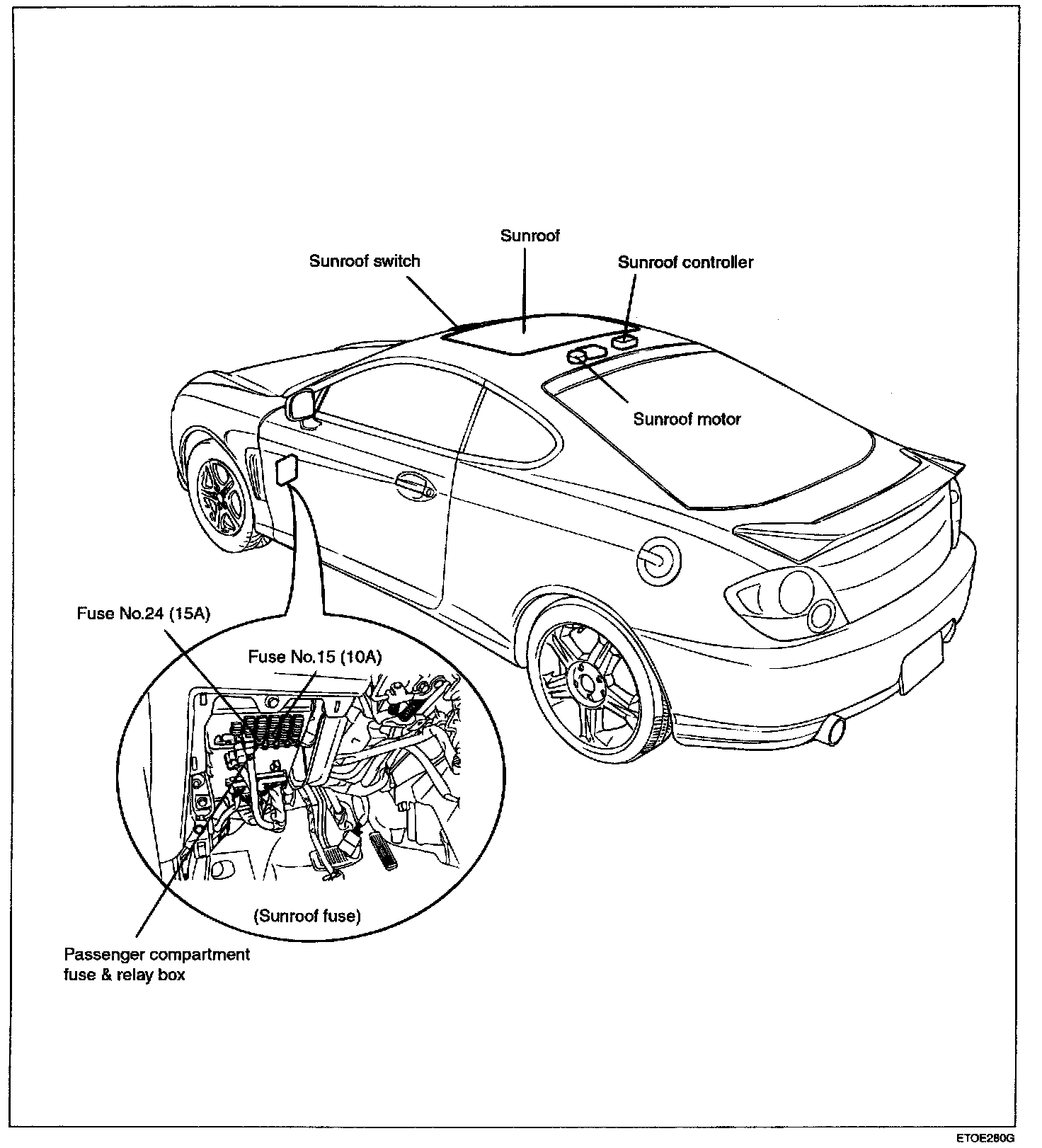

Located in the passenger compartment fuse/relay box

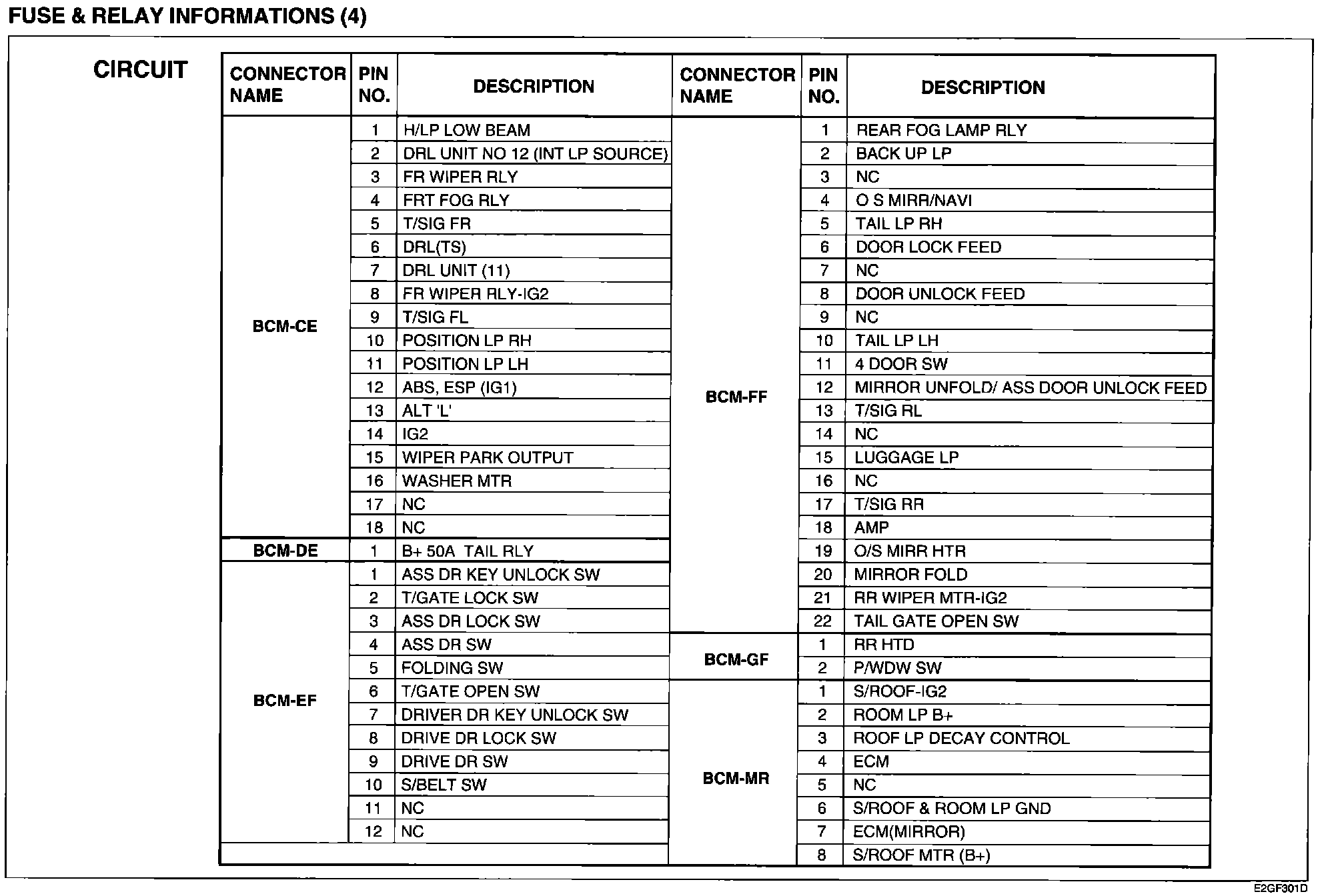

Body Control Module (BCM Box) Circuit Details:

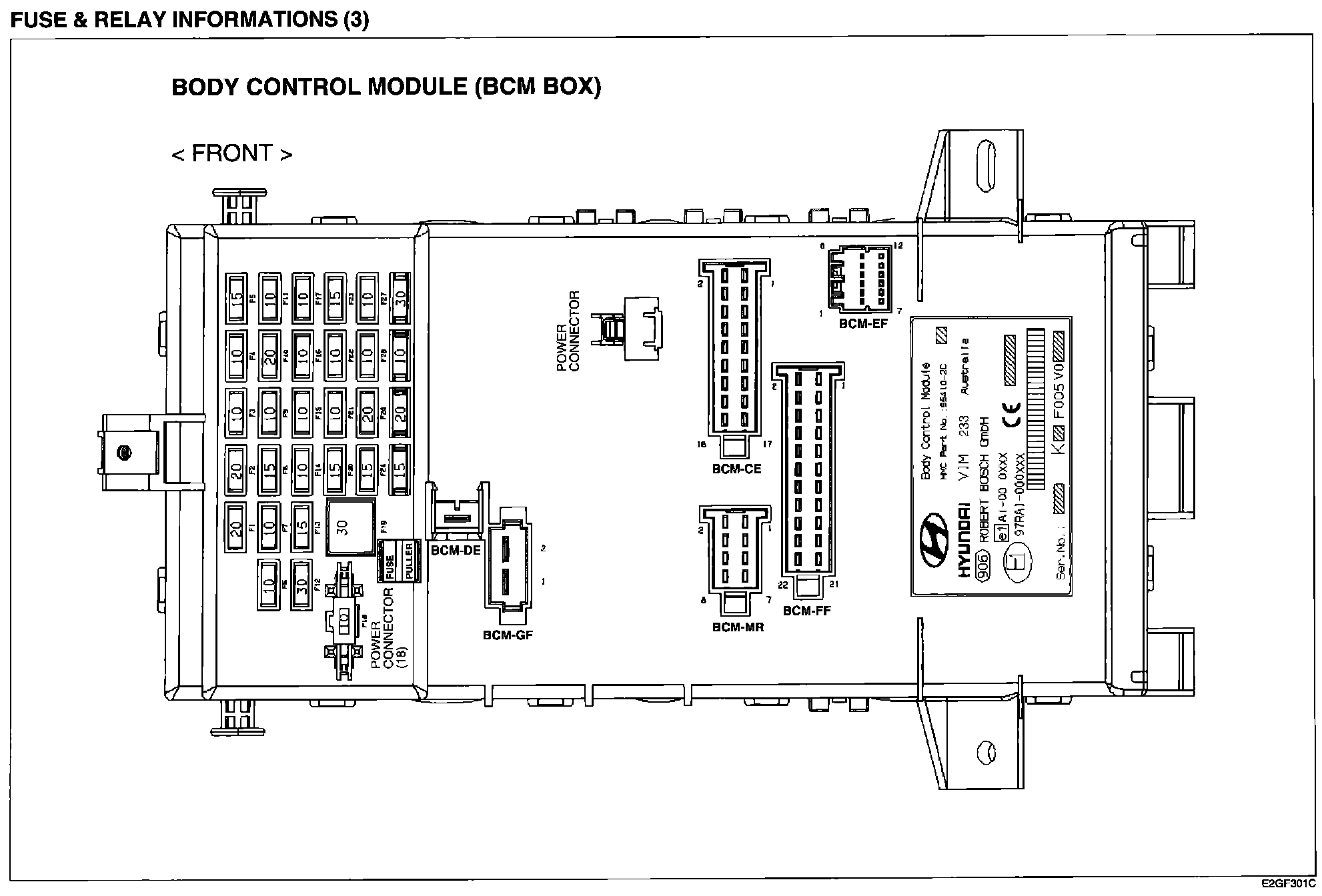

Body Control Module (BCM Box) View:
