Camshaft Position Sensor

  1. Remove the engine cover.
  2. Disconnect the camshaft position sensor connector.
  3. Remove the camshaft position sensor (C).

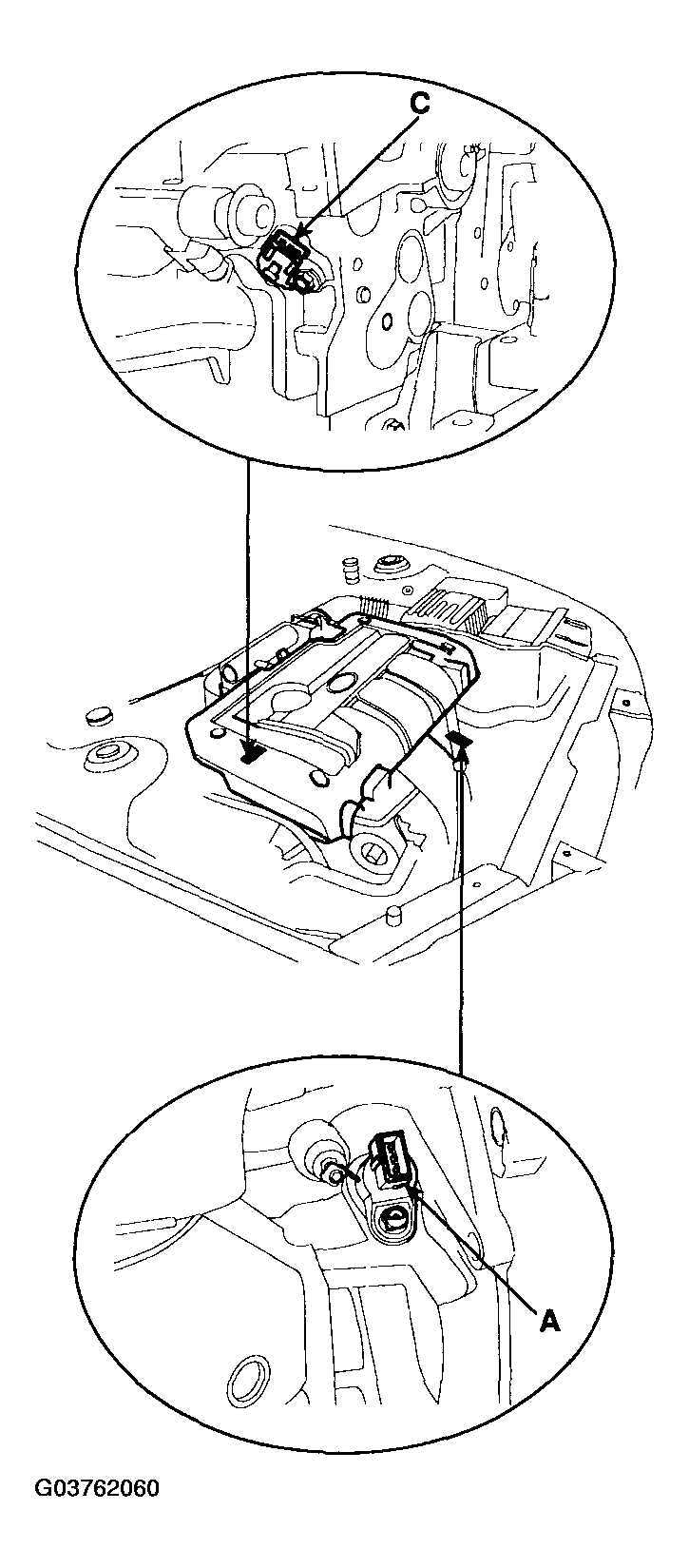

    Fig 1: Locating Camshaft & Crankshaft Position Sensors (4-Cylinder)
    G03762060Courtesy of HYUNDAI MOTOR CO.

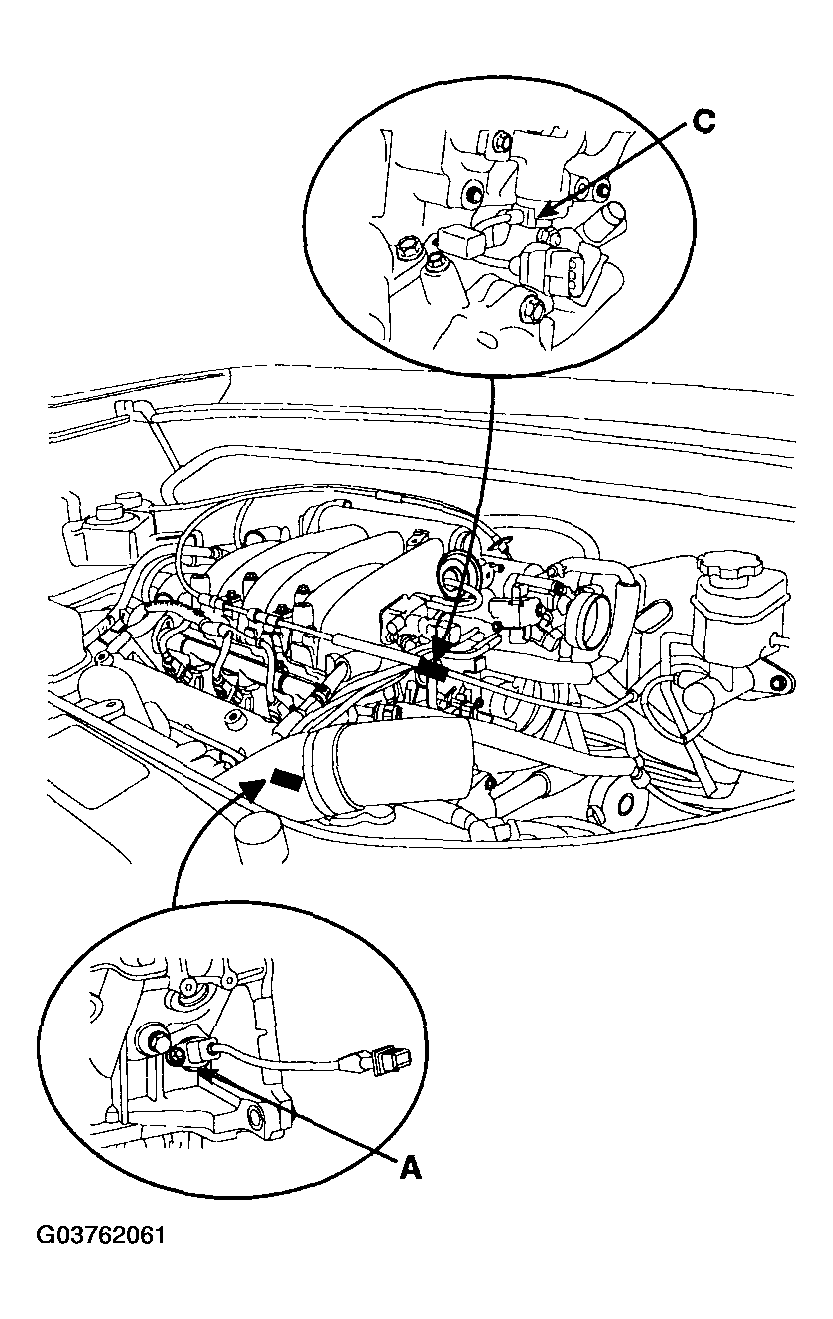

    Fig 2: Locating Camshaft & Crankshaft Position Sensors (V6)
    G03762061Courtesy of HYUNDAI MOTOR CO.
