Transfer Drive Gear: Components

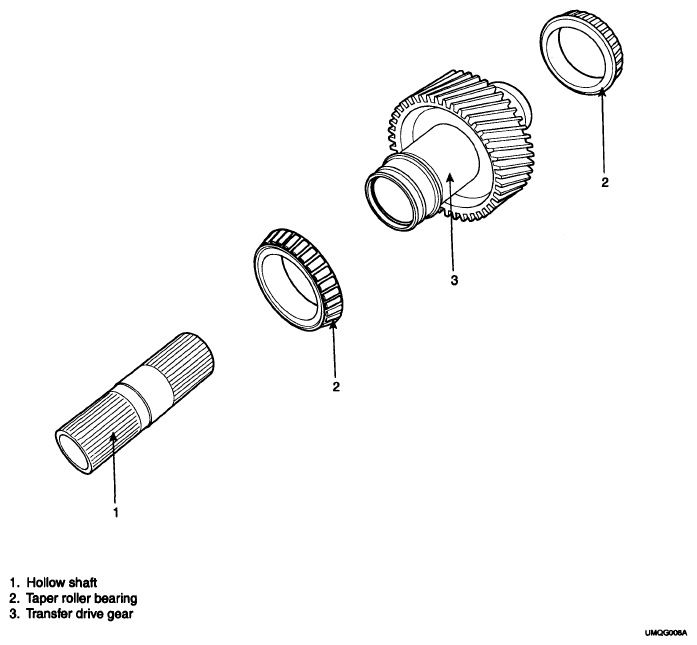

Fig 1: Identifying Transfer Drive Gear Components

G04811100

Courtesy of HYUNDAI MOTOR CO.
