Automatic Transmission/Transaxle

TCM PIN DESCRIPTION

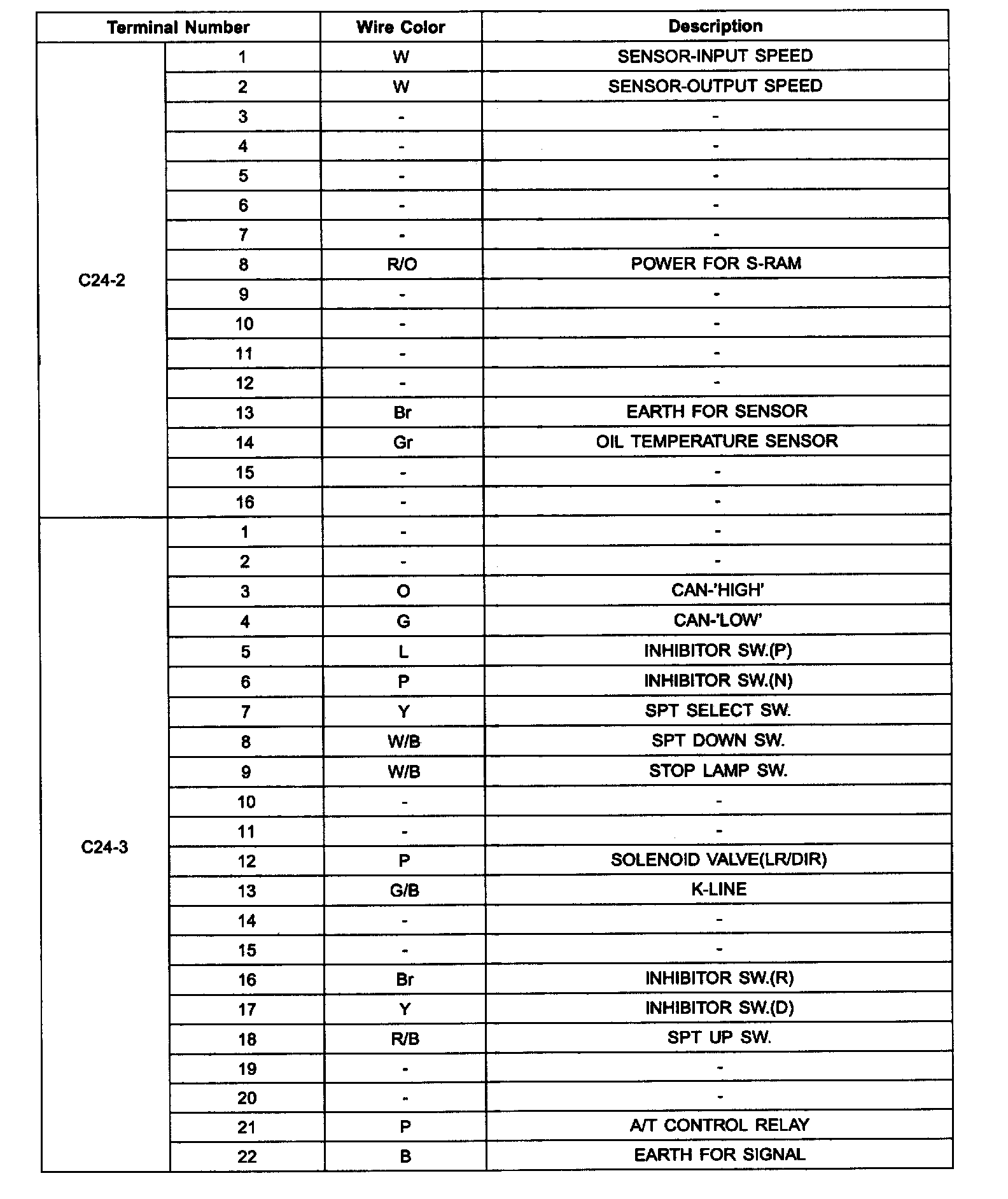

TCM PIN DESCRIPTION:

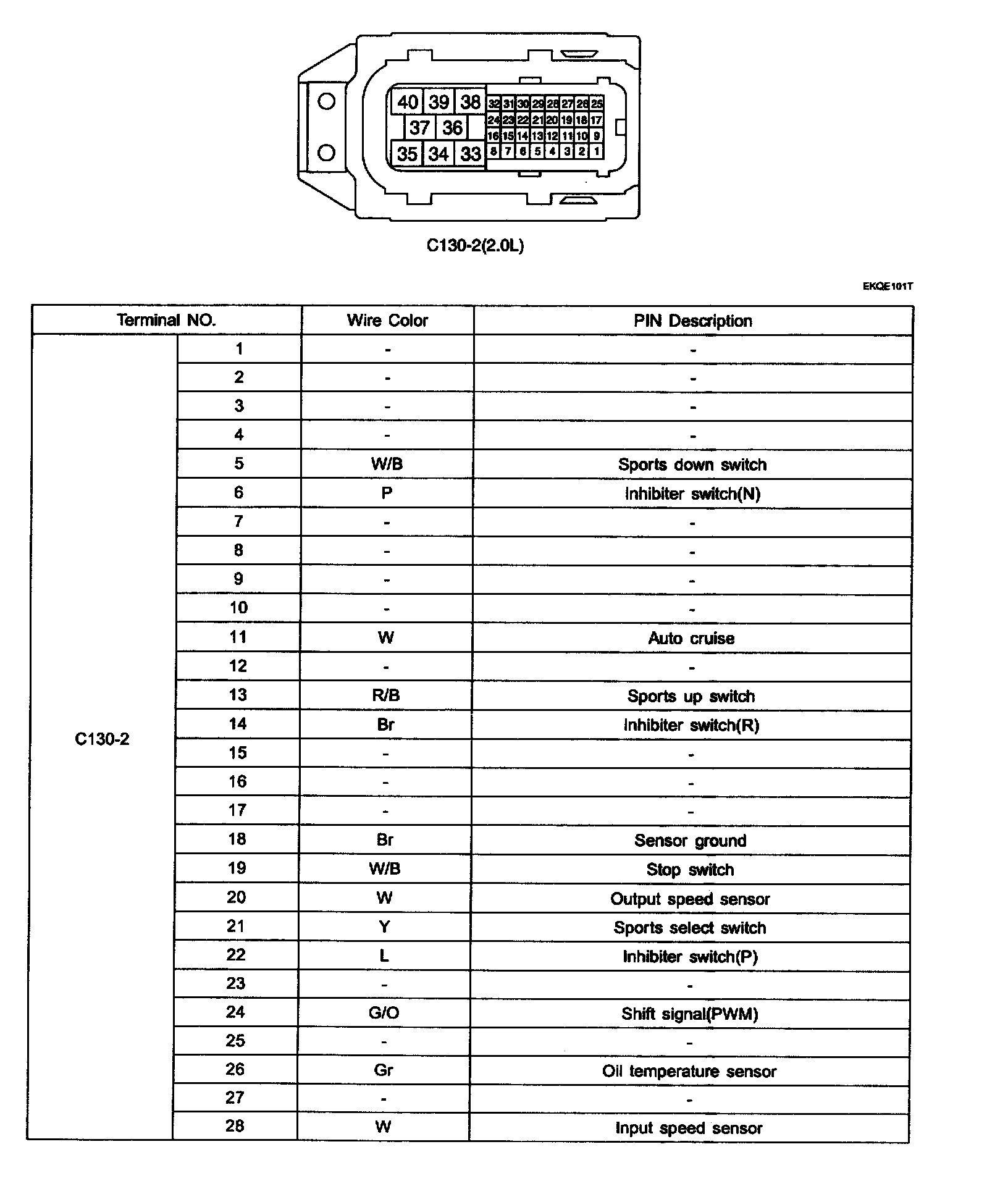

TCM PIN DESCRIPTION:

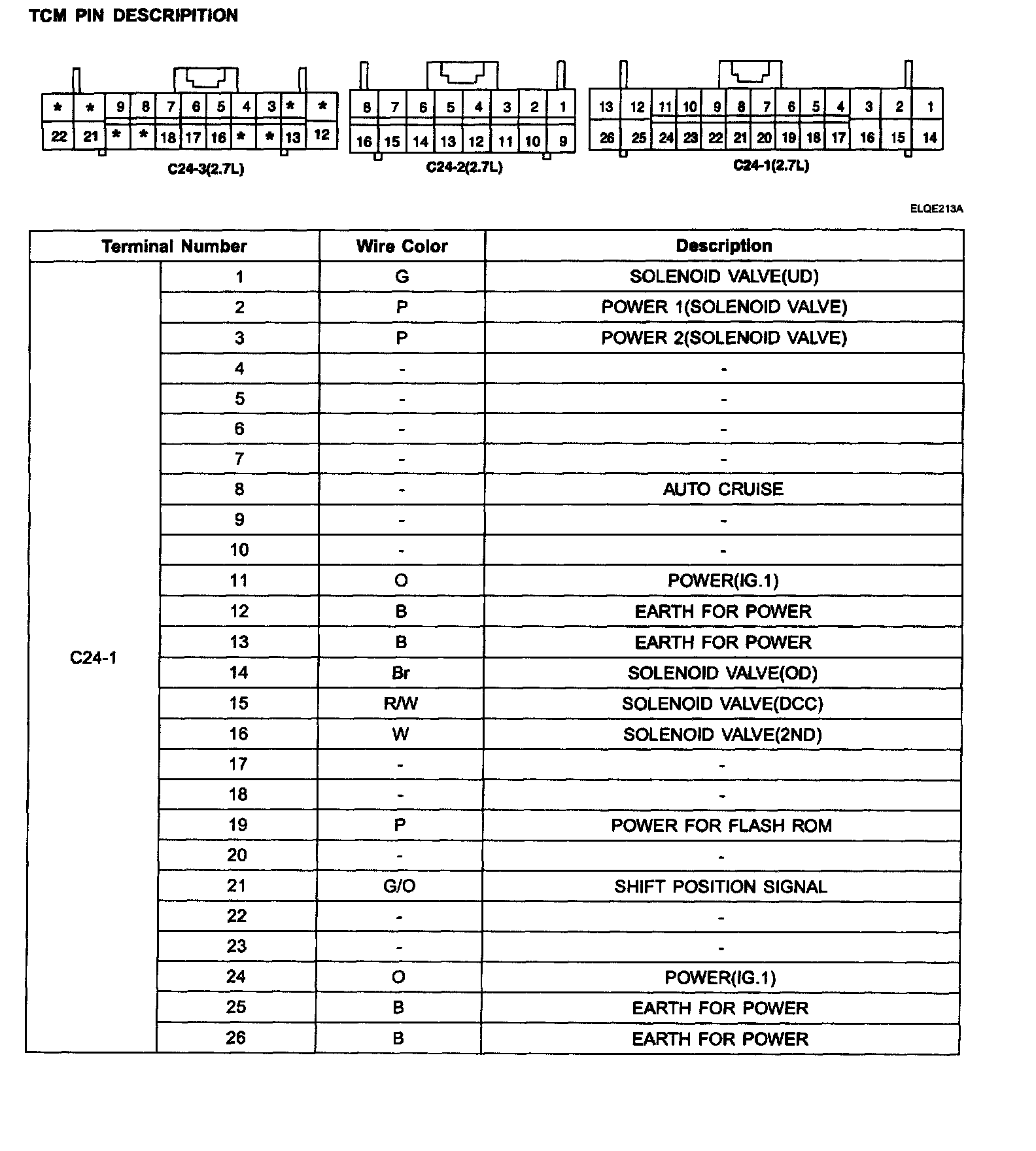

TCM PIN DESCRIPTION:




TCM PIN DESCRIPTION:
