Brake Switch Test

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the connector (A) from the brake switch.
Remove the brake switch (B).

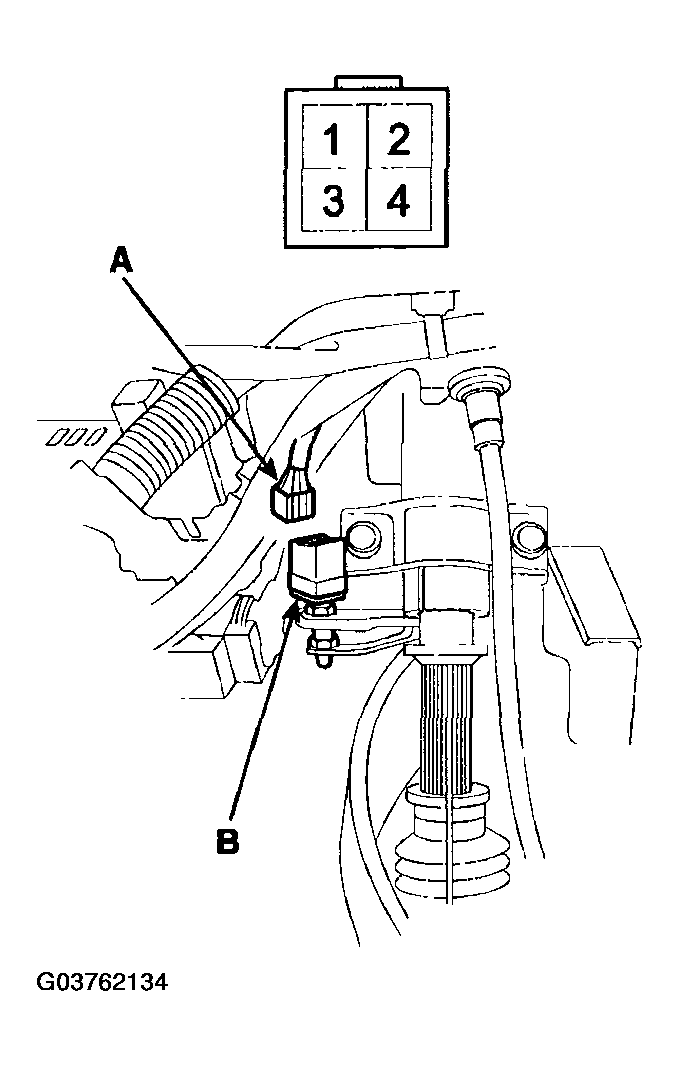

Fig 1: Identifying Brake Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals according to the table.

Fig 2: Brake Switch Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
If necessary, replace the switch or adjust the switch.
