Standard Flow Of Diagnostic Troubleshooting: Notes

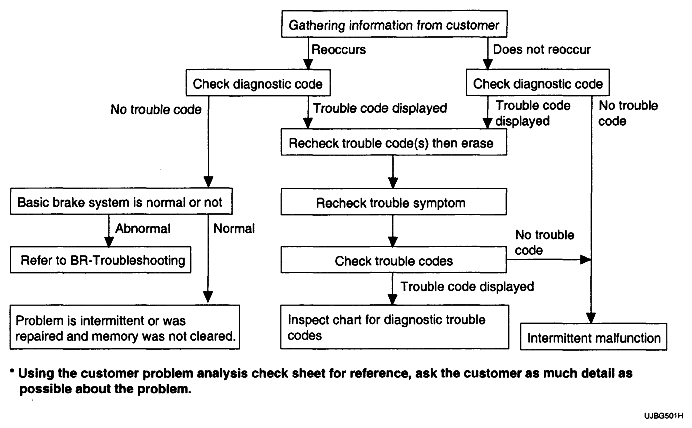

Fig 1: Diagnostic Troubleshooting - Flow Chart

G04880923

Courtesy of HYUNDAI MOTOR CO.
