Input And Output Diagram

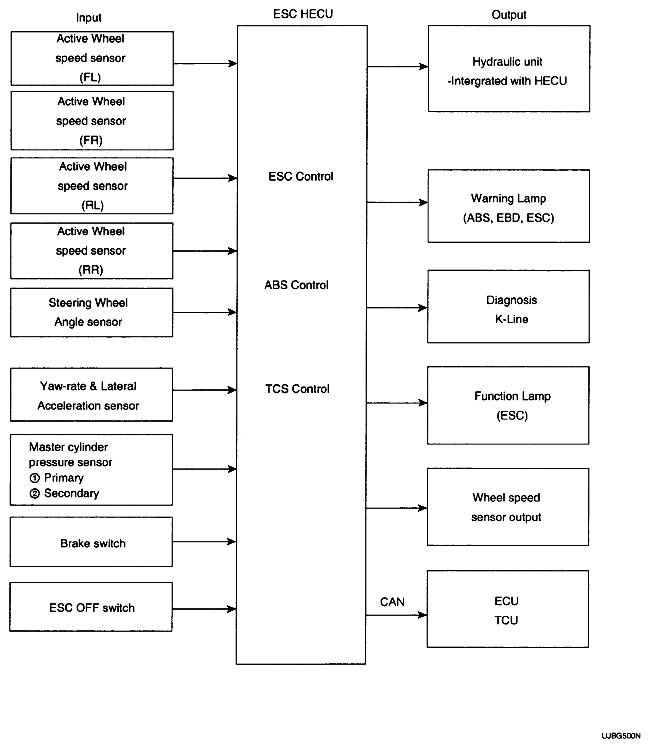

Fig 1: Input And Output Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
