Rear Strut Assembly: Components

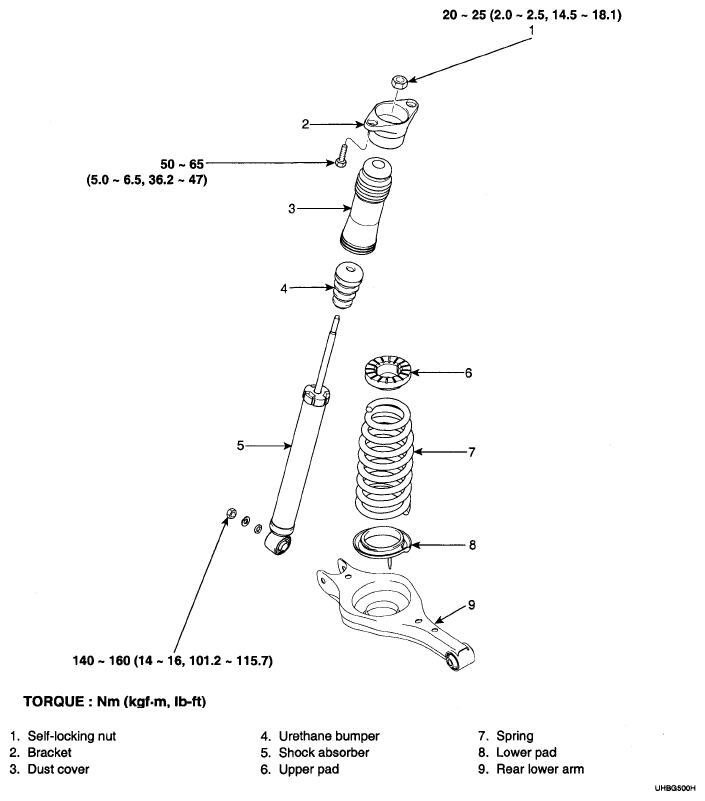

Fig 1: Rear Strut Assembly Replacement Components With Torque Specifications

G04880428
