Chart 9

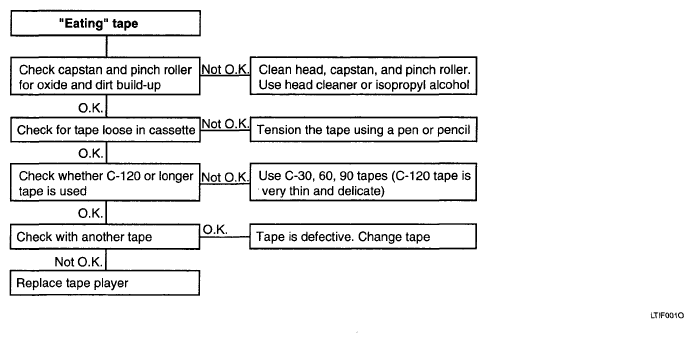

Fig 1: Symptom Troubleshooting Flow Chart 9
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
