Relay Box (Engine Compartment)

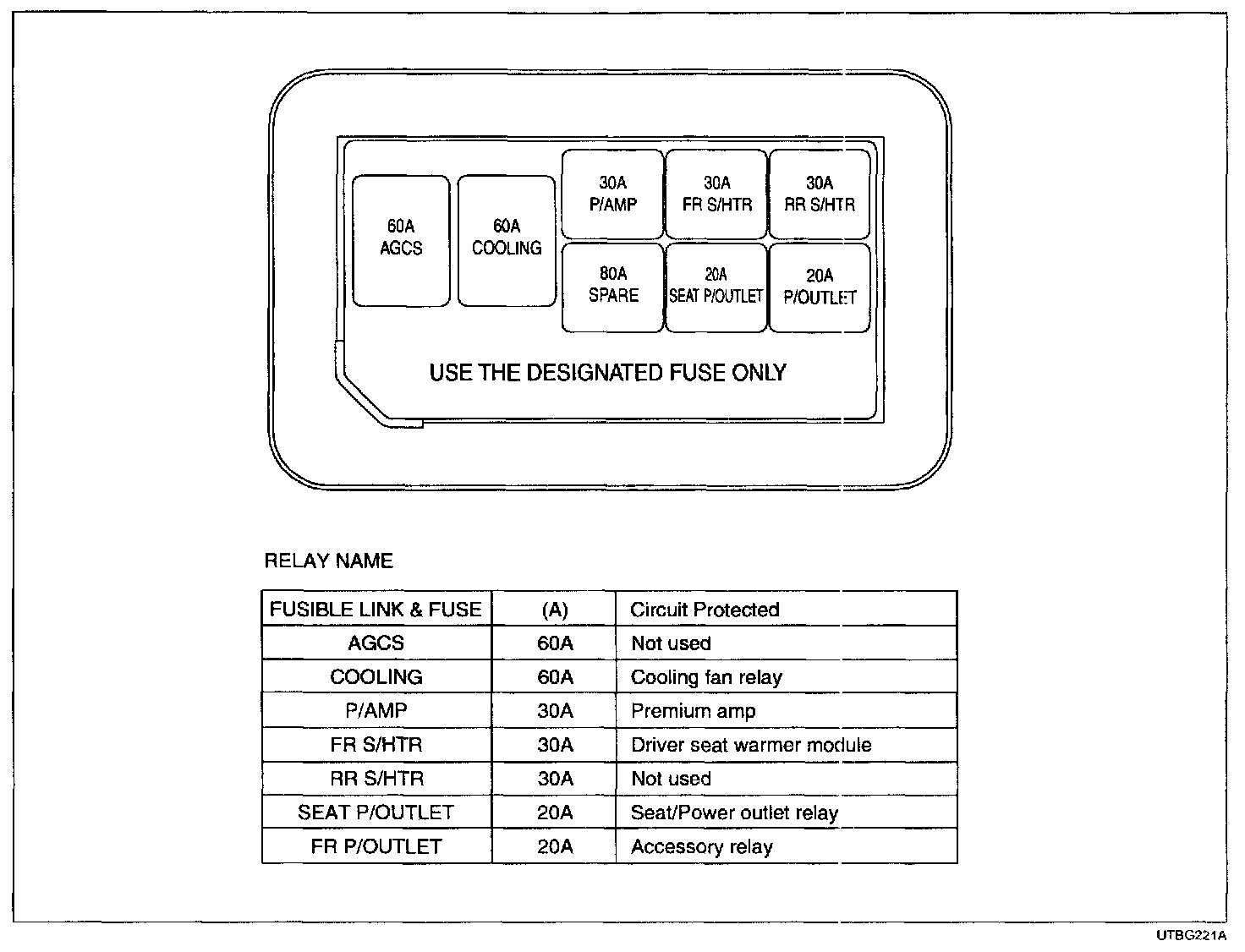

Relay Box (Engine Compartment) - Component Location:

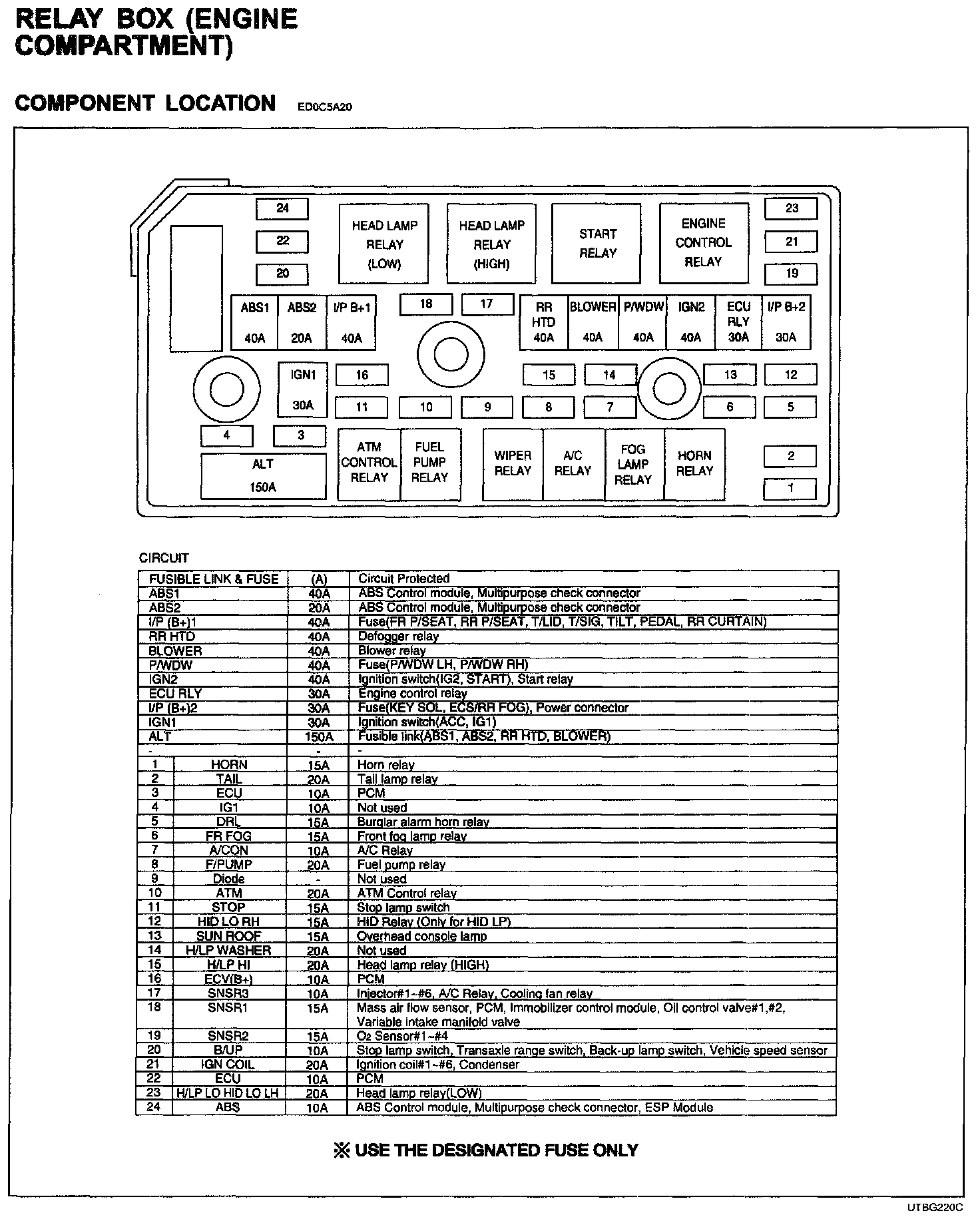

Relay Box (Engine Compartment) - Component Location (Part 2):
