Front Door Module Assembly Replacement

FRONT DOOR MODULE ASSEMBLY REPLACEMENT

1. Remove the following parts.
- Front door trim.
- Glass.
- Inside handle.
- Outside handle.

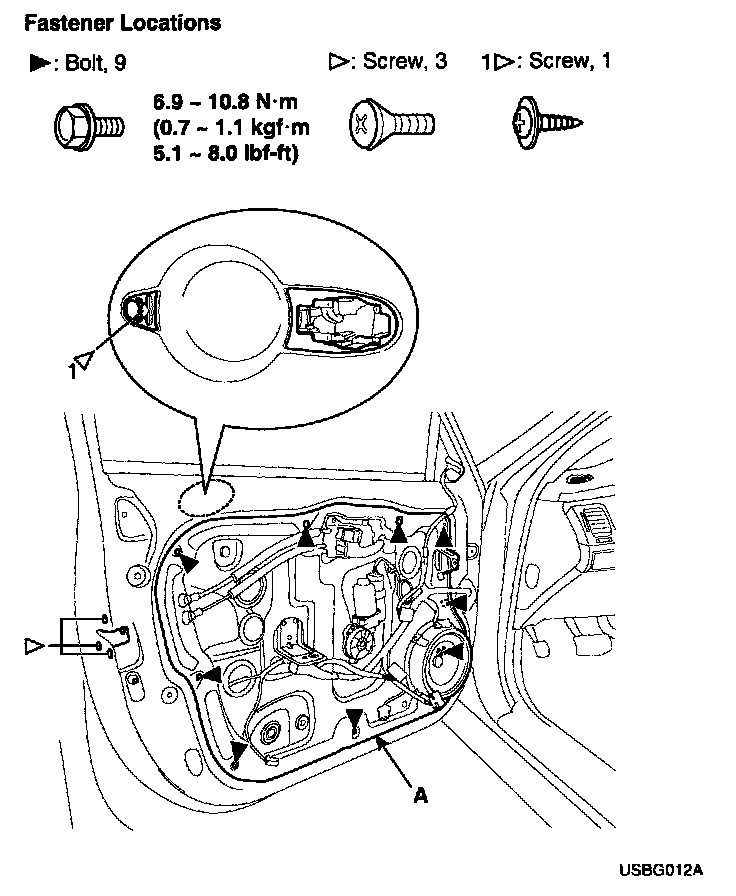

2. Loosen the door module mounting bolts, then remove the door module (A).

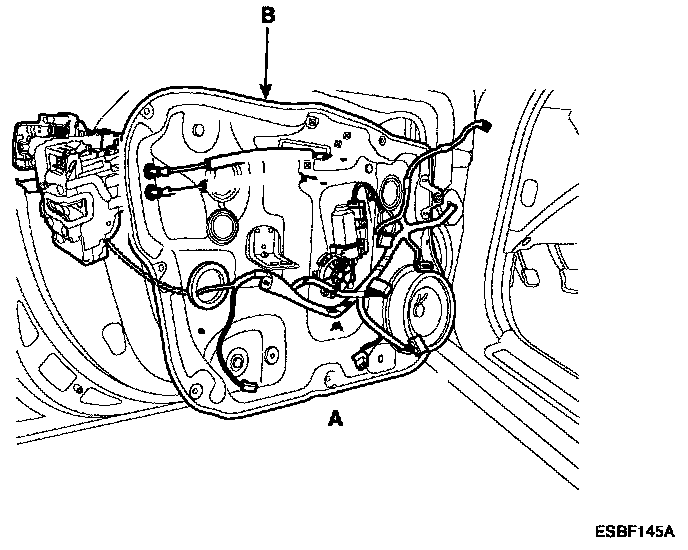

3. Disconnect the door module wiring harness (A), then remove the module assembly (B).






4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly and each cable is connected securely.
- Make sure the door lock and open properly.
