Engine Controls - Low Power/MIL ON/DTC P2138/P2127/P2122
Group: ENGINE ELECTRICALNumber: 07-36-006
Date: SEPTEMBER, 2007
Model:
SONATA AZERA
Subject:
CHECK ENGINE LIGHT P2138/P2127/P2122 DTC WITH P2106
DESCRIPTION:
Symptom/Condition:
Some 2006-2007 vehicles with 3.3L/3.8L gasoline engine may exhibit MIL illumination with any of the following DTC found stored:
^ P2138 - Pedal position sensor D/E correlation (difference between sensor D & E is too much error greater then 4.5%)
^ P2127 - Pedal position sensor D circuit low input
^ P2122 - Pedal position sensor E circuit low input
And the vehicle may have run at reduced power in "limp home mode" in the past and set the following DTC indicating such:
^ P2106 - ETC System Malfunction - Forced Limited Power
APPLICABILITY:
^ 2006-2007 NF Sonata with 3.3L Engine
^ 2006-2007 Azera
REPAIR:
Replace the Accelerator Pedal Sensor Assembly.
NOTE:
Do not replace ETC throttle body or PCM for the DTC P2106 as it is the result of the pedal sensor incident!
SERVICE PROCEDURE:
1. Inspect for the stored DTC with GDS and look for the existence of any of the following DTC for this bulletin to apply:
^ P2138 - Pedal position sensor D/E correlation
^ P2127 - Pedal position sensor D circuit low input
^ P2122 - Pedal position sensor E circuit low input

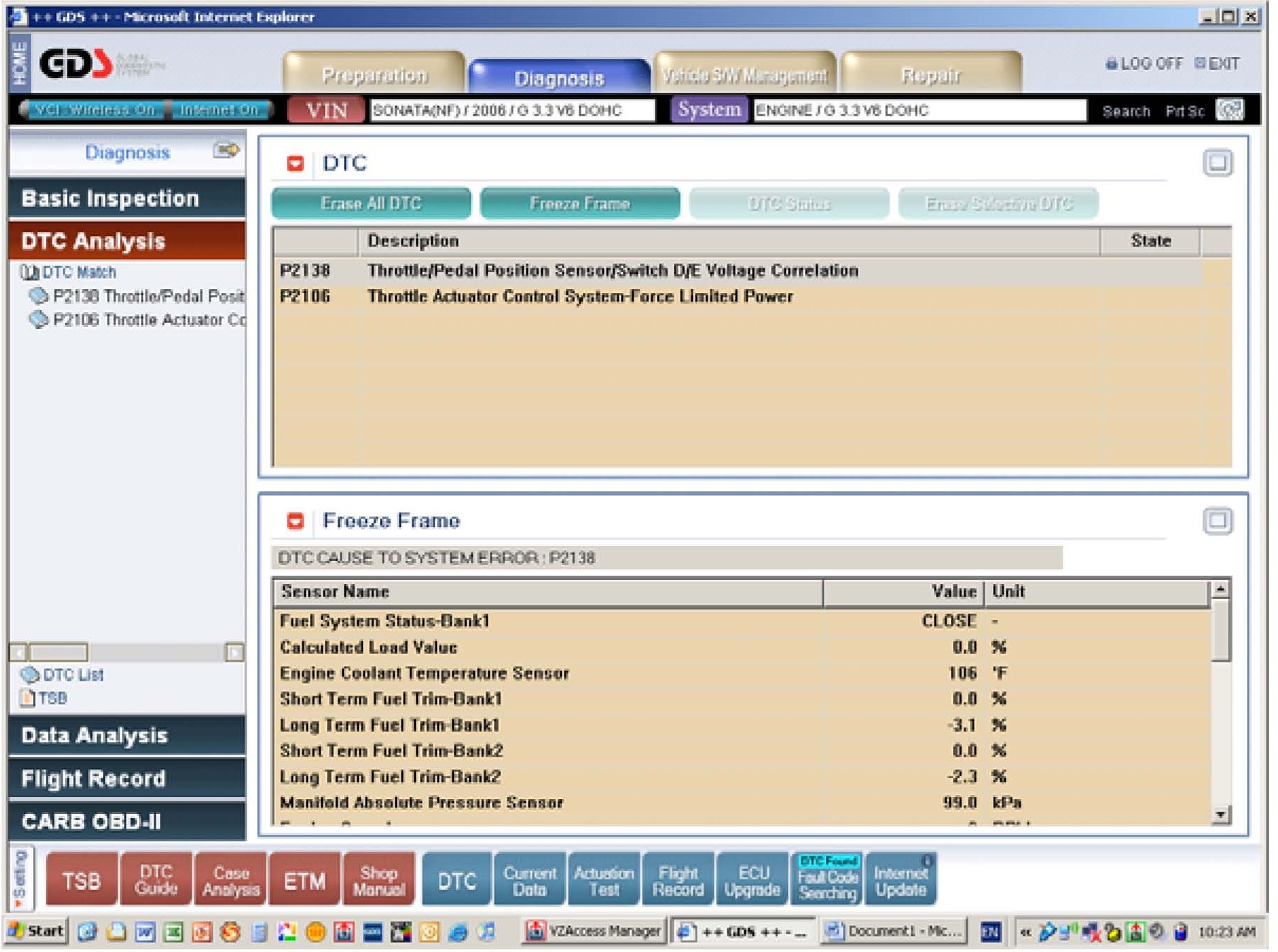

Example GDS DTC screen shown.
2. Replace the accelerator pedal assembly
3. Erase the DTC

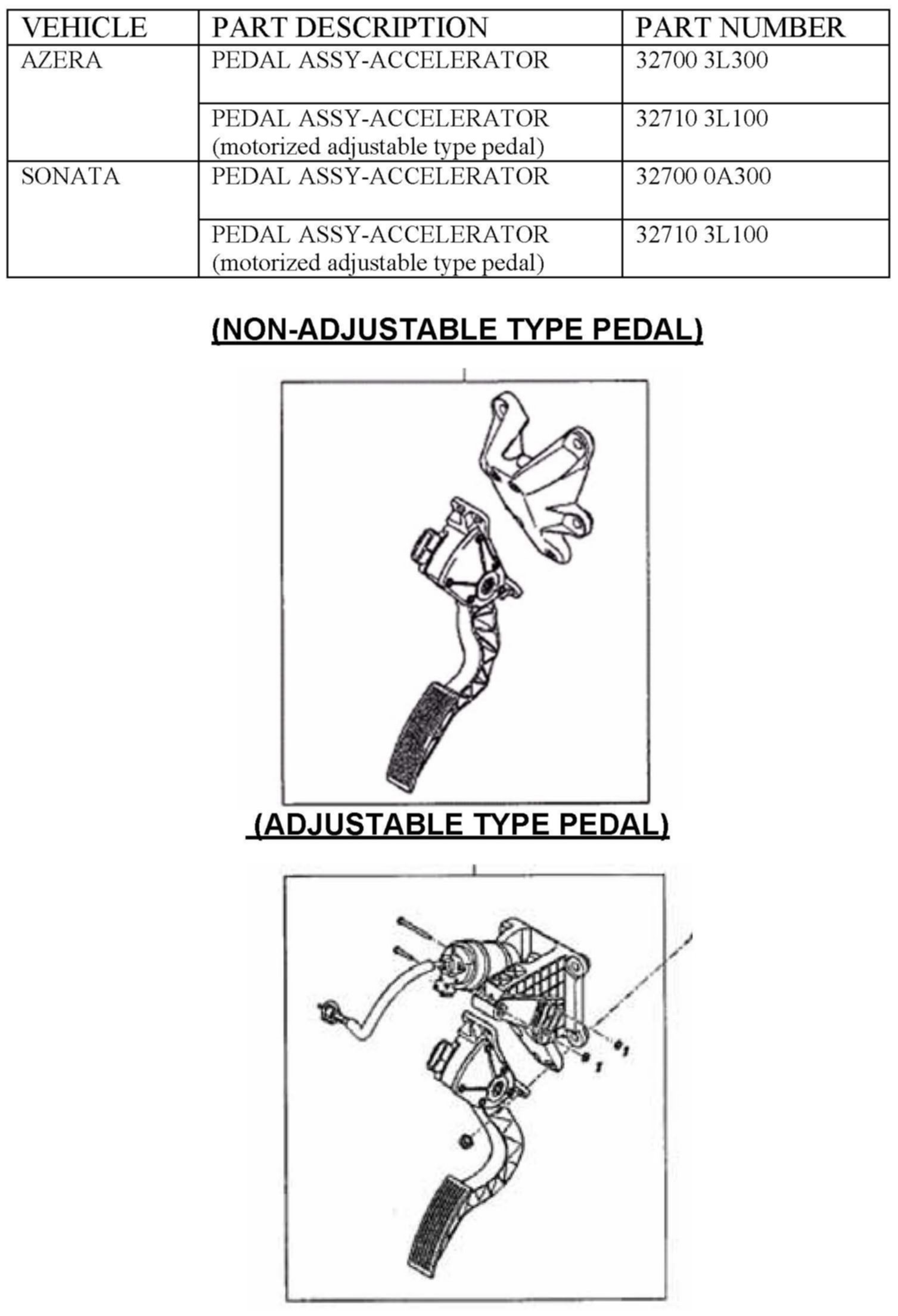

PARTS INFORMATION
WARRANTY INFORMATION
