Charging System: Alternator: Inspection: Stator

  1. Check that there is continuity between each pair of leads(A).

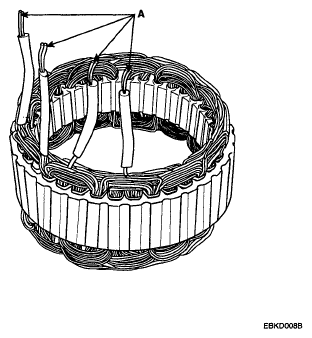

    Fig 1: Identifying Pair Of Leads
    G05363630Courtesy of HYUNDAI MOTOR CO.
  2. Check that there is no continuity between each lead and the coil core.
  3. If the coil fails either continuity check, replace the generator.
