Output Speed Sensor: Description

OUTPUT SPEED SENSOR DESCRIPTION

Sensor type
  1. Type : HALL SENSOR
  2. Output voltage : DC 12V
  3. Current consumption : 22mA (Max)
Function
  1. Output shaft speed sensor : Detect the output shaft rpm (T/F DRIVE GEAR RPM) at the T/F drive gear
  2. Feedback control, clutch-clutch control, damper clutch control, shift range control, incorrect ratio control and sensor trouble detection signal.
Connector

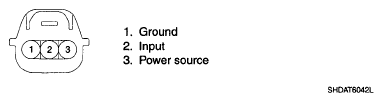

G05364274
Fig 1: Identifying Inside Structure Of Output Speed Sensor
G05348806
VOLTAGE AND RESISTANCE SPECIFICATION

Item Inspection item Standard value
Air gap Output shaft speed sensor 0.033in (0.85mm)
Sensor resistance Output shaft speed sensor Over 1 MΩ
Output voltage HIGH Over 4.8V
LOW Below 0.8V
