Output Speed Sensor: Installation

  1. Install the new O-ring to the output shaft speed sensor.
  2. Remove the output shaft speed sensor (A).

    TORQUE:

    10~12Nm (1.0~1.2kgf.m, 7~8lb-ft)

    CAUTION: While installing the output shaft speed sensor, do not allow dust or other foreign particles to enter the transaxle.

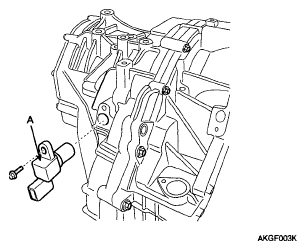

    Fig 1: Identifying Output Shaft Speed Sensor
    G05364277
  3. Check the connector for dust, dirt, or oil, then connect the output shaft speed sensor connector (A) securely.

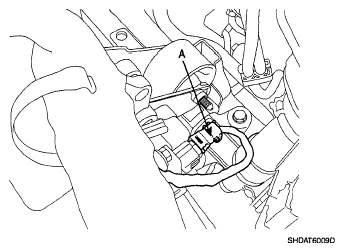

    Fig 2: Identifying Output Shaft Speed Sensor Connector
    G05364207
  4. Installation is the reverse of removal.
