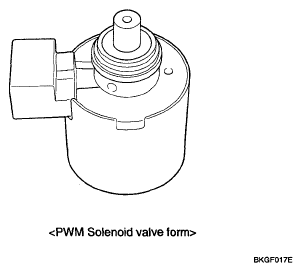

PWM (Pulse Width Modulation) Solenoid Valve Control Feature

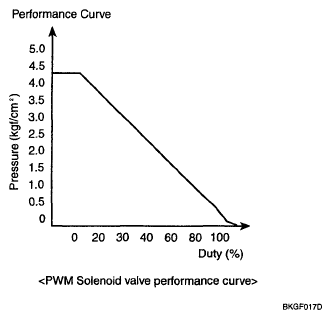

PWM solenoid valve is controlled linearly according to the duty ratio.
Oil pressure range: 0~4.3 kgf/cm2
(0~422kpa, 0~61.2psi)
VOLTAGE AND RESISTANCE SPECIFICATION
| Type |
3way & Normal High |
| Supply voltage |
12V |
| Coil resistance |
3.2±0.2Ω (at 25°C, 77°F) |
| Cycle |
50Hz |
