Transaxle Oil Temperature Sensor: Installation

Connect the main harness connector (A) to the valve body.
CAUTION: When connecting the oil temperature connector, check the connector for rust, dirt, or oil, then reconnect it.

Fig 1: Identifying Valve Body Main Harness Connector
Install the valve body (refer to Valve Body Reassembly in overhaul)
TORQUE:

10~12Nm (1.0~1.2kgf.m, 7~8lb-ft)
Install the oil filter.
TORQUE:

5~7Nm (0.5~0.7kgf.m, 4~5lb-ft)
Continue to apply liquid gasket at application points at the oil pan with 00.098in (2.5mm) thickness.
Liquid gasket Part name : Threebond 1281B

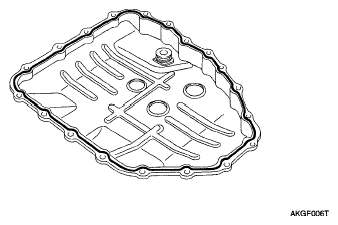

Fig 2: Identifying Liquid Gasket On Oil Pan
Tighten the mounting bolt with the specified TORQUE after installing the oil pan.
TORQUE:

10~12Nm (1.0~1.2kgf.m, 7~8lb-ft)
Install the drain plug.
TORQUE :

35~45Nm (3.5~4.5kgf.m, 25~32lb-ft)
Installation is the reverse of the removal.
