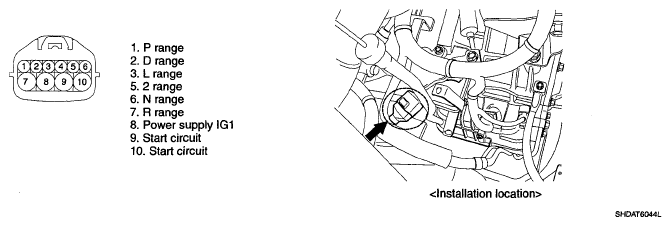

Transaxle Range (Tr) Switch: Description
TRANSAXLE RANGE SWITCH DESCRIPTION
| Sensor type |
- Type : ROTARY
- Available temperature range : -40~150°C (-40~320°F)
- TORQUE : 10~12Nm (1.0~1.2kgf.m, 7~8lb-ft)
|
| Function |

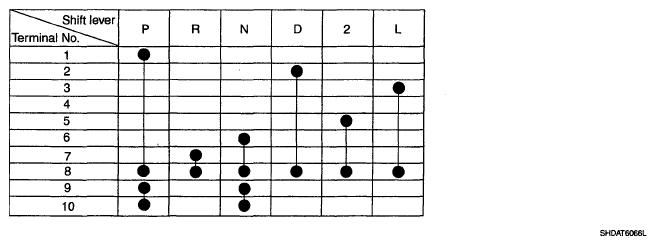

Detect the position of select lever through the contact switch. It makes starting possible in "P" and "N". |
