Immobilizer Control Unit: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel (A) after removing side cover. (Refer to the "CRASH PAD ").

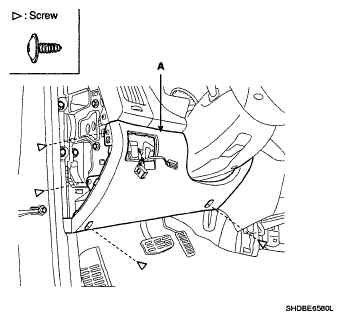

    Fig 1: Identifying Driver Crash Pad Lower Panel
    G05365666Courtesy of HYUNDAI MOTOR CO.
  3. Remove the driver crash pad reinforcing panel (A) after loosening 5 bolts.

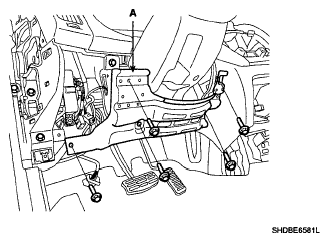

    Fig 2: Identifying Driver Crash Pad Reinforcing Panel
    G05365667Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut.
Fig 3: Identifying SMARTRA Unit
G05365668Courtesy of HYUNDAI MOTOR CO.
